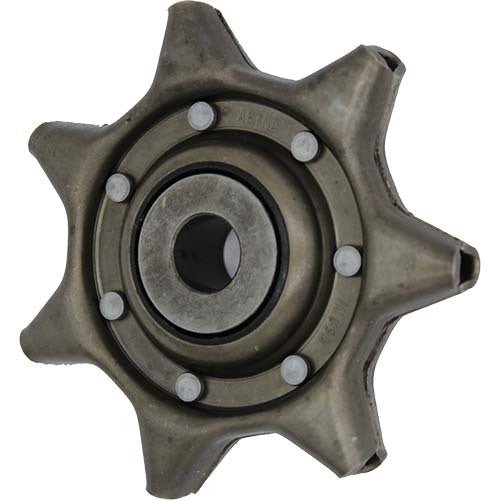

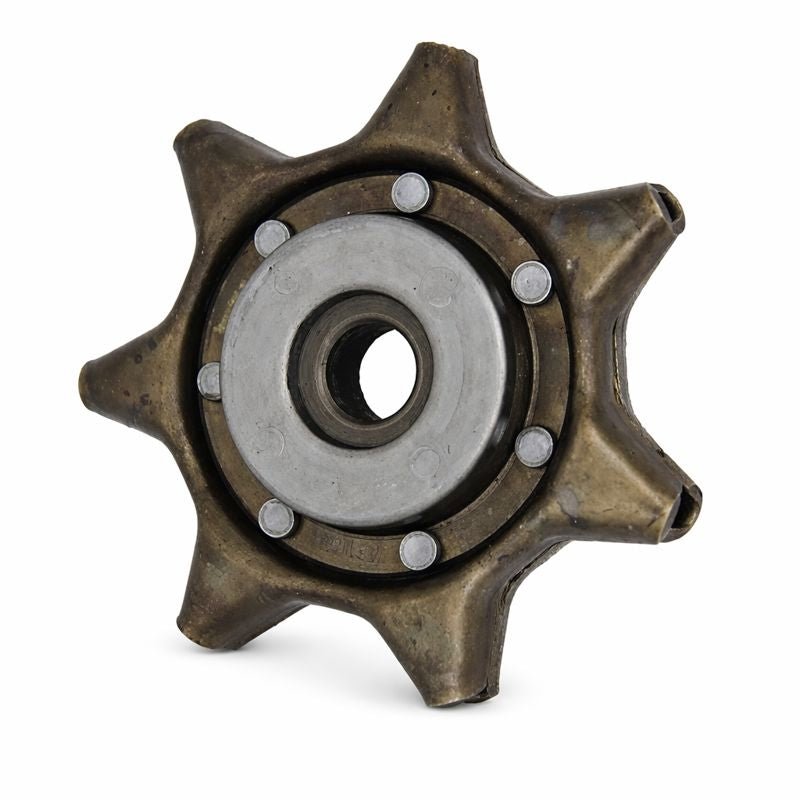

Aetna Detachable Link Chain Idler Sprocket AG2422
Available
Aetna idler sprockets designed for agricultural detachable link chain. The teeth are accurately contoured and hardened to resist wear and damage to the chain, and the idler is compact and easy to install on standard 1/2" or 5/8" bolts.
Aetna is a brand of Aetna Bearing Company, based in Livonia, Michigan, USA.
Where this product is used
- Agricultural machinery using detachable link chain
- Chain tensioning and guiding
- General workshop and maintenance replacement of worn chain idlers
Features
- Case-hardened teeth prolong chain and idler life
- Accurately contoured teeth cut from heavy gauge steel
- Oversize factory-packed lubricant chamber, so no relubrication is needed
- Hardened bearing races, with accurately formed outer and inner rings for smooth running
- Self-contouring, free-running, self-wiping seal that keeps positive contact when the idler is misaligned
- Full ball complement for durability
Key specifications
| Specification | Detail |
|---|---|
| Brand | Aetna |
| Product type | Detachable Link Chain Idler Sprocket |
| Chain number | 62,62H |
| Pitch | 1.654" (42.01mm) |
| Number of teeth | 7 |
| Outside diameter range | 4-29/64" |
| Nominal bore | 5/8" |
| Model codes | AG2422 and AG2422-1AF |
| Sizes | 2 |
Available sizes
| Model | SKU | Chain no. | Pitch, in (mm) | Teeth | Bore, in | OD, in (mm) | Weight |
|---|---|---|---|---|---|---|---|
| AG2422 | A0150896 | 62,62H | 1.654 (42.01) | 7 | 0.643 to 0.649 | 4-29/64 (113.109) | 1.43 lb (0.649kg) |
| AG2422-1AF | A0150897 | 62,62H | 1.654 (42.01) | 7 | 0.643 to 0.649 | 4-29/64 (113.109) | 1.43 lb (0.649kg) |
Fitting and use
Check the chain number and pitch of your chain against the specifications before ordering, and fit the idler on a bolt that matches the bore.
The bearing is sealed and lubricated at the factory. Keep water, grit and solvents away from the seals, and replace the idler if the bearing runs rough or noisy.
Choosing the right option
An idler sprocket must match the chain it runs on. Match the chain number and the pitch, then the number of teeth and the bore for the bolt or shaft it mounts on.
The model codes, chain numbers, pitches and dimensions for each size are in the sizes table.
Related idlers: Aetna 1-1/2" Pitch 8 Tooth Heavy Duty Double Pitch Idler Sprocket 5/8" Bore - AG2427, Aetna 1-1/2" Pitch 8 Tooth Heavy Duty Double Pitch Idler Sprocket 5/8" Bore - AG2427-AF, Aetna 1-1/2" Pitch 8 Tooth Heavy Duty Double Pitch Idler Sprocket 5/8" Bore - AG2427-1AF.
| Option | Part number | SKU |
|---|---|---|
| Inch/mm / Standard Bore | A0150896 | |
| Inch/mm / Flanged Bore - Type 1 | A0150897 |
