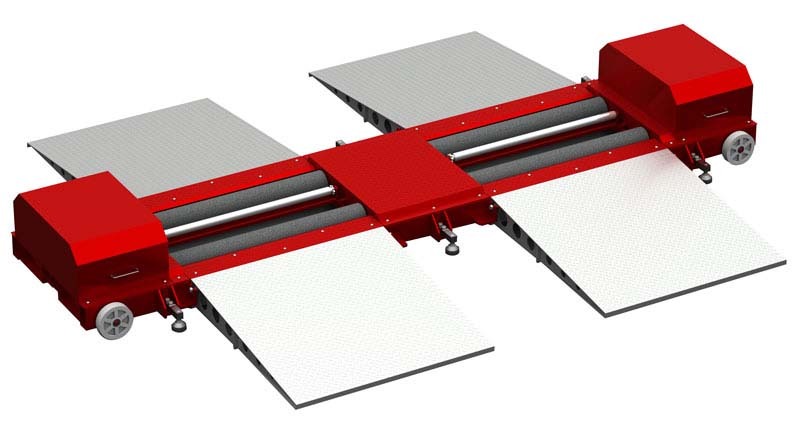

Alemlube Automotive 15T Mobile Commercial Roller Brake Tester

The Alemlube Automotive 15T Mobile Roller Brake Tester is a self-contained commercial vehicle brake testing rig, supplied with its own cabinet, computer, monitor and printer, built to Australian/New Zealand standard AS/NZ 4613-1999.

It measures weight, braking force, brake efficiency, brake imbalance and drag automatically per axle, with results saved to a database and displayed on either a standard digital or analogue read-out. Options extend the rig further: aluminium ramps, 4WD and reverse function, pedal force meter, shaker play detector, side slip tester, load simulation and a calibration kit.

Where this product is used

• Commercial vehicle brake testing and roadworthiness/compliance checks
• Workshops needing a mobile (rather than fixed in-ground) roller brake tester

Key specifications

• 15 tonne rated; built to AS/NZ 4613-1999
• Automatic per-axle weight, braking force, efficiency, imbalance and drag measurement
• Digital or analogue LCD read-out; results saved to database
• Supplied with cabinet, computer, monitor and printer
• Optional extras: aluminium ramps, 4WD/reverse function, pedal force meter, shaker play detector, side slip tester, load simulation, calibration kit
• 1 Year warranty
