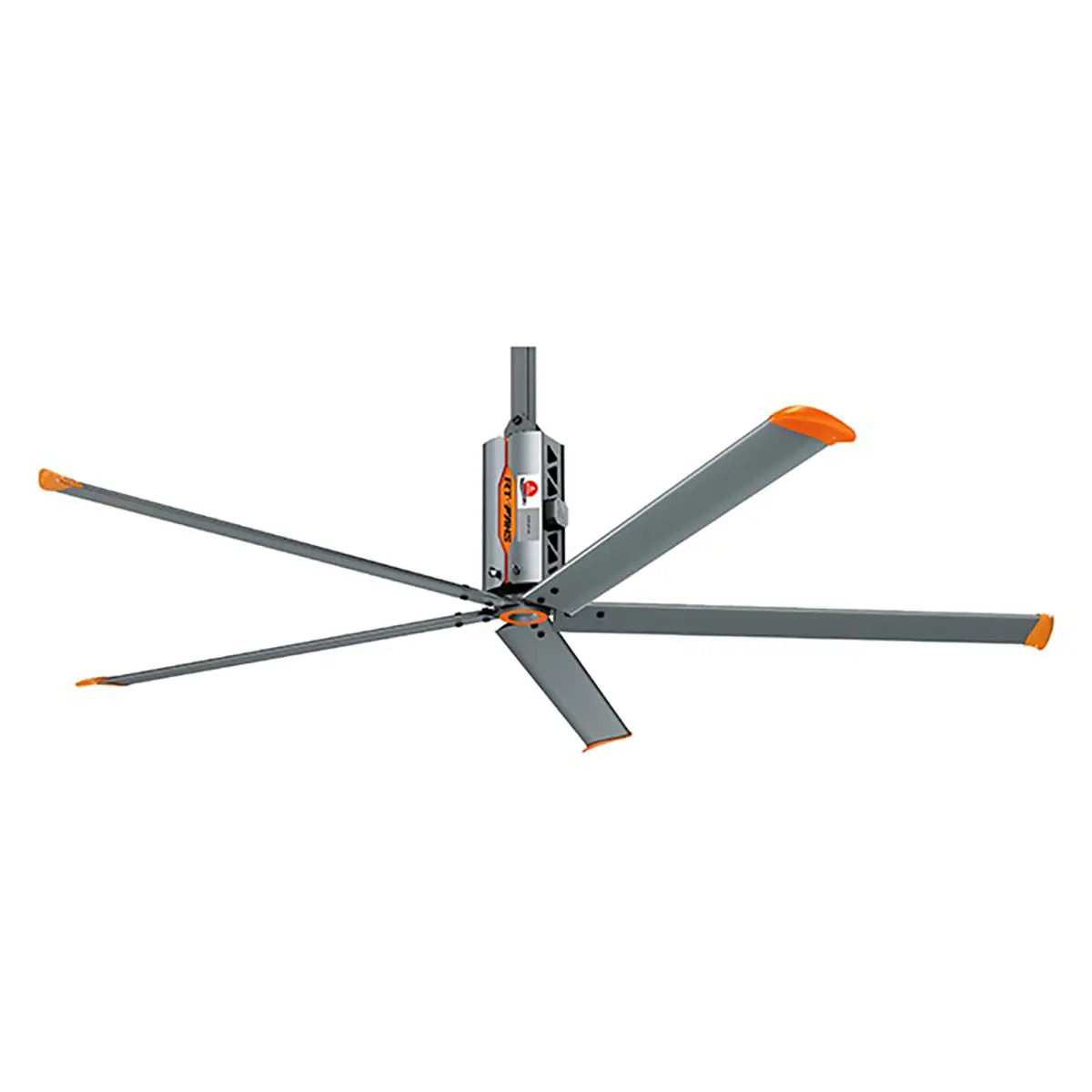

Alemlube Premium Workshop Ceiling Fan 4m Blade Diameter

$5,166.78

Inc. GST

Available

High-volume, low-speed (HVLS) industrial ceiling fans for workshops and warehouses, in blade diameters from 4m to 7.3m.

High-volume, low-speed (HVLS) industrial ceiling fans from 4m to 7.3m blade diameter.

Where this product is used

Vehicle workshops and other fume-generating industrial spaces needing sustained air movement
Large warehouse and shed floors where standard ceiling fans can't cover the area

Key specifications

Specification	Detail
Blade material	aircraft aluminium alloy, PVDF coated
Compliance	Australian and European CE standards

Product Highlights −

Choosing your fan

Match the blade size to the floor area and the power available. The AAP-SF-4E (4 m) runs on 240V single phase and suits areas up to about 450 m². The AAP-CF-5E, 6E and 7E (5.5 m, 6.1 m and 7.3 m) run on 415V three phase and cover roughly 1,050 m², 1,380 m² and 1,800 m² respectively. All models are designed for ceilings over 4 m high, and can be used singly for spot cooling or as a multi-fan system across a large floor.

Build, standards and installation

The blades are high-strength aircraft aluminium alloy with a PVDF coating and a patented air-foil, reinforcing-rib design. The range is compliant with Australian Standards and manufactured to European CE standards. Because the fans are ceiling-mounted and (on the CF models) 415V three phase, installation should be carried out by a suitably qualified person. Each fan is backed by an 18-month warranty.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Technical Data Sheet

Payment & Security

Secure Checkout. We do not store credit card details

Share:

Available Options:

4
Model Number: AAP-SF-4E
5.5
Model Number: AAP-CF-5E

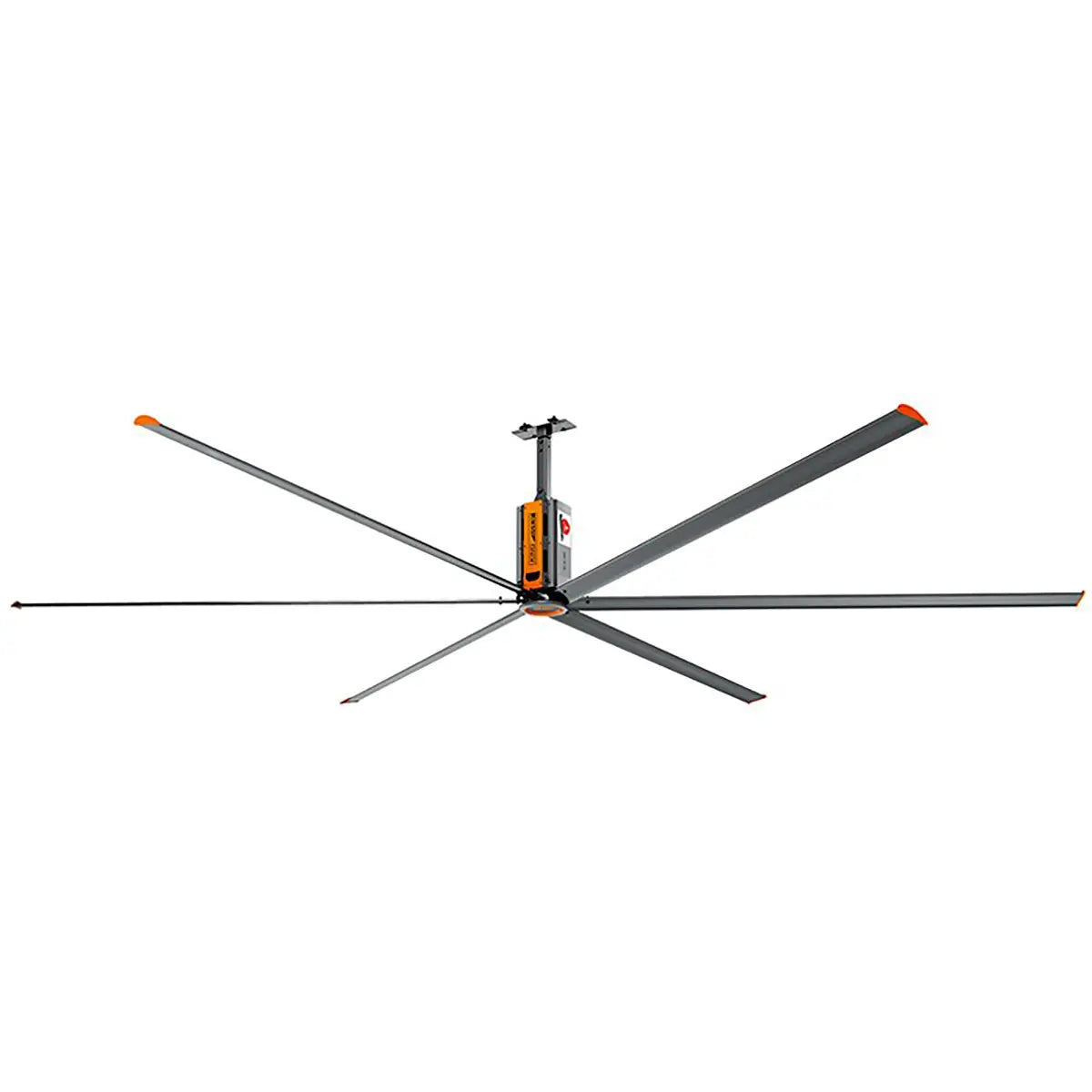

6.1
Model Number: AAP-CF-6E
7.3
Model Number: AAP-CF-7E
