M6 Allthread Rod, 316 Stainless Steel - ATRA480M6X1000

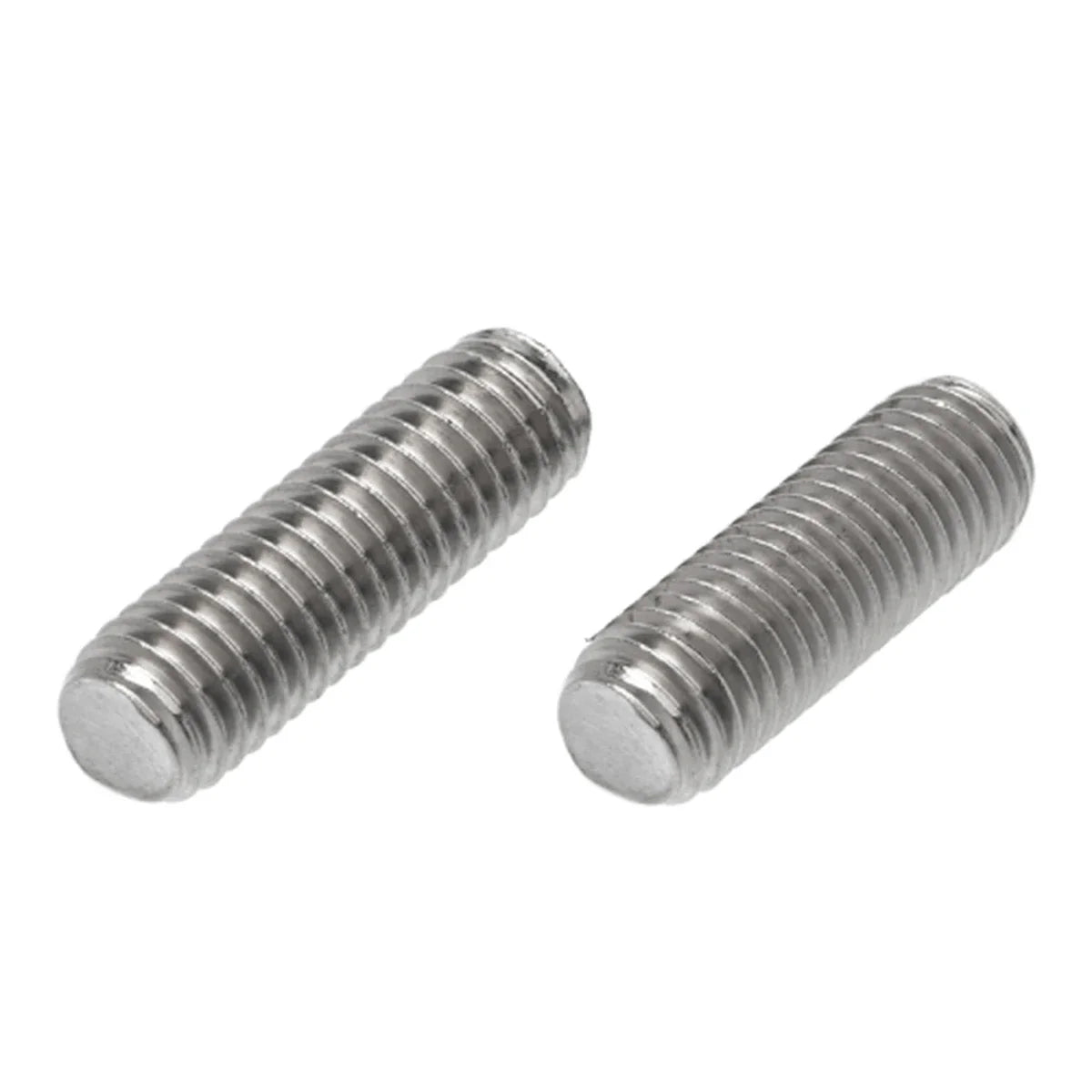

The Allthread Rod A4-80 High Tensile, 316 Stainless Steel is a straight rod threaded along its full length. It is cut to length and used with nuts and washers to hang, tie, clamp or span between two fixing points.

The range runs to 11 variants, covering sizes M6 to M36. Pack quantities depend on size: packs of 2 to 10.

Supplied in 316 (A4) stainless steel. The molybdenum in A4 gives better resistance to chlorides than A2 (304), so it is the usual choice near the coast, around pools and in marine and food-processing environments. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Larger sizes for frames, plant and structural fixings
• Threaded hangers and suspended fixtures
• Small sizes for enclosures, instruments and light fittings
• Outdoor and wet-area installations
• Tie rods and bracing in frames and fabrications
• Swimming pool and spa equipment

Features

• Choice of 11 sizes, M6 to M36
• Pack quantities to suit trade and bulk buying: packs of 2 to 10
• Threaded full length, so a nut can be run to any position
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Can be cut to length on site with a hacksaw or cut-off wheel
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

Key specifications

Selecting the right option

Match the thread system to the nuts and fittings you already have: metric coarse, metric fine, UNC and BSW rods are not interchangeable. Cut rods can leave a burr, so run a nut over the cut end before use. For indoor and general outdoor use where chlorides are not a concern, the A2 (304) version is the lower-cost option: Allthread Rod 304 Stainless Steel.

Related products

Also available: Allthread Rod 316 Stainless Steel and Allthread Rod BSW 304 Stainless Steel. Often used with: Metric Standard Hex Nut - 316 Stainless Steel, Metric Hex Coupling Nut - 316 Stainless Steel and Hex Inox Lock Nut A4 (316).
