Alpha PH2 collated autofeed bits, length (mm) 116
Available

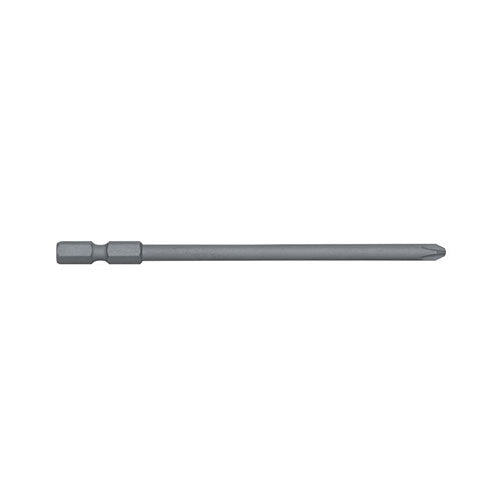

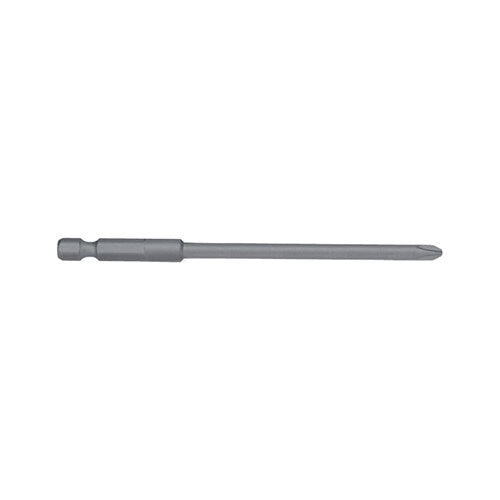

The Alpha Phillips collated bits are PH2 autofeed screwdriver bits in five lengths from 116mm to 152mm, each sold as a card of 4 against the autofeed screw gun it suits.
They are 1/4" extension bits with a reduced shank to suit autofeed drywall screw guns. Check your screw gun model against that list before ordering.
Where this product is used
- Driving drywall screws with an autofeed screw gun
- Plasterboard fixing in building and fit-out work
- Replacing the bit on a collated drywall screw system
Features
- PH2 Phillips point in five lengths, 116mm to 152mm
- 1/4" extension bits with a reduced shank for autofeed drywall screw guns
- Compression forged tip to reduce breakage
- Magnetism helps the bit grip the screw and prevent cam-out
- Card of 4
Key specifications
| Specification | Detail |
|---|---|
| Brand | Alpha |
| Point | Phillips PH2 |
| Overall lengths | 116mm, 117mm, 132mm, 146mm, 152mm |
| Body diameter | 4.75mm or 5mm, by length |
| Format | 1/4" autofeed bit, reduced shank |
| Pack | Card of 4 |
Choosing the right option
For a Descoutter collated bit see the Alpha Descoutter collated bit.
See also the: Alpha PH2 x 62mm Phillips Descoutter Collated Bit, Pack of 10, Alpha Phillips Power Bits, Carded, PH1 and PH2, 50mm to 150mm.
| Model | Overall length | Body diameter | Suits | Pack |
|---|---|---|---|---|

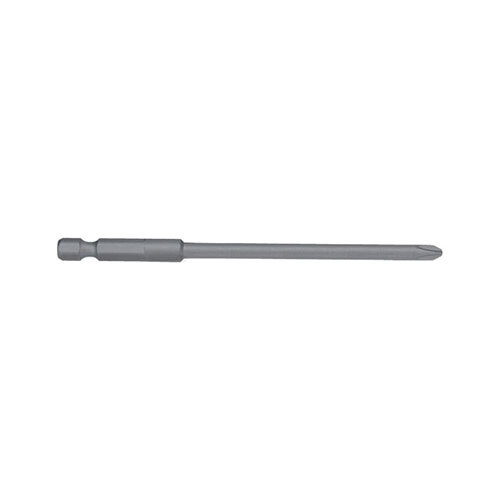

| CPH2116S | 116mm | 4.75mm | Hilti SMD57 | Card of 4 |
| CPH2117S | 117mm | 4.75mm | Makita 6831 | Card of 4 |
| CPH2132S | 132mm | 5mm | Makita DFR450, Makita 6835D, 6833 and 6836 | Card of 4 |

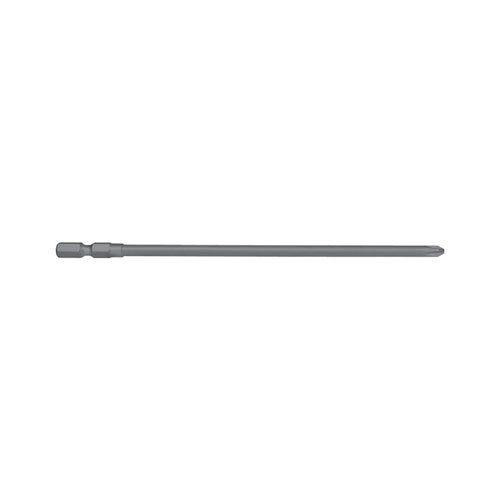

| CPH2146S | 146mm | 5mm | Makita 6834 | Card of 4 |
| CPH2152S | 152mm | 4.75mm | Makita 240 Volt, Hitachi W4YE and W4YF | Card of 4 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Alpha Phillips PH2 Collated Autofeed Bits, 116mm to 152mm, Card of 4: 116
SKU: A0147168 | Model: CPH2116S
Alpha CPH2116S: PH2 x 116mm Phillips collated autofeed bit, card of 4. Suits Hilti SMD57, 4.75mm body diameter.
