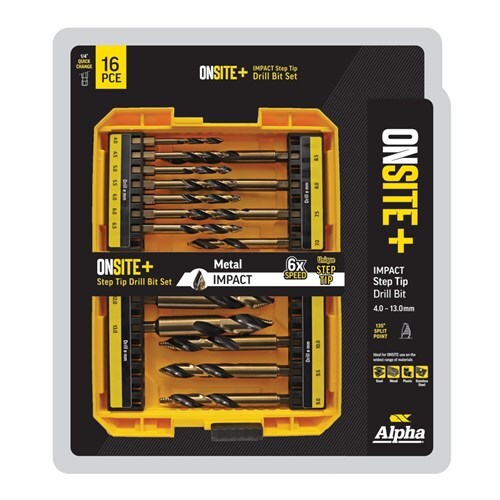

Alpha SM16ST 16 piece ONSITE Plus Impact Step Tip Drill Set

The Alpha SM16ST is a 16 piece set of ONSITE Plus impact step tip drill bits from 4.0mm to 13.0mm, with two 6.0mm bits. The bits are fully ground M2 HSS with a 135° split point and a 1/4" quick change shank (manufacturer-stated).

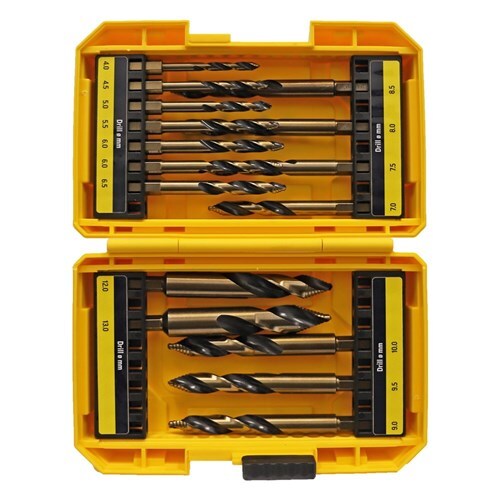

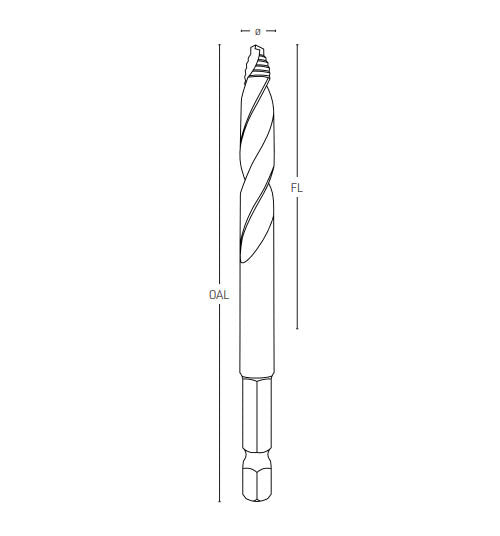

The sizes are 4.0, 4.5, 5.0, 5.5, 6.0 (two of them), 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 12.0 and 13.0mm. Alpha lists the same step tip bits as singles, with the overall length and flute length of each size in the catalogue.

Alpha states that the step tip design starts holes without a pilot hole and drills round, accurate holes without burring, and lists steel, wood, plastic and stainless steel as the materials. The maker page says the bits suit impact drivers.

Where this product is used

• Drilling steel, wood, plastic and stainless steel on site
• Drilling with an impact driver or a power drill
• A set for holes of 4.0mm and larger when the 3.0mm to 3.5mm sizes are not needed

Features

• 16 pieces from 4.0mm to 13.0mm, with two 6.0mm bits (manufacturer-stated)
• Fully ground M2 HSS (manufacturer-stated)
• 135° split point cuts faster and reduces wandering (manufacturer-stated)
• 1/4" quick change shank, suitable for impact drivers (manufacturer-stated)

Key specifications

Selecting the right option

The 16 piece set starts at 4.0mm. The 23 piece set adds the smaller 3.0mm to 3.5mm sizes and a few in-between sizes, and single sizes are in the ONSITE Plus step tip drill bits.

Related products

See also the 23 piece step tip drill set and the single ONSITE Plus step tip drill bits.
