Description
Description
Descriptions
- Steel roller chain sprocket with Induction Hardened Teeth for reduced tooth wear and longer sprocket life.
- Sprocket is Pilot Bore and will require machining to suit your application.
Specifications
Specifications
Specifications
- Material: Steel
- Standard: American Standards Association ASA50
- Pitch: 5/8" (15.89mm)
- Teeth: 13
- Pitch Diameter: 90 mm
- Boss Diameter: 49 mm
- Pilot Bore Diameter: 16 mm
- Total Sprocket Width: 40 mm
- Outside Diameter: 73.2 mm
- Weight (Approx.): 0.67 Kg
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

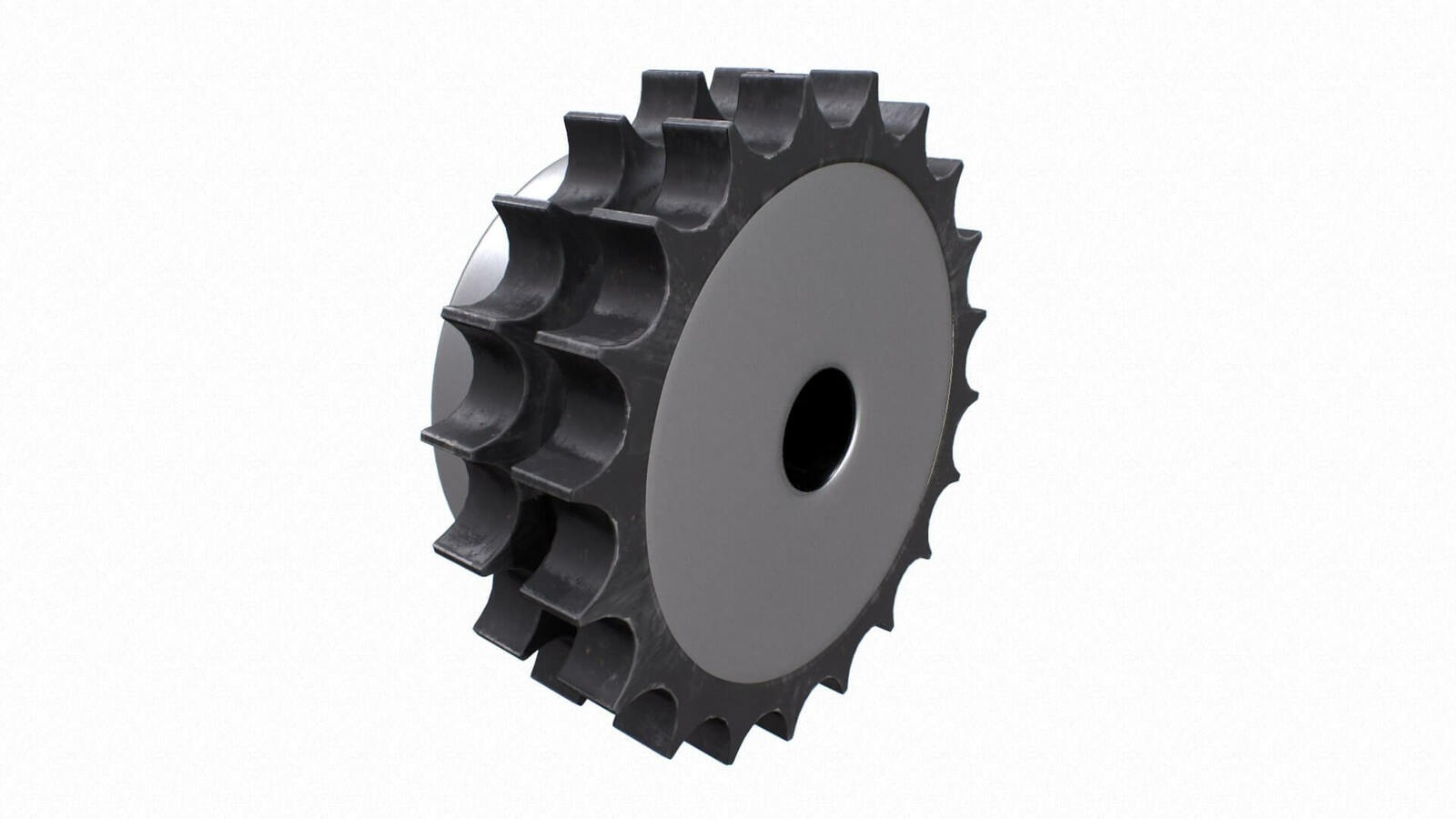

American (ASA) Pilot Bore Sprocket - Duplex Strand - Steel
American (ASA) Pilot Bore Sprocket - Duplex Strand - Steel
SKU: A0062195
Type: Pilot Bore Sprocket
- Wide Range
- Reliable Services
- Proven Trust
Available
The American (ASA) Pilot Bore Sprocket is made from steel and features induction hardened teeth. With a pitch of 5/8" (15.89mm) and 13 teeth, it requires machining to fit specific applications.
