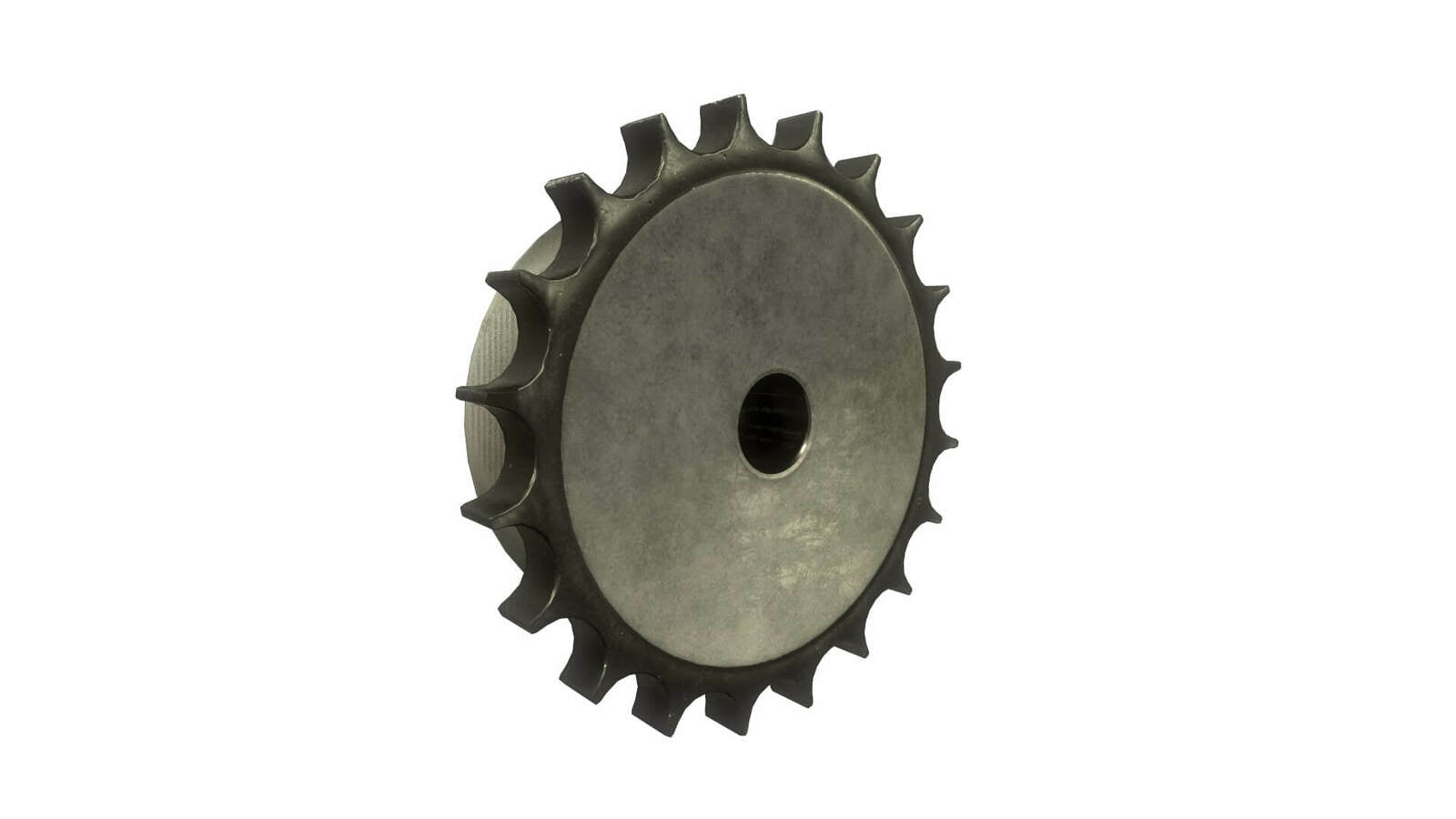

American (ASA) Pilot Bore Sprocket - Simplex Strand - Steel
American (ASA) Pilot Bore Sprocket - Simplex Strand - Steel

Finer Power ASA Pilot Bore Sprocket, 25 / 10

$11.48
$11.48
Inc. GST

Available

These steel simplex pilot bore sprockets suit ASA (ANSI) simplex roller chain. The range covers 7 chain sizes, 25, 35, 40, 60, 80, 100 and 120, with 8 to 76 teeth.

Each sprocket has a pilot bore, which is a starter hole that you machine out to your shaft size and cut a keyway in. Dimensions come in each model where available.

Where this product is used

  • Roller chain drives using ASA (ANSI) chain
  • Replacement sprockets for existing chain drives
  • Conveyors and general machinery drives

Features

  • Pilot bore hub, machined by you to suit your shaft
  • Simplex sprocket for ASA (ANSI) roller chain
  • 7 chain sizes, 8 to 76 teeth
  • Steel construction
  • Induction hardened teeth
  • Hub, pilot bore and width where available

Key specifications

Specification Detail
Product Pilot bore sprocket
Standard ASA (ANSI)
Strands Simplex
Material Steel
Tooth hardening Induction hardened
Chain sizes 25 to 120 (7 sizes)
Number of teeth 8 to 76
Bore Pilot bore, machine to suit

Sizes available

Chain Pitch Strands Teeth Models
ASA 25 1/4" (6.35mm) Simplex 9 to 76 28
ASA 35 3/8" (9.53mm) Simplex 9 to 60 26
ASA 40 1/2" (12.7mm) Simplex 9 to 60 31
ASA 60 3/4" (19.05mm) Simplex 9 to 40 26
ASA 80 1" (25.4mm) Simplex 8 to 38 24
ASA 100 1-1/4" (31.75mm) Simplex 9 to 38 23
ASA 120 1-1/2" (38.1mm) Simplex 9 to 38 23

Choosing the right option

Choose the sprocket by chain size and number of teeth. The chain size must match your chain, and the tooth count sets the speed ratio. Check that the pilot bore can be bored to your shaft diameter with a keyway and set screw within the hub diameter.

Dimensions are for reference.

Option Part number SKU
25 / 9 25-1-09PB A0062116
25 / 10 25-1-10PB A0062089
25 / 11 25-1-11PB A0062090
25 / 12 25-1-12PB A0062091
25 / 13 25-1-13PB A0062092
25 / 14 25-1-14PB A0062093
25 / 15 25-1-15PB A0062094
25 / 16 25-1-16PB A0062095
25 / 17 25-1-17PB A0062096
25 / 18 25-1-18PB A0062097
25 / 19 25-1-19PB A0062098
25 / 20 25-1-20PB A0062099
25 / 21 25-1-21PB A0062100
25 / 22 25-1-22PB A0062101
25 / 23 25-1-23PB A0062102
25 / 24 25-1-24PB A0062103
25 / 25 25-1-25PB A0062104
25 / 26 25-1-26PB A0062105
25 / 27 25-1-27PB A0062106
25 / 28 25-1-28PB A0062107
25 / 29 25-1-29PB A0062108
25 / 30 25-1-30PB A0062109
25 / 35 25-1-35PB A0062110
25 / 38 25-1-38PB A0062111
25 / 45 25-1-45PB A0062112
25 / 50 25-1-50PB A0062113
25 / 57 25-1-57PB A0062114
25 / 76 25-1-76PB A0062115
35 / 9 35-1-09PB A0062142
35 / 10 35-1-10PB A0062117
35 / 11 35-1-11PB A0062118
35 / 12 35-1-12PB A0062119
35 / 13 35-1-13PB A0062120
35 / 14 35-1-14PB A0062121
35 / 15 35-1-15PB A0062122
35 / 16 35-1-16PB A0062123
35 / 17 35-1-17PB A0062124
35 / 18 35-1-18PB A0062125
35 / 19 35-1-19PB A0062126
35 / 20 35-1-20PB A0062127
35 / 21 35-1-21PB A0062128
35 / 22 35-1-22PB A0062129
35 / 23 35-1-23PB A0062130
35 / 24 35-1-24PB A0062131
35 / 25 35-1-25PB A0062132
35 / 26 35-1-26PB A0062133
35 / 27 35-1-27PB A0062134
35 / 28 35-1-28PB A0062135
35 / 29 35-1-29PB A0062136
35 / 30 35-1-30PB A0062137
35 / 38 35-1-38PB A0062138
35 / 40 35-1-40PB A0062139
35 / 57 35-1-57PB A0062140
35 / 60 35-1-60PB A0062141
40 / 9 40-1-09PB A0062178
40 / 10 40-1-10PB A0062143
40 / 11 40-1-11PB A0062144
40 / 12 40-1-12PB A0062145
40 / 13 40-1-13PB A0062146
40 / 14 40-1-14PB A0062147
40 / 15 40-1-15PB A0062148
40 / 16 40-1-16PB A0062149
40 / 17 40-1-17PB A0062150
40 / 18 40-1-18PB A0062151
40 / 19 40-1-19PB A0062152
40 / 20 40-1-20PB A0062157
40 / 21 40-1-21PB A0062158
40 / 22 40-1-22PB A0062159
40 / 23 40-1-23PB A0062160
40 / 24 40-1-24PB A0062161
40 / 25 40-1-25PB A0062162
40 / 26 40-1-26PB A0062163
40 / 27 40-1-27PB A0062164
40 / 28 40-1-28PB A0062165
40 / 29 40-1-29PB A0062166
40 / 30 40-1-30PB A0062168
40 / 32 40-1-32PB A0062169
40 / 35 40-1-35PB A0062170
40 / 38 40-1-38PB A0062171
40 / 40 40-1-40PB A0062172
40 / 42 40-1-42PB A0062173
40 / 50 40-1-50PB A0062174
40 / 55 40-1-55PB A0062175
40 / 57 40-1-57PB A0062176
40 / 60 40-1-60PB A0062177
60 / 9 60-1-09PB A0062213
60 / 10 60-1-10PB A0062185
60 / 11 60-1-11PB A0062186
60 / 12 60-1-12PB A0062187
60 / 13 60-1-13PB A0062188
60 / 14 60-1-14PB A0062189
60 / 15 60-1-15PB A0062190
60 / 16 60-1-16PB A0062191
60 / 17 60-1-17PB A0062192
60 / 18 60-1-18PB A0062193
60 / 19 60-1-19PB A0062194
60 / 20 60-1-20PB A0062198
60 / 21 60-1-21PB A0062199
60 / 22 60-1-22PB A0062200
60 / 23 60-1-23PB A0062201
60 / 24 60-1-24PB A0062202
60 / 25 60-1-25PB A0062203
60 / 26 60-1-26PB A0062204
60 / 27 60-1-27PB A0062205
60 / 28 60-1-28PB A0062206
60 / 29 60-1-29PB A0062207
60 / 30 60-1-30PB A0062208
60 / 32 60-1-32PB A0062209
60 / 34 60-1-34PB A0062210
60 / 38 60-1-38PB A0062211
60 / 40 60-1-40PB A0062212
80 / 8 80-1-08PB A0062214
80 / 9 80-1-09PB A0062237
80 / 10 80-1-10PB A0062215
80 / 11 80-1-11PB A0062216
80 / 12 80-1-12PB A0062217
80 / 13 80-1-13PB A0062218
80 / 14 80-1-14PB A0062219
80 / 15 80-1-15PB A0062220
80 / 16 80-1-16PB A0062221
80 / 17 80-1-17PB A0062222
80 / 18 80-1-18PB A0062223
80 / 19 80-1-19PB A0062224
80 / 20 80-1-20PB A0062225
80 / 21 80-1-21PB A0062226
80 / 22 80-1-22PB A0062227
80 / 23 80-1-23PB A0062228
80 / 24 80-1-24PB A0062229
80 / 25 80-1-25PB A0062230
80 / 26 80-1-26PB A0062231
80 / 27 80-1-27PB A0062232
80 / 28 80-1-28PB A0062233
80 / 29 80-1-29PB A0062234
80 / 30 80-1-30PB A0062235
80 / 38 80-1-38PB A0062236
100 / 9 100-1-09PB A0062043
100 / 10 100-1-10PB A0062044
100 / 11 100-1-11PB A0062045
100 / 12 100-1-12PB A0062046
100 / 13 100-1-13PB A0062047
100 / 14 100-1-14PB A0062048
100 / 15 100-1-15PB A0062049
100 / 16 100-1-16PB A0062050
100 / 17 100-1-17PB A0062051
100 / 18 100-1-18PB A0062052
100 / 19 100-1-19PB A0062053
100 / 20 100-1-20PB A0062054
100 / 21 100-1-21PB A0062055
100 / 22 100-1-22PB A0062056
100 / 23 100-1-23PB A0062057
100 / 24 100-1-24PB A0062058
100 / 25 100-1-25PB A0062059
100 / 26 100-1-26PB A0062060
100 / 27 100-1-27PB A0062061
100 / 28 100-1-28PB A0062062
100 / 29 100-1-29PB A0062063
100 / 30 100-1-30PB A0062064
100 / 38 100-1-38PB A0062065
120 / 9 120-1-09PB A0062066
120 / 10 120-1-10PB A0062067
120 / 11 120-1-11PB A0062068
120 / 12 120-1-12PB A0062069
120 / 13 120-1-13PB A0062070
120 / 14 120-1-14PB A0062071
120 / 15 120-1-15PB A0062072
120 / 16 120-1-16PB A0062073
120 / 17 120-1-17PB A0062074
120 / 18 120-1-18PB A0062075
120 / 19 120-1-19PB A0062076
120 / 20 120-1-20PB A0062077
120 / 21 120-1-21PB A0062078
120 / 22 120-1-22PB A0062079
120 / 23 120-1-23PB A0062080
120 / 24 120-1-24PB A0062081
120 / 25 120-1-25PB A0062082
120 / 26 120-1-26PB A0062083
120 / 27 120-1-27PB A0062084
120 / 28 120-1-28PB A0062085
120 / 29 120-1-29PB A0062086
120 / 30 120-1-30PB A0062087
120 / 38 120-1-38PB A0062088
Product Highlights −

These steel simplex pilot bore sprockets suit ASA (ANSI) simplex roller chain. The range covers 7 chain sizes, 25, 35, 40, 60, 80, 100 and 120, with 8 to 76 teeth.

Each sprocket has a pilot bore, which is a starter hole that you machine out to your shaft size and cut a keyway in. Dimensions come in each model where available.

Resources

File icon
Finer-Power-Sprockets-Catalogue
Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

ASA Pilot Bore Sprocket, Simplex, Steel, 25 to 120: 25 / 10

SKU: A0062089 | Model: 25-1-10PB

Finer Power 25-1-10PB: ASA Pilot Bore Sprocket, 25 / 10. Material: Steel. Standard: ASA (ANSI).
