Description
Description

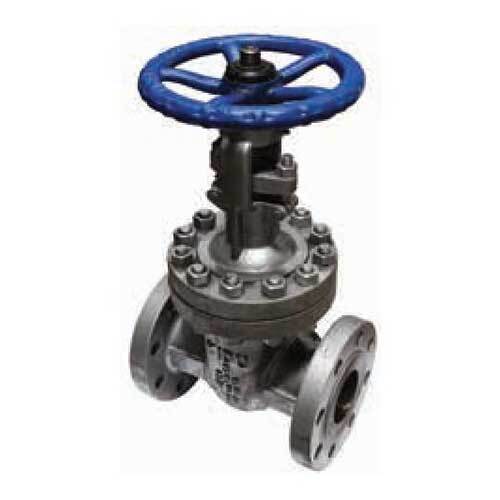

Cast Steel Flanged Gate Valve ANSI 150 & 300
Materials
PART
MATERIAL
Body
ASTM A216 WCB
Seat Ring
ASTM + H/F Stellite
Wedge
ASTM A216 WCB+13Cr
Stem
ASTM A276 T410
Bonnet Gasket
13Cr+Graphite
Bonnet
ASTM A216 WCB
Back Seat Bushing
ASTM A276 T410
Packing
Graphite
Packing Gland
ASTM A276 T410
Gland Follower
ASTM A216 WCB
Oil Cup
Brass
Stem Nut Bushing
Carbon Steel
Hand wheel
ASTM A536
Specifications
Specifications
Specification
Flange Dimensions
ANSI B16.5
MAX Working Temperature
Class 150
300°C
Class 300
440°C
Cold Working Pressure
Class 150
1960kPa
Class 300
5100kPa
Applications
Applications
Applications - Petrochemical, Refinery, Chemical, Pharmaceutical Power
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
APP Cast Steel Flanged Gate Valve Reducing Bore
APP Cast Steel Flanged Gate Valve Reducing Bore
SKU: A0081108
Type: Cast Steel Gate Valve
- Wide Range
- Reliable Services
- Proven Trust
Available
The APP Cast Steel Flanged Gate Valve Reducing Bore by AAP is a Cast Steel Gate Valve made of ASTM A216 WCB. It provides 5100kPa and is suitable for Petrochemical.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Cast Steel Flanged Gate Valve ANSI 150 & 300
Materials
PART
MATERIAL
Body
ASTM A216 WCB
Seat Ring
ASTM + H/F Stellite
Wedge
ASTM A216 WCB+13Cr
Stem
ASTM A276 T410
Bonnet Gasket
13Cr+Graphite
Bonnet
ASTM A216 WCB
Back Seat Bushing
ASTM A276 T410
Packing
Graphite
Packing Gland
ASTM A276 T410
Gland Follower
ASTM A216 WCB
Oil Cup
Brass
Stem Nut Bushing
Carbon Steel
Hand wheel
ASTM A536
Specifications
Specifications
Specification
Flange Dimensions
ANSI B16.5
MAX Working Temperature
Class 150
300°C
Class 300
440°C
Cold Working Pressure
Class 150
1960kPa
Class 300
5100kPa
Applications
Applications
Applications - Petrochemical, Refinery, Chemical, Pharmaceutical Power
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
APP Cast Steel Flanged Gate Valve Reducing Bore
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The APP Cast Steel Flanged Gate Valve Reducing Bore by AAP is a Cast Steel Gate Valve made of ASTM A216 WCB. It provides 5100kPa and is suitable for Petrochemical. |
Regular price
From $425.74
Sale price
From $425.74
Regular price
Unit price
/per
| AAP | Cast Steel Gate Valve |
Pipe Size (inch)
2,2-1/2,3,4,6,8
Pipe Size (mm)
50,65,80,100,150,200
|
Choose your option
APP Cast Steel Flanged Gate Valve Reducing Bore
APP Cast Steel Flanged Gate Valve Reducing Bore
SKU: A0081108
Type: Cast Steel Gate Valve
Hurry up, only 16 items left in stock.
The APP Cast Steel Flanged Gate Valve Reducing Bore by AAP is a Cast Steel Gate Valve made of ASTM A216 WCB. It provides 5100kPa and is suitable for Petrochemical.
