Description
Description
APP Flange Reducing Tee Galvanised
Material Speci?cations
Galvanised Flanged Irrigation Fittings
WALL THICKNESS FOR FITTINGS
3" - 80mm
4" - 100mm
5" - 125mm
6" - 150mm
8" - 200mm
10" - 250mm
12" - 300mm
14" - 350mm
16" - 400mm
18" - 450mm
GENERAL PURPOSE - SGP
4.2mm
4.5mm
4.5mm
5.0mm
5.8mm
-
-
-
-
-
HEAVY DUTY - STD WGT
5.5mm
6.0mm
6.5mm
7.1mm
8.1mm
9.3mm
9.5mm
9.5mm
9.5mm
9.5mm
FLANGE - TAB D
12mm
12mm
13mm
13mm
13mm
16mm
19mm
22mm
22mm
25mm
TABLE D FLANGE BOLTING DETAILS
NUMBER OF HOLES
4
4
8
8
8
8
12
12
12
12
DIAMETER OF BOLT HOLES
18mm
18mm
18mm
18mm
18mm
22mm
22mm
26mm
26mm
26mm
FIXED FLANGE FASTENER SIZE & THREAD
M16 x 45
M16 x 45
M16 x 45
M16 x 45
M16 x 50
M20 x 50
M20 x 50
M24 x 60
M24 x 60
M24 x 75
LOOSE FLANGE FASTENER SIZE & THREAD
M16 x 60
M16 x 60
M16 x 60
M16 x 60
M16 x 65
M20 x 65
M20 x 65
M24 x 80
M24 x 80
M24 x 100
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

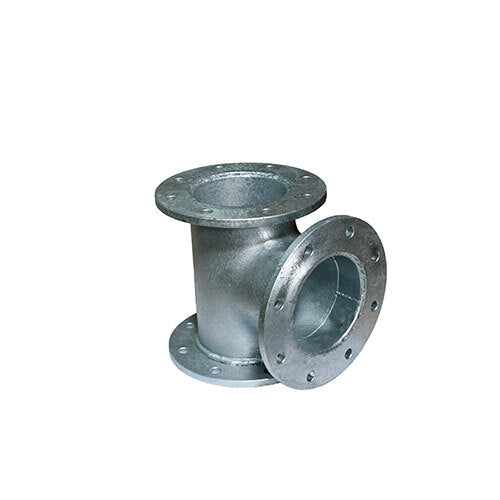

APP Flange Reducing Tee
APP Flange Reducing Tee
SKU: A0078022
Type: Flanged Reducing Tee
- Wide Range
- Reliable Services
- Proven Trust
Available
The APP Flange Reducing Tee by AAP is a Flanged Reducing Tee galvanised for irrigation and ducting applications with wall thickness options for SGP and HEAVY DUTY STD WGT and flange bolting details. It provides M16 x 45 fixed fastener size and is for Pipe Fittings.
