Noga PA1300, 510
Out of stock

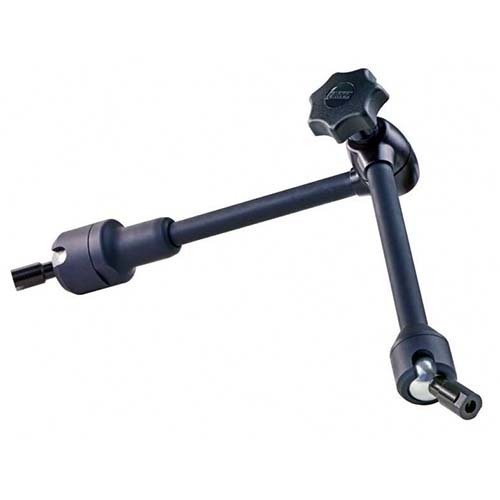

Noga Power Arm is an articulated support arm for holding and positioning components, in three total lengths: PA1300 at 310mm, PA1500 at 510mm and PA1800 at 810mm.
It is a Hybrid articulated arm with three joints and a black finish. All three have an internal M8 x 1.25 thread at each end (D1 and D2); the maximum load differs by length, so check the table.
Where this product is used
- Holding and positioning components on an articulated support arm
- Setting up dial indicators and test gauges
Features
- Noga Hybrid articulated arm
- Three-jointed arm
- Black finish
- Internal M8 x 1.25 thread at D1 and D2
- Maximum load printed for each length: 25kg (310mm), 15kg (510mm), 10kg (810mm)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Type | Articulated support arm, Noga Hybrid |
| Joints | Three-jointed |
| Finish | Black |
| Internal thread D1 | M8 x 1.25 |
| Internal thread D2 | M8 x 1.25 |
| Total length | 310mm, 510mm, 810mm |
| Arm length L1 | 180mm, 280mm, 430mm |
| Arm length L2 | 130mm, 230mm, 380mm |
| Weight | 1.18kg, 1.33kg, 1.54kg |
| Max load | 25kg, 15kg, 10kg |
Choosing the right option
Choose by reach and load: the PA1300 (310mm) carries the most, 25kg, the PA1500 (510mm) 15kg and the PA1800 (810mm) 10kg: the longer arms have the lower maximum loads. Check the weight of the component you will hold against the figure for the arm you choose.
Other Noga articulated arms: Noga MA60103 Articulated Arm Only 222.5mm & 286.5mm (No Magnet) Suits MA61003, Noga MG70103 Dial Gauge Articulated Arm Holder.
| Option | Part number | SKU |
|---|---|---|
| 310 | PA1300 | A0144127 |
| 510 | PA1500 | A0144128 |
| 810 | PA1800 | A0144129 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Noga Articulated Powerarm: 510
SKU: A0144128 | Model: PA1500
Noga PA1500: articulated Power Arm, 510mm total, arms 280mm and 230mm, max load 15kg, 1.33kg.
