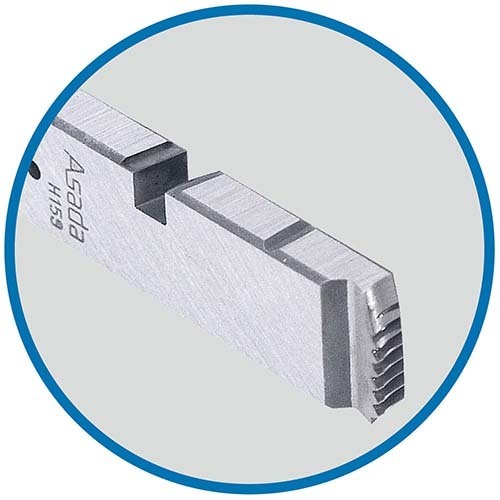

Asada SD18522 Dies HSS M8
Available
Asada HSS metric threading dies, supplied by size. They are made from special pre heat-treated steel for long life and easy threading.
The life of the dies is greatly affected by the quality of cutting oil used, so Asada Threading Oil is strongly recommended. HSS dies are for threading stainless steels and high tensile steels.
Where this product is used
- Threading stainless steels and high tensile steels.
Features
- Made from special pre heat-treated steel for long life and easy threading
- HSS: for threading stainless steels and high tensile steels
- 9 sizes available: M8, M10, M12, M14-16, M18-22, M24, M27, M30-33 and M36
- Asada Threading Oil strongly recommended, as cutting oil quality greatly affects die life
Key specifications
| Model | Size (mm) |
|---|---|
| SD18522 | 8 |
| SD18523 | 10 |
| SD18524 | 12 |
| SD18538 | 14 to 16 |
| SD18539 | 18 to 22 |
| SD18530 | 24 |
| SD18531 | 27 |
| SD18532 | 30 to 33 |
| SD18534 | 36 |
Selecting the right option
Choose the die by thread type (metric) and the size you thread. For general purpose threading of black or galvanised pipe and rod choose alloy dies. Use Asada Threading Oil, Standard Grade or Asada Neat Threading Oil, High Grade to extend die life.
Related products
See also the Asada alloy metric dies. See the Asada BTM25 rod/bolt threading machine and the Asada pipe and bolt threading machines.
