Austlift Eye Bolt BS4278 Zinc Plated
Available
End fittings match standard hook, eye, fork and chain terminations, allowing the screw or eye bolt to be substituted into existing rigging without modification. Suited to wire rope and rigging tensioning, lifting eye attachment points, tent and marquee tension assemblies, marine and yacht rigging, and crane and lifting accessory attachment. Drop-forged alloy steel construction and traceable WLL marking deliver the load performance lifting and structural applications demand. Built for repeat service across trade, marine and industrial rigging. This page covers the Austlift Eye Bolt BS4278 Zinc Plated (Metric Thread), available in 7 size (mm) options: M8, M10, M12, M16, M20, M24, M30.
Where this product is used
- Wire rope and rigging tensioning.
- Lifting eye attachment points.
- Tent, marquee and structural tension assemblies.
- Crane and lifting accessory attachment.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | DIN 580 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

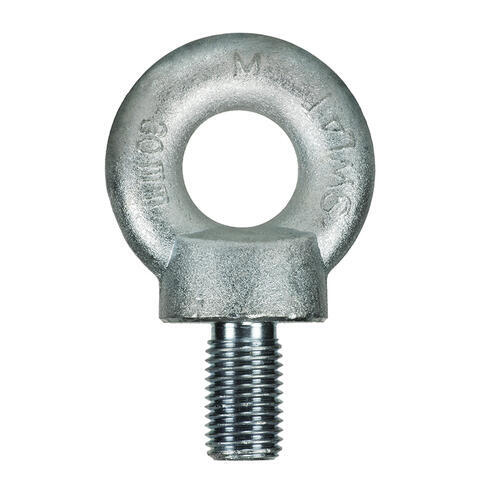

Austlift Eye Bolt BS4278 Zinc Plated (Metric Thread): M8
SKU: A0168874 | Model: 603008
Size (mm) M8. Austlift Eye Bolt BS4278 Zinc Plated (Metric Thread)
BS4278 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for chain,wire rope and other assembles where required.
Made from carbon steel following steel specifications of BS970 with zinc plated finish, manufactured with a smaller eye than DIN type.
Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered and supplier identification.
Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit.
Test certificates are supplied upon request.
