Austlift Eye Bolt BS529 Zinc Plated (BSW
Available
Used across wire rope and chain tensioning, lifting eye attachments, structural and marine rigging, and crane accessory attachment. The Austlift rigging screw, turnbuckle and eye bolt range delivers standard end configurations (jaw-jaw, eye-eye, jaw-eye, hook-hook) and finishes (galvanised, stainless). Engineering-grade construction and standard sizing suit common rigging assemblies. Designed for safe tensioning and load attachment in trade and industrial service. This page covers the Austlift Eye Bolt BS529 Zinc Plated (BSW Thread), available in 7 size options: 1/2", 1", 1 1/4", 3/8", 3/4", 5/8", 7/8".
Where this product is used
- Wire rope and rigging tensioning.
- Lifting eye attachment points.
- Tent, marquee and structural tension assemblies.
- Crane and lifting accessory attachment.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | DIN 580 |
Working Load Limit by size
| Size / Variant | WLL |
|---|---|
| 1/2" | 0.5T |
| 1" | 2.8T |
| 1 1/4" | 4.6T |
| 3/8" | 0.3T |
| 3/4" | 1.4T |
| 5/8" | 0.9T |
| 7/8" | 2T |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

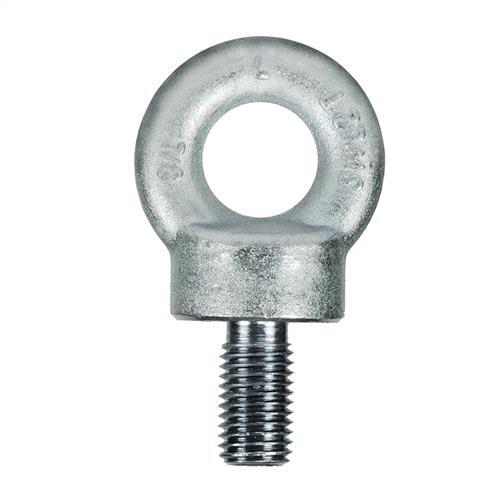

Austlift Eye Bolt BS529 Zinc Plated (BSW Thread): 1/2"
SKU: A0168886 | Model: 604010
Size 1/2". Austlift Eye Bolt BS529 Zinc Plated (BSW Thread)
BS529 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilized, also can be used as a termination for the chain, wire rope, and other assemblies where required.
Made from carbon steel following steel specifications of BS 970 with zinc plated finish, manufactured with a smaller eye than DIN type.
Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered, and supplier identification.
Proof tested to 2 x working load limit and minimum breaking force of 6 x workload limit.
Test certificates are supplied upon request.
