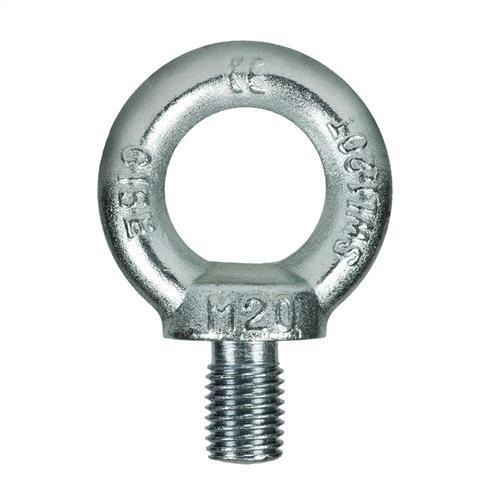

Austlift Eye Bolt DIN580 Zinc Plated M6
Available
End fittings match standard hook, eye, fork and chain terminations, allowing the screw or eye bolt to be substituted into existing rigging without modification. Suited to wire rope and rigging tensioning, lifting eye attachment points, tent and marquee tension assemblies, marine and yacht rigging, and crane and lifting accessory attachment. Drop-forged alloy steel construction and traceable WLL marking deliver the load performance lifting and structural applications demand. Built for repeat service across trade, marine and industrial rigging. This page covers the Austlift Eye Bolt DIN580 Zinc Plated, available in 14 size (mm) options: M6, M8, M10, M12, M16, M20, M22, M24 and 6 more.
Where this product is used
- Eye bolt lifting points on machinery covers, gearboxes, and pump assemblies.
- Equipment and plant maintenance lifting points for overhead hoists.
- Threaded lifting point installation on motors, drives, and housings.
- Structural member lifting attachment using eye bolt assemblies.
- Precast concrete and formwork lifting point installation.
- Building and infrastructure equipment and fixture lifting.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | DIN 580 |
Working Load Limit by size
| Size / Variant | WLL (t) |
|---|---|
| M6 | 0.09 |
| M8 | 0.14 |
| M10 | 0.23 |
| M12 | 0.34 |
| M16 | 0.7 |
| M20 | 1.2 |
| M22 | 1.5 |
| M24 | 1.8 |
| M27 | 2.5 |
| M30 | 3.6 |
| M36 | 5.1 |
| M42 | 7 |
| M48 | 8.6 |
| M56 | 11.5 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift Eye Bolt DIN580 Zinc Plated: M6
SKU: A0168847 | Model: 601006
Size (mm) M6. Austlift Eye Bolt DIN580 Zinc Plated
Eyebolts DIN580 is generally used as a removable lifting point where a rated female thread or nut can be utilised also can be used as a termination for the chain, wire rope and other assemblies where required. Made from C15 carbon steel with zinc plated finish, manufactured with a standard larger eye. Only available in metric thread sizes. Conforms to DIN580 marked with working load limit in tonne, nominal size in millimetre, quality grade, batch number, and supplier identification. Proof tested to 2 x working load limit and minimum breaking force of 6 x working load limit. Test certificates are available upon request.
