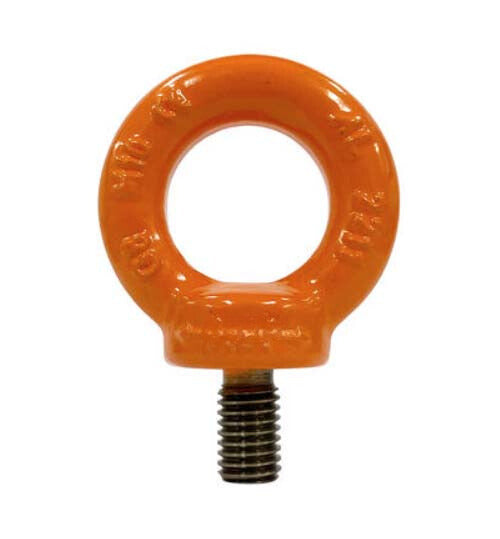

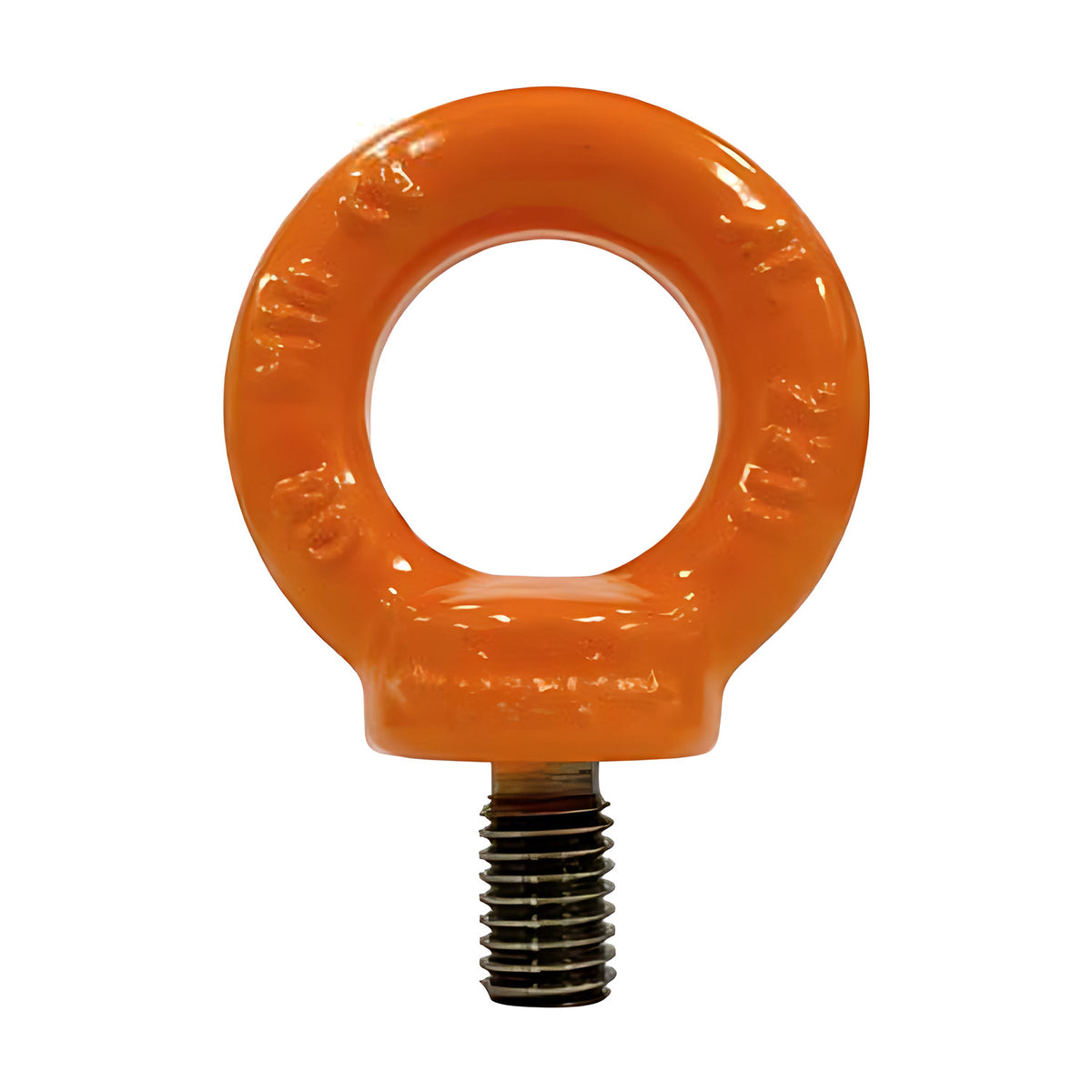

Austlift Eye Bolt G80 6mm (M6) x 0.4T WLL
Regular price
$5.17
Sale price
$5.17
Regular price
Inc. GST
Available
Used across wire rope and chain tensioning, lifting eye attachments, structural and marine rigging, and crane accessory attachment. The Austlift rigging screw, turnbuckle and eye bolt range delivers standard end configurations (jaw-jaw, eye-eye, jaw-eye, hook-hook) and finishes (galvanised, stainless). Engineering-grade construction and standard sizing suit common rigging assemblies. Designed for safe tensioning and load attachment in trade and industrial service.
Where this product is used
- Wire rope and rigging tensioning.
- Lifting eye attachment points.
- Tent, marquee and structural tension assemblies.
- Crane and lifting accessory attachment.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | DIN 580 |
Working Load Limit by size
| Size / Variant | WLL axial (t) | WLL transverse (t) |
|---|---|---|
| M6 | 0.4 | 0.15 |
| M8 | 0.8 | 0.4 |
| M10 | 1 | 0.4 |
| M12 | 2 | 0.75 |
| M16 | 4 | 1.5 |
| M20 | 6 | 2.3 |
| M24 | 8 | 3.2 |
| M27 | 10 | 4 |
| M30 | 12 | 4.5 |
| M36 | 16 | 7 |
| M42 | 24 | 9 |
| M48 | 32 | 12 |
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
M6mm bolt
Model Number: 602206
-
M8mm bolt
Model Number: 602208
-
M10mm bolt
Model Number: 602210
-
M12mm bolt
Model Number: 602212
-
M16mm bolt
Model Number: 602216
-
M20mm bolt
Model Number: 602220
-
M24mm bolt
Model Number: 602224
-
M27mm bolt
Model Number: 602227
-
M30mm bolt
Model Number: 602230
-
M36mm bolt
Model Number: 602236
-
M42mm bolt
Model Number: 602242
-
M48mm bolt
Model Number: 602248
