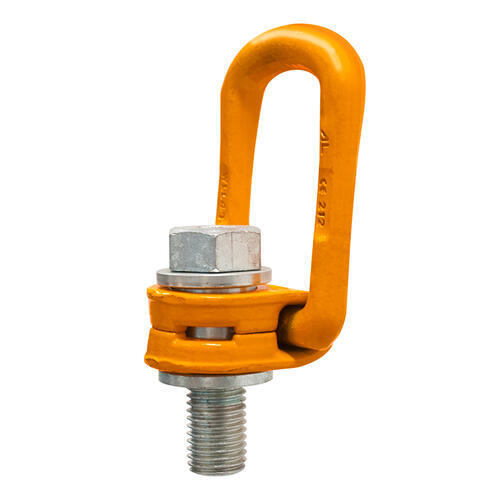

Austlift Large Swivel Eye Bolt

Austlift Large Swivel Eye Bolt (Short Thread)

• Large ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
• Used as a swiveling load ring able to swivel 360° with a pivot of 180°.
• Made from G80 alloy steel with Orange painted finish,manufactured with an elongated ring in metric thread sizes.
• Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
• Proof tested to 1.25 x working load limit.
• Test certificate available upon request.

Notes

• Long thread eye bolts can be cut to suits jobs.
• When cutting the bolts a cold cutting method must be used.
• Do not use Oxy- Acetylene cutting.
• The lengthafter cutting must not be less than 1.5 times that of its diametre.
