Austlift Swivel Eye Bolt M8 0.3T 76mm Nut
Available
Used across wire rope and chain tensioning, lifting eye attachments, structural and marine rigging, and crane accessory attachment. The Austlift rigging screw, turnbuckle and eye bolt range delivers standard end configurations (jaw-jaw, eye-eye, jaw-eye, hook-hook) and finishes (galvanised, stainless). Engineering-grade construction and standard sizing suit common rigging assemblies. Designed for safe tensioning and load attachment in trade and industrial service. This page covers the Austlift Large Swivel Eye Bolt Large Thread With Nut, available in 8 size (mm) options: M8, M10, M12, M14, M16, M18, M20, M24.
Where this product is used
- Swivel and swing lifting points on machinery with varying load angles.
- Multi-directional lifting point installation on equipment covers and frames.
- Oblong and swing eye bolt use for angular and off-centre loads.
- Swivel lifting point installation on maintenance and construction equipment.
- Angular crane and hoist lift attachment using swivel eye bolts.
- Industrial maintenance lifting hardware for varied load directions.
Key specifications
| Product Type | Rigging Hardware |
| Standard(s) | DIN 580 |

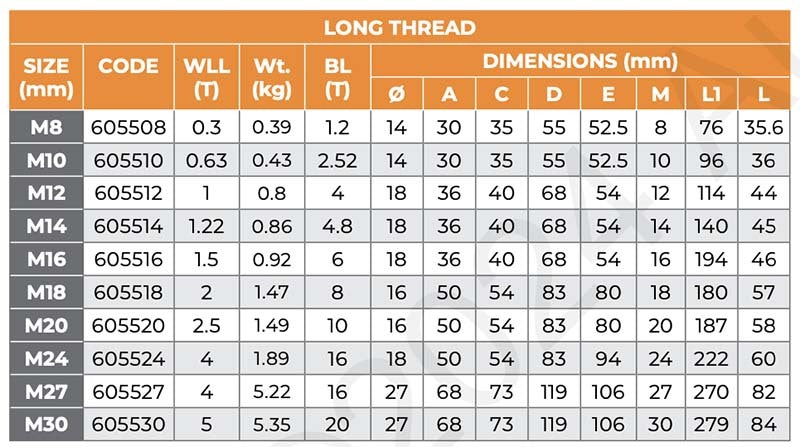

Working Load Limit by size
| Size / Variant | WLL (t) |
|---|---|
| M8 | 0.3 |
| M10 | 0.63 |
| M12 | 1 |
| M14 | 1.22 |
| M16 | 1.5 |
| M18 | 2 |
| M20 | 2.5 |
| M24 | 4 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austlift Large Swivel Eye Bolt Large Thread With Nut: M8
SKU: A0168915 | Model: 605508

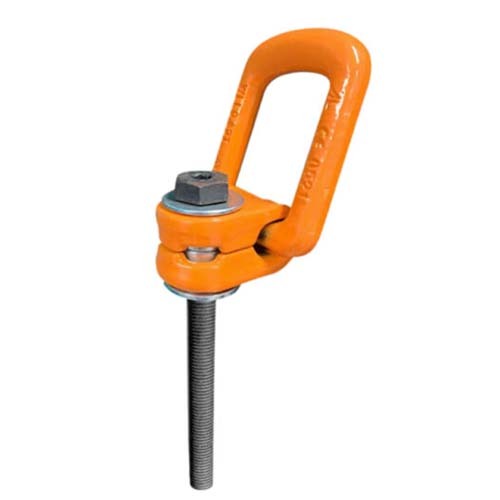

Size (mm) M8. Austlift Large Swivel Eye Bolt With Nut (Long Thread)
Large ring bolt accordingly to EN 818-4 for the load ring and AS2318 for the swivel component.
Used as a swiveling load ring able to swivel 360° with a pivot of 180°.
Made from G80 alloy steel with an Orange painted finish, manufactured with an elongated ring in metric thread sizes.
Marked with workload limit in tonne, nominal size in millimetre, quality mark, and supplier identification.
Proof tested to 1.25 x working load limit.
Test certificate available upon request.
Notes
Long thread eye bolts can be cut to suit jobs.
When cutting the bolts a cold-cutting method must be used.
Do not use Oxy- Acetylene cutting.
The length after cutting must not be less than 1.5 times that of its diametre.
