Austlift Oblong Eye Bolt / Swivel Lifting Point1

Austlift Oblong Eye Bolt / Swivel Lifting Point 8mm x 0.3T - 0.6T

Austlift Oblong Eye Bolt / Swivel Lifting Point 12mm x 0.5T - 1T

Austlift Oblong Eye Bolt / Swivel Lifting Point 16mm x 1.12T - 2T

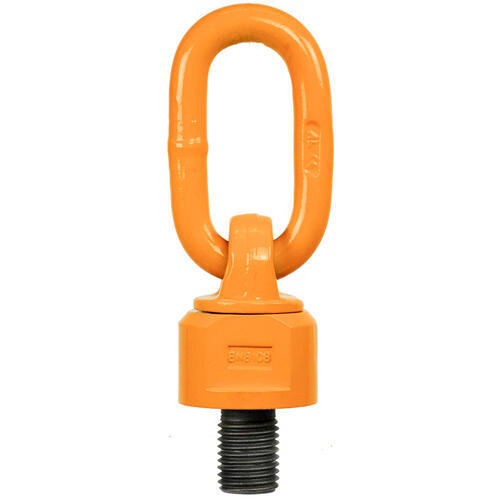

Austlift Oblong Eye Bolt / Swivel Lifting Point 20mm x 2T - 4T

Austlift Oblong Eye Bolt / Swivel Lifting Point 24mm x 3.15T - 6.3T

Austlift Oblong Eye Bolt / Swivel Lifting Point 30mm x 5.3T - 10.6T

Austlift Oblong Eye Bolt / Swivel Lifting Point 36mm x 8T - 11.8T

Description −

Austlift Oblong Eye Bolt / Swivel Lifting Point

Swivel ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
Used as a swiveling load ring capable of rotating under load due to ball bearing rings ideally suited for dynamic lifting in any position.
Made from G80 alloy steel with yellow painted finish, manufactured with an oval link, and available in metric thread sizes from 8mm to 36mm.
Marked with working load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
Proof tested to 1.25 x Working load limit.
Test certificates are available upon request.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Austlift Oblong Eye Bolt / Swivel Lifting Point

SKU: A0168903

Type: Eye Bolt

$152.87

Inc. GST

Available

The Austlift Oblong Eye Bolt / Swivel Lifting Point by Austlift is a Eye Bolt made from G80 alloy steel. It offers metric thread sizes from 8mm to 36mm and is suitable for dynamic lifting.

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Austlift-Eye-Bolts-_-Eye-Nuts

Description −

Austlift Oblong Eye Bolt / Swivel Lifting Point

Swivel ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
Used as a swiveling load ring capable of rotating under load due to ball bearing rings ideally suited for dynamic lifting in any position.
Made from G80 alloy steel with yellow painted finish, manufactured with an oval link, and available in metric thread sizes from 8mm to 36mm.
Marked with working load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
Proof tested to 1.25 x Working load limit.
Test certificates are available upon request.
