Austlift G100 Swivel Ball Bearing Self
Available
The fitting provides a rated WLL termination for lifting chain, wire rope and sling assemblies in crane, mining and industrial rigging work. Suited to crane hook terminations, chain sling assembly and repair, lifting eye attachment points, mining and stevedoring rigging, and general load attachment. Bow and Dee shackles, self-locking hooks, master links and connecting links in the Austlift range deliver a coordinated chain component set. Built to perform safely under rated load through repeat trade service. This page covers the Austlift Swivel Ball Bearing Self Locking Hook G100, available in 9 size (mm) options: 6, 8, 10, 13, 16, 20, 22, 26 and 1 more.
Where this product is used
- Crane and lifting hook terminations.
- Chain sling assembly and repair.
- Rigging and load attachment points.
- Mining and stevedoring rigging.
Key specifications
| Product Type | Lifting Equipment |
| Standard(s) | AS 3776 |
Working Load Limit by size
| Size / Variant | WLL |
|---|---|
| 6 | 1.4 T |
| 8 | 2.5 T |
| 10 | 4 T |
| 13 | 6.7 T |
| 16 | 10 T |
| 20 | 16 T |
| 22 | 19 T |
| 26 | 26.5 T |
| 32 | 40 T |
Features
- Self-Locking.
- Swivel.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

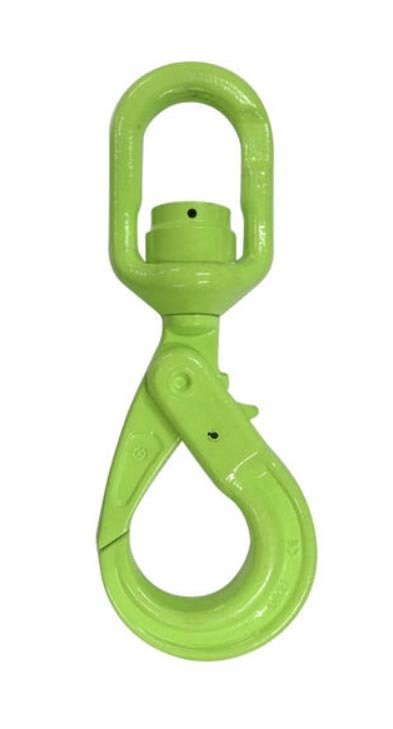

Austlift Swivel Ball Bearing Self Locking Hook G100: 6
SKU: A0207685 | Model: 173706
Size (mm) 6. Austlift Swivel Ball Bearing Self Locking Hook G100
Self Locking Hook (Swivel Type, LS).
Austlift Grade 100 Swivel Self-locking Hook has a ball bearing swivel to allow the hook to swivel thus reducing the twist of a sling.
Marked with chain size, designation, grade, manufacture quality mark, and Austlift branded.
25% higher work load limit than G80.
Batch tested, test certificates available upon request.
Spare trigger kits are available.
Fatigue tested > 20,000 times.
