Austsaw TCT blade for wood with nails, 18 / 160
Available
The Austsaw Extreme Wood with Nail blade is a thin kerf TCT circular saw blade for cutting wood, wood with nails and knots, hardwood, softwood, plywood, MDF and chipboard. There are 24 sizes from 136mm to 305mm diameter, each a single carded blade.

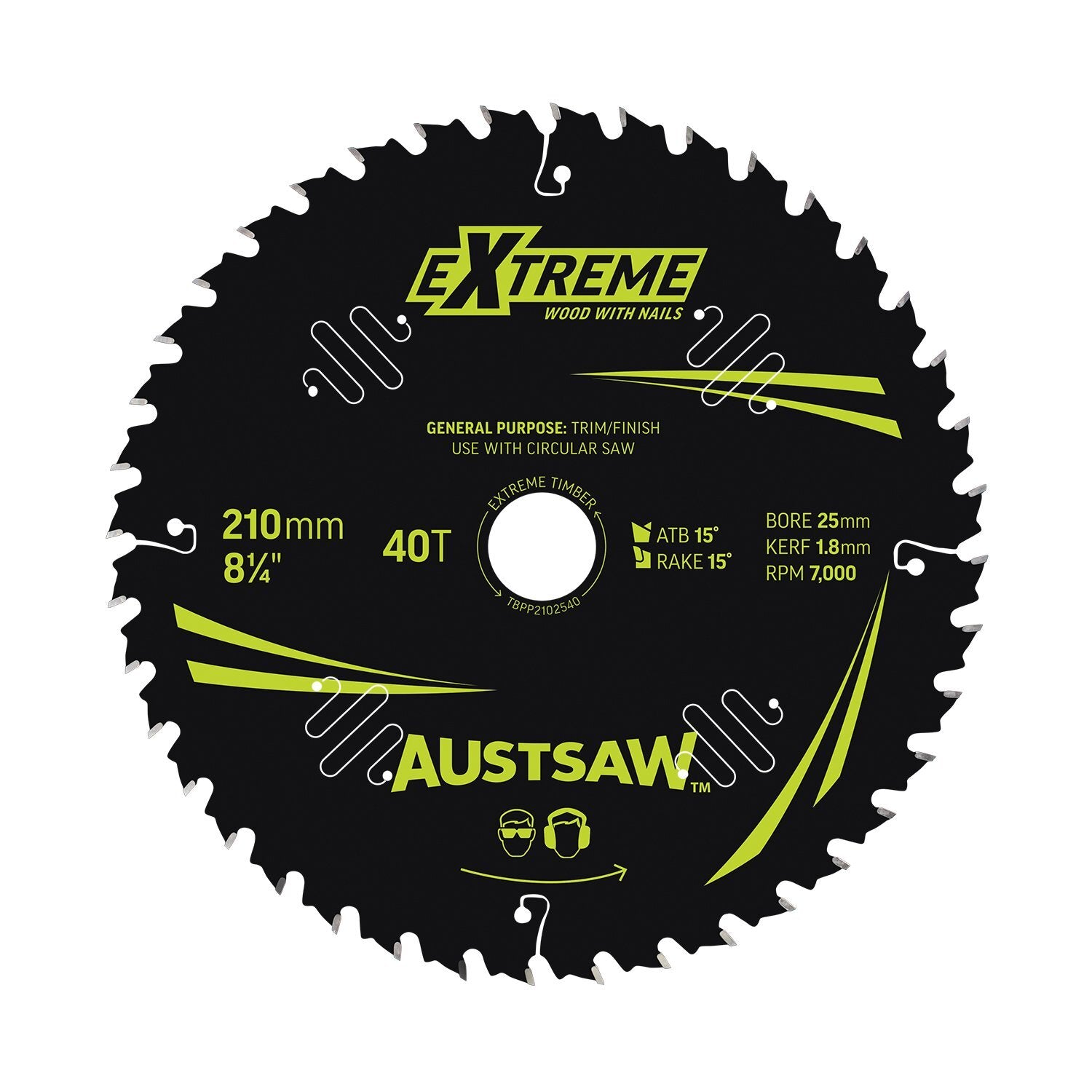

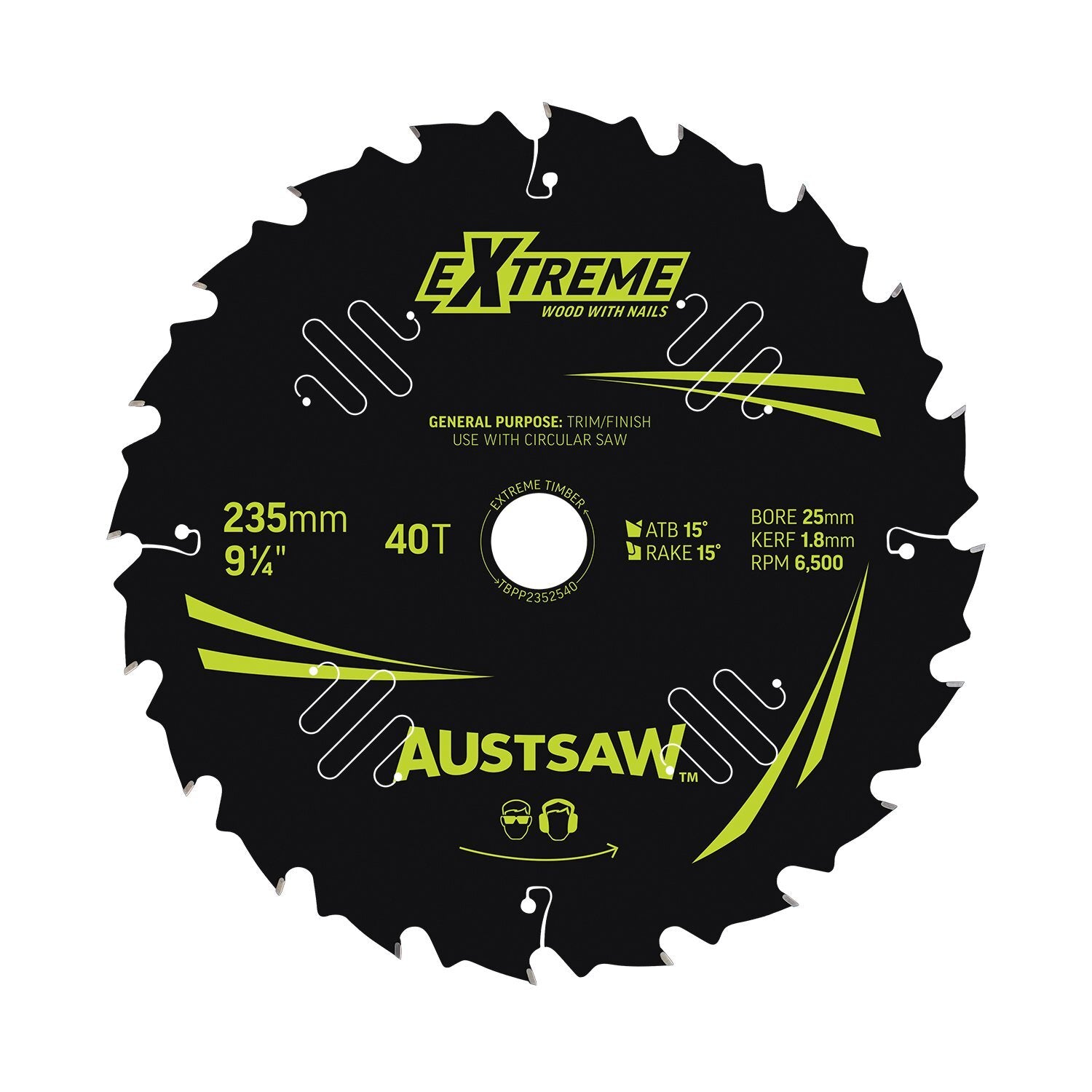

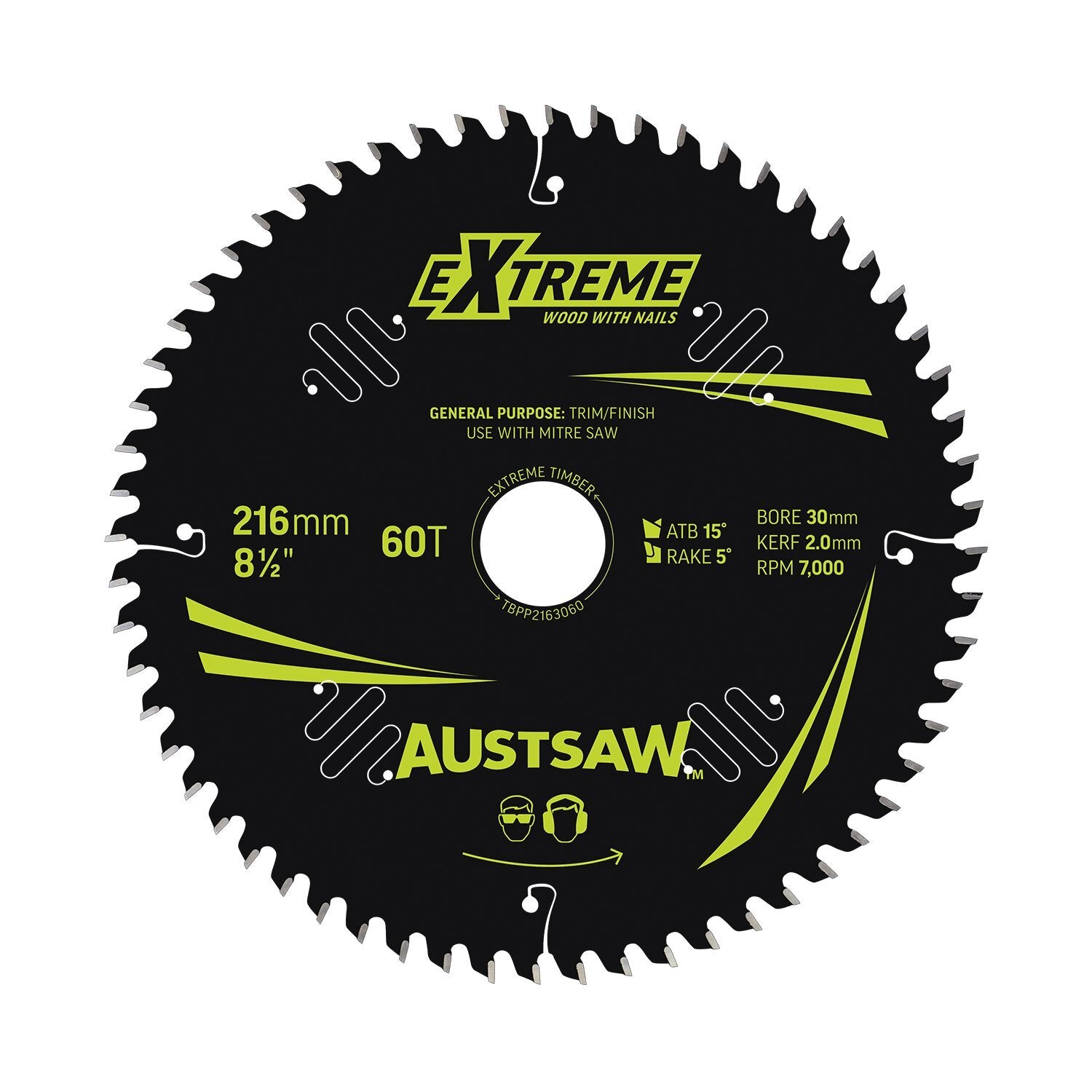

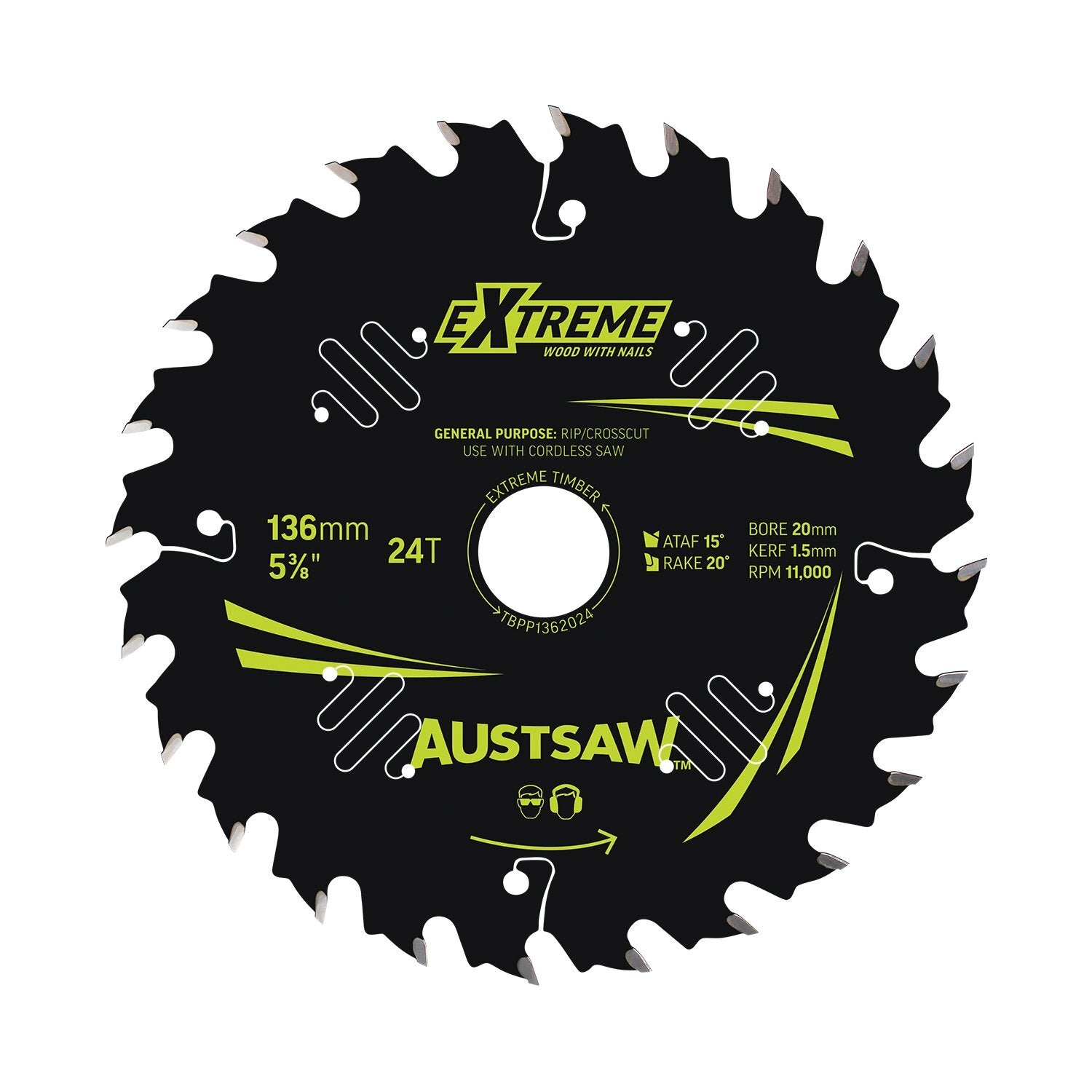

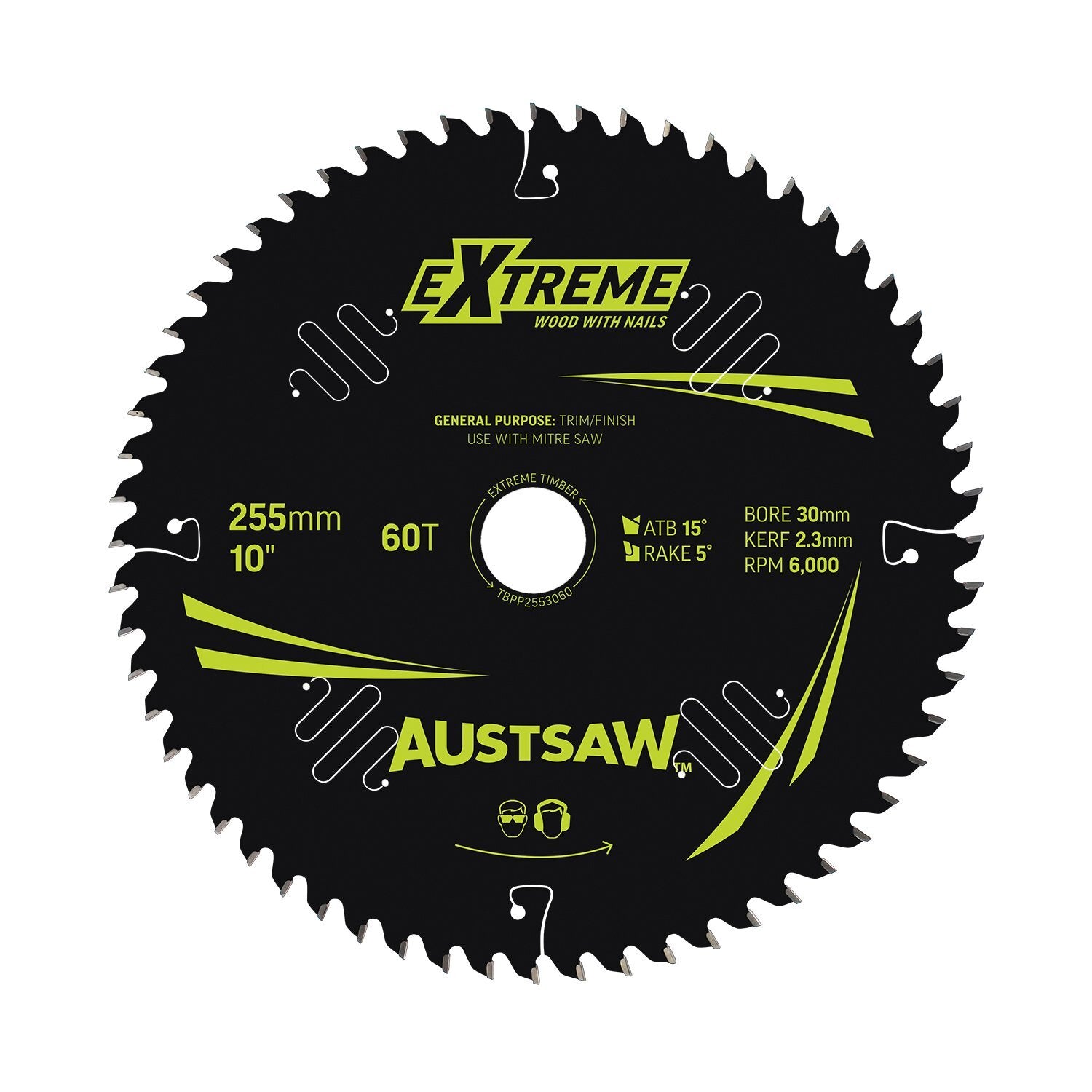

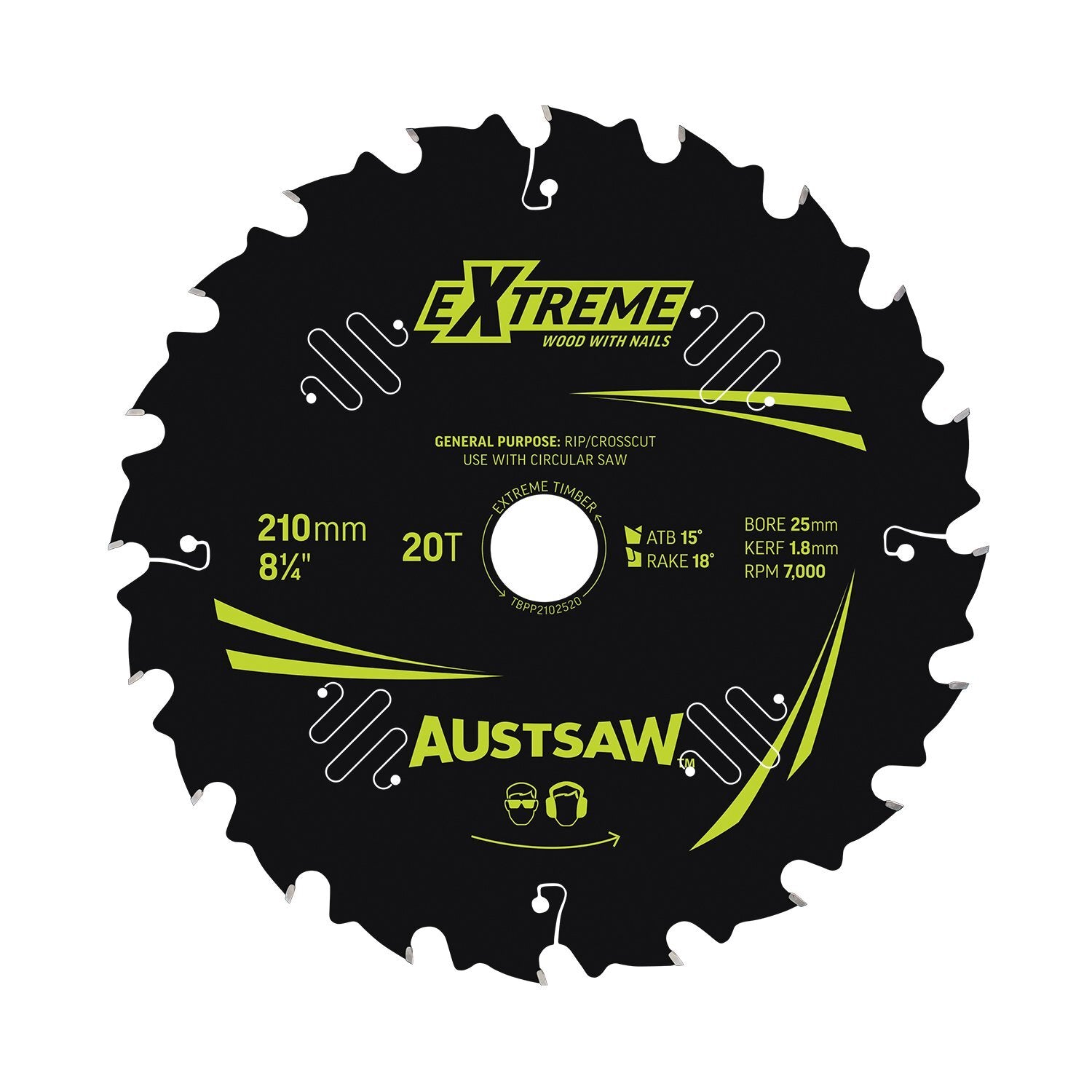

The range with a thin kerf design is for fast cutting and longer battery life on cordless saws, a laser cut plate with laser cut vents to absorb noise and vibration, impact resistant brazing for tooth bonding, and an anti-kickback design with a reinforced shoulder. Sizes by saw type: the 136mm to 185mm blades are for cordless saws (the 160mm and 165mm blades also for corded saws, and the 185mm 40 teeth blade also for circular saws), the 190mm and 216mm blades for mitre saws, the 210mm and 235mm blades for circular saws, and the 255mm to 305mm blades for mitre saws. Within a diameter, the rip / crosscut blades have fewer teeth than the trim / finish blades. Hook angle as Rake.
Where this product is used
- Rip and crosscutting framing timber, including timber that may contain nails or knots
- Cutting hardwood and softwood boards
- Cutting plywood, MDF and chipboard sheet
- Trim and finish cutting with the higher tooth count blades
Features
- Thin kerf design for fast cutting and longer battery life on cordless saws
- Handles wood with nails and knots
- Laser cut vents to absorb noise and vibration
- Impact resistant brazing for tooth bonding
- Anti-kickback design with a reinforced shoulder
- Anti-friction layer and non-stick coating against gumming and pitch build-up
- Up to 6x the life of a standard saw blade
Key specifications
| Specification | Detail |
|---|---|
| Brand | Austsaw |
| Diameters | 136mm to 305mm |
| Teeth | 18 to 100 |
| Tooth grind | ATAF or ATB, 15° (by size, see table) |
| Hook angle | 5° to 20° (by size, see table) |
| Maximum speed | 5,000 to 11,000 RPM (by size) |
| Cuts | Wood, wood with nails and knots, hardwood, softwood, chipboard, MDF, plywood |
| Supplied | Single carded blade |
| Bore | 20mm with 16mm bush, 20mm, 25mm with 16mm bush, 30mm with 15.88mm bush, 25mm, 30mm with 25.4mm bush, 25.4mm |
| Kerf | 1.5mm, 1.8mm, 1.6mm, 2.0mm, 2.3mm |
| Application | Rip / crosscut, Trim / finish |
| Use with | Cordless saw, Cordless / corded saw, Cordless / circular saw, Mitre saw, Circular saw |
Choosing the right option

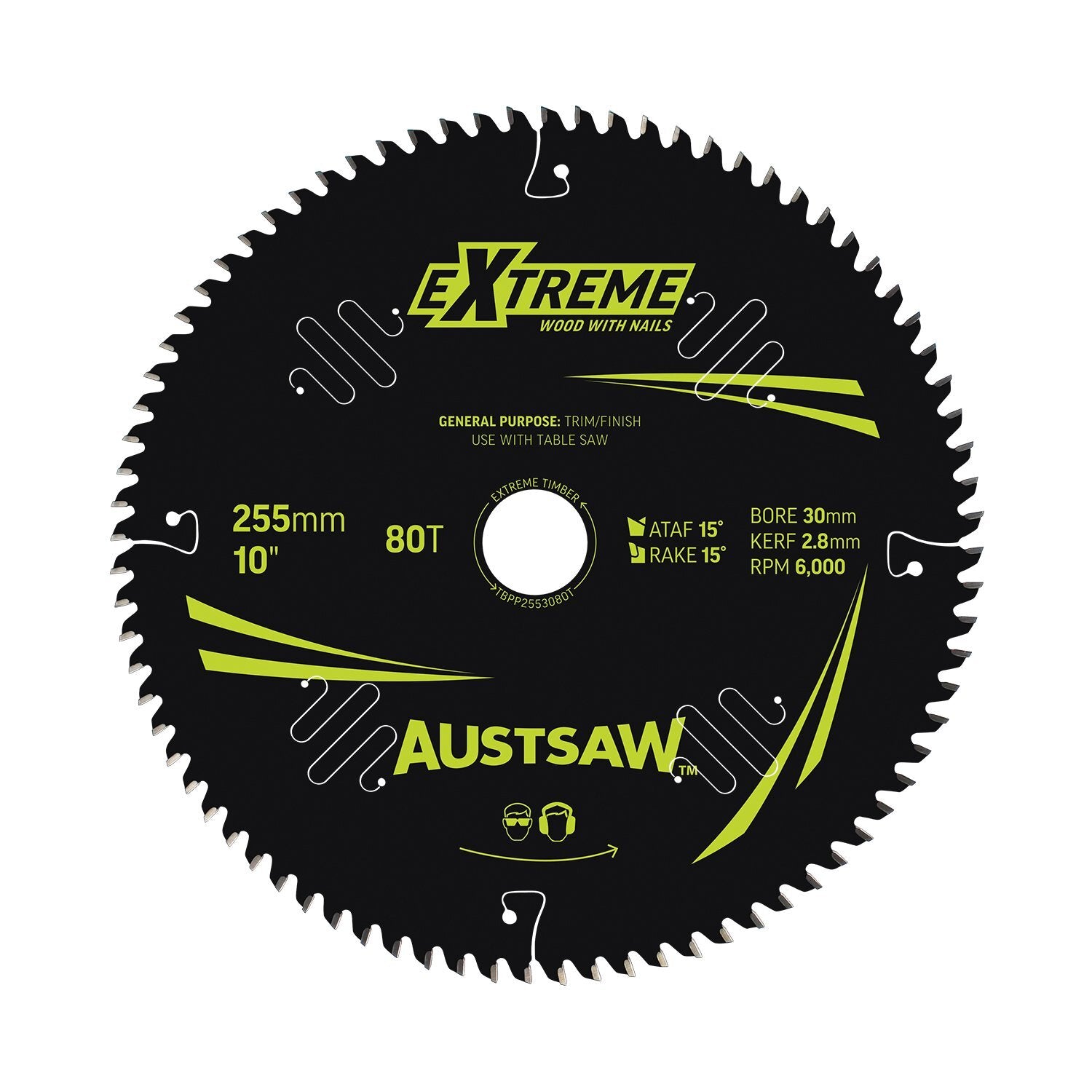

Start with the diameter and bore your saw takes, then check the maximum speed: the range notes that the maximum RPM printed on the blade must meet or exceed the maximum RPM of the saw, and that bore reducing rings can be used where needed (Austsaw saw blade bushes). Then pick the cut: choose a rip / crosscut blade for faster stock removal or a trim / finish blade with more teeth. For a table saw version of the 255mm blade see Extreme Wood with Nail Blade - Table Saw.
See also: table saw version, 165mm, 185mm.
| Option | Part number | SKU |
|---|---|---|
| 18 / 160 | A0146414 | |
| 20 / 160 | A0146422 | |
| 24 / 160 | A0146412 | |
| 25 / 40 | A0146423 | |
| 25 / 60 | A0146427 | |
| 25 / 80 | A0146433 | |
| 30 / 40 | A0146428 | |
| 32 / 160 | A0146431 | |
| 36 / 160 | A0146413 | |
| 40 / 160 | A0146416 | |
| 50 / 160 | A0146432 | |
| 60 / 160 | A0146424 | |
| 80 / 160 | A0146430 | |
| 100 / 160 | A0146434 | |

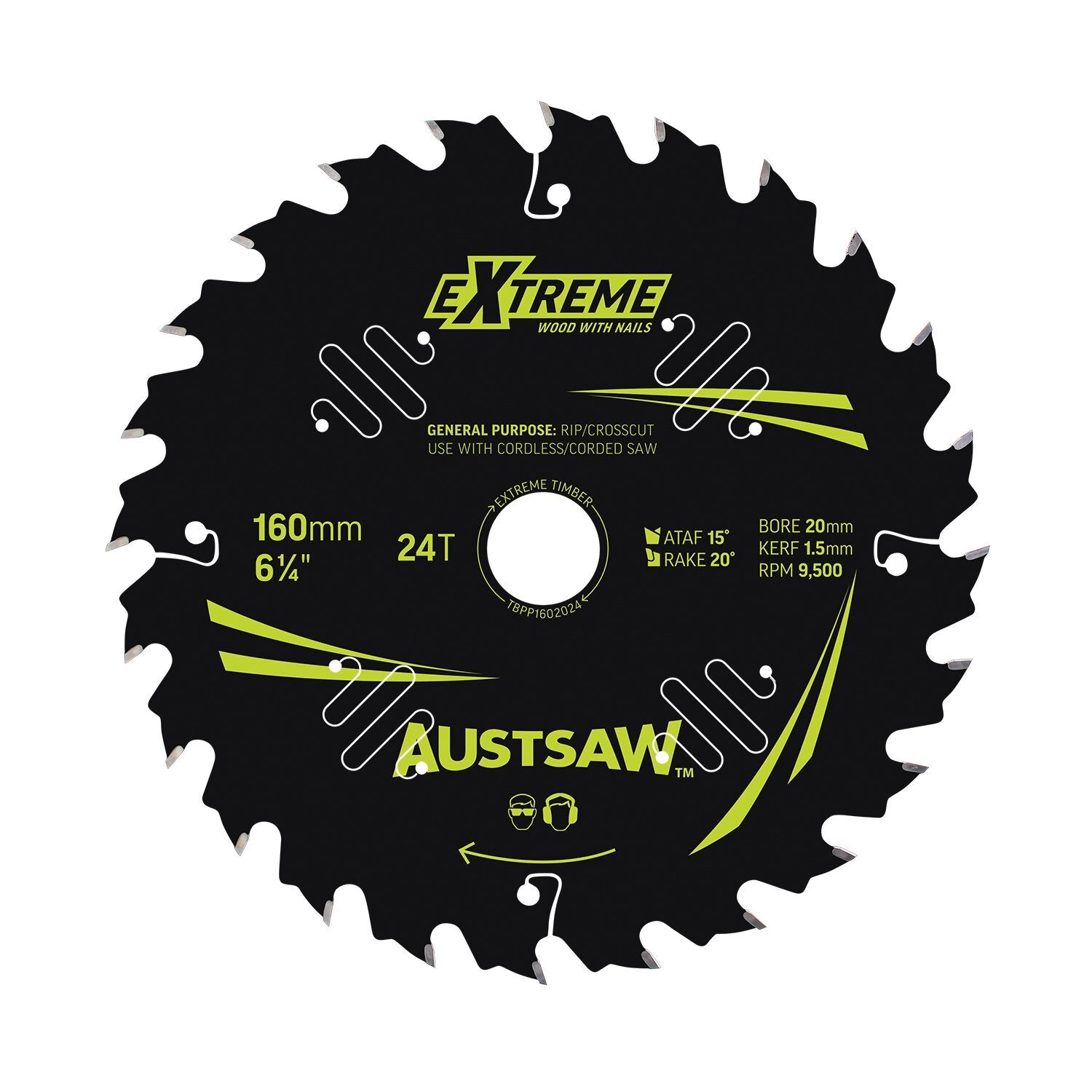

| 160 / 24 | A0146415 | |

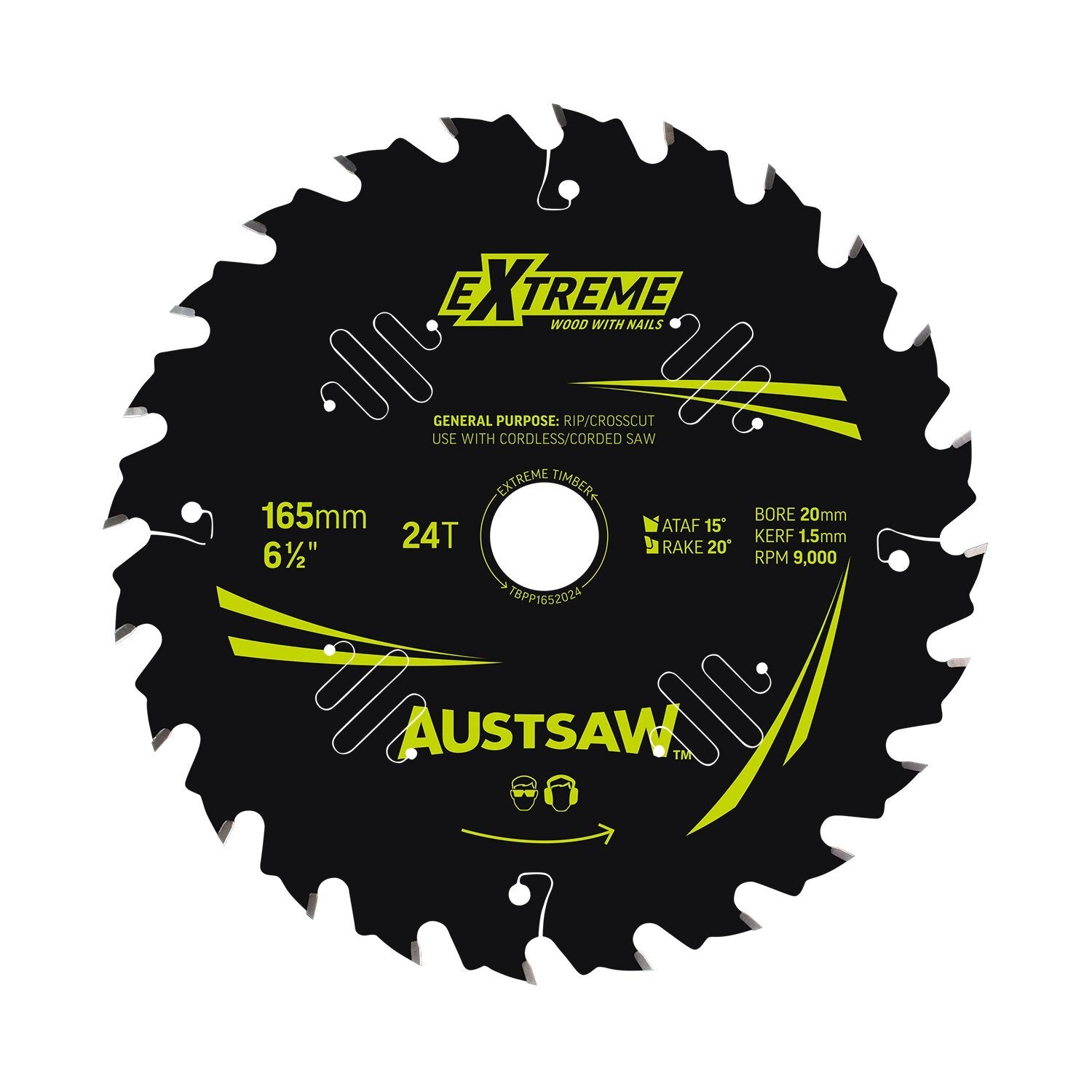

| 165 / 24 | A0146417 | |

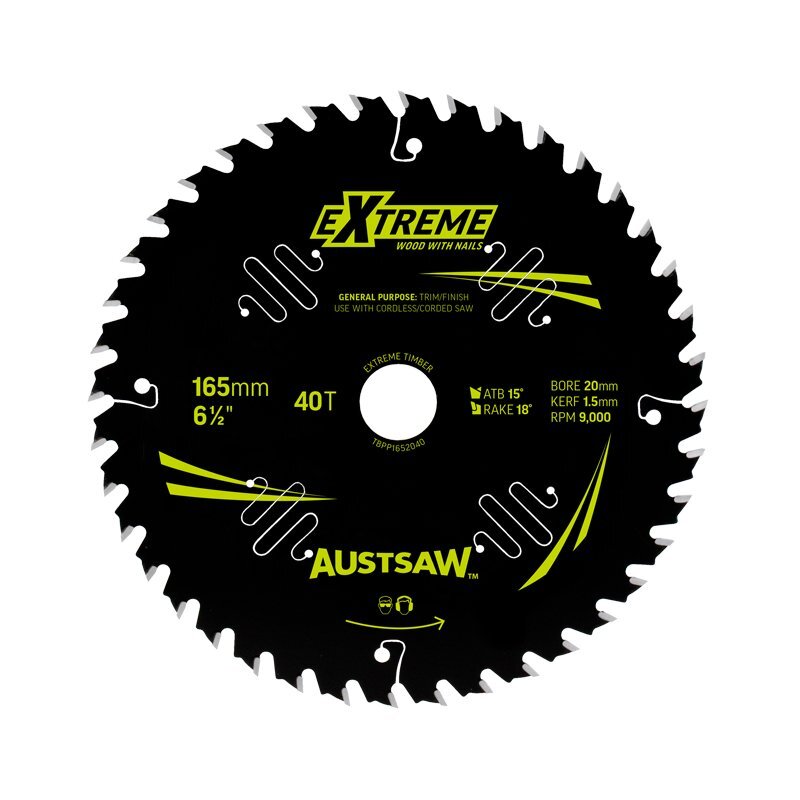

| 165 / 40 | A0146418 | |

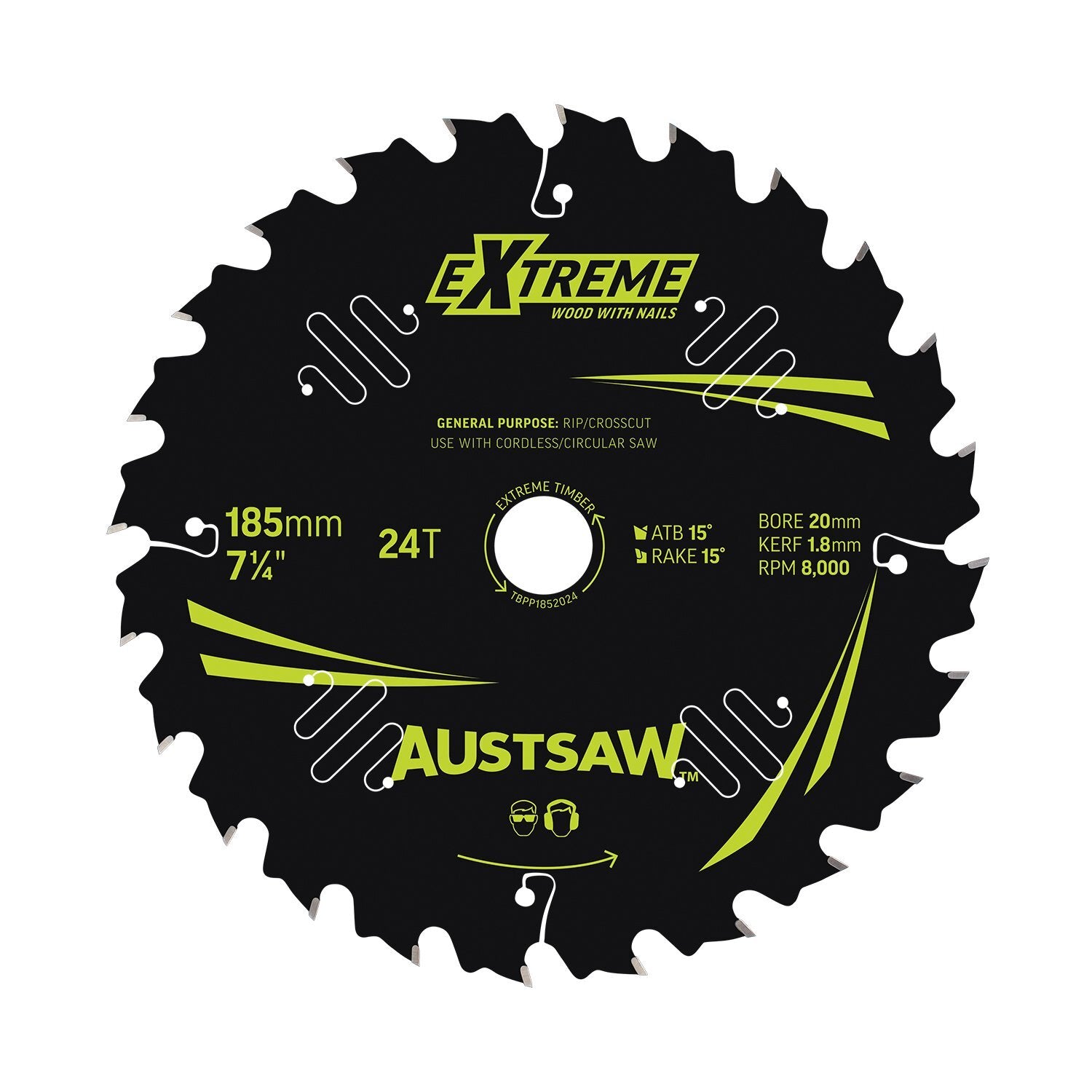

| 185 / 24 | A0146419 | |

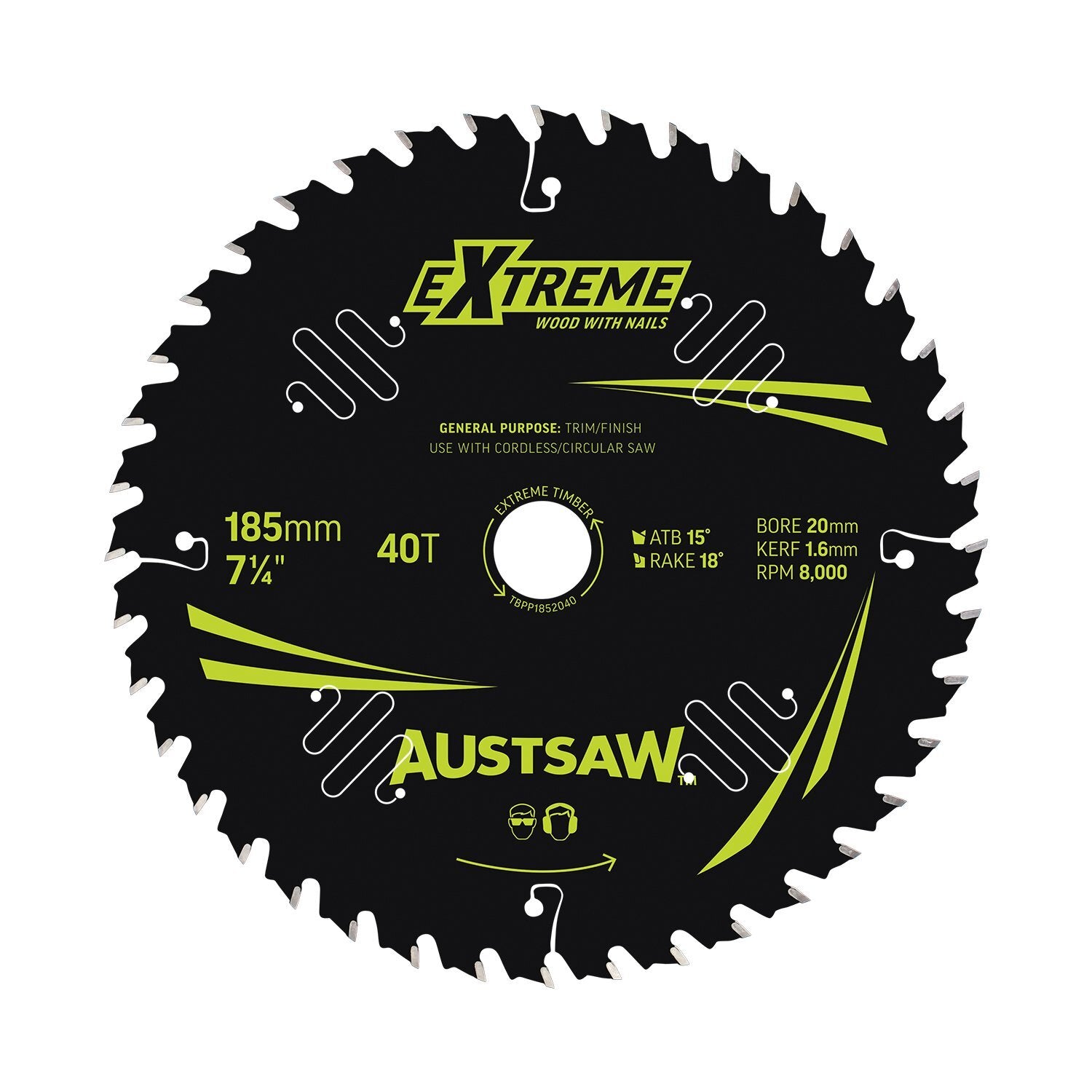

| 185 / 40 | A0146420 | |
| 190 / 40 | A0146421 | |
| 235 / 20 | A0146425 | |

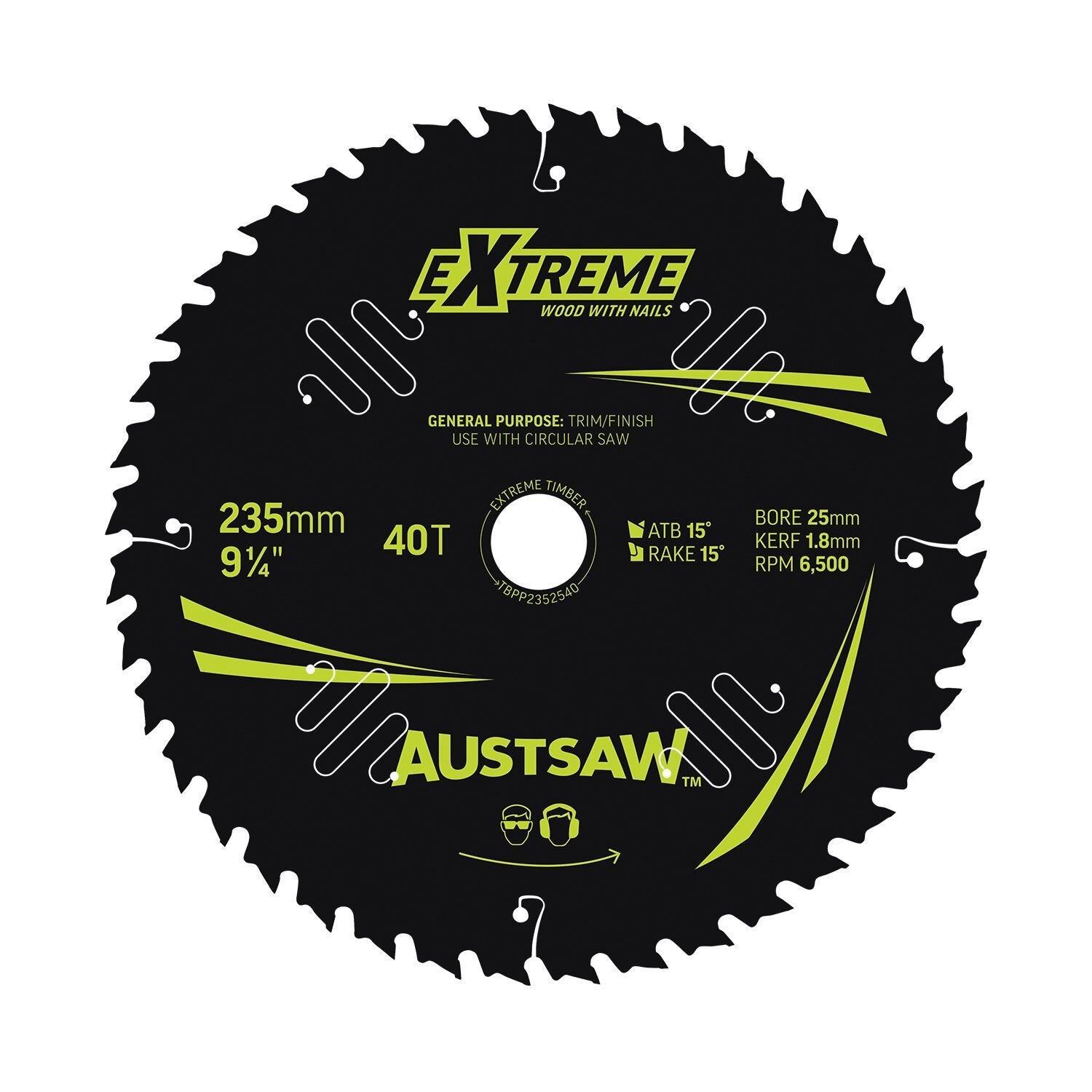

| 235 / 40 | A0146426 | |
| 255 / 60 | A0146429 | |
| 305 / 60 | A0146435 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austsaw Extreme Wood with Nail Circular Saw Blade, 136mm to 305mm: 18 / 160
SKU: A0146414 | Model: TBPP1602018

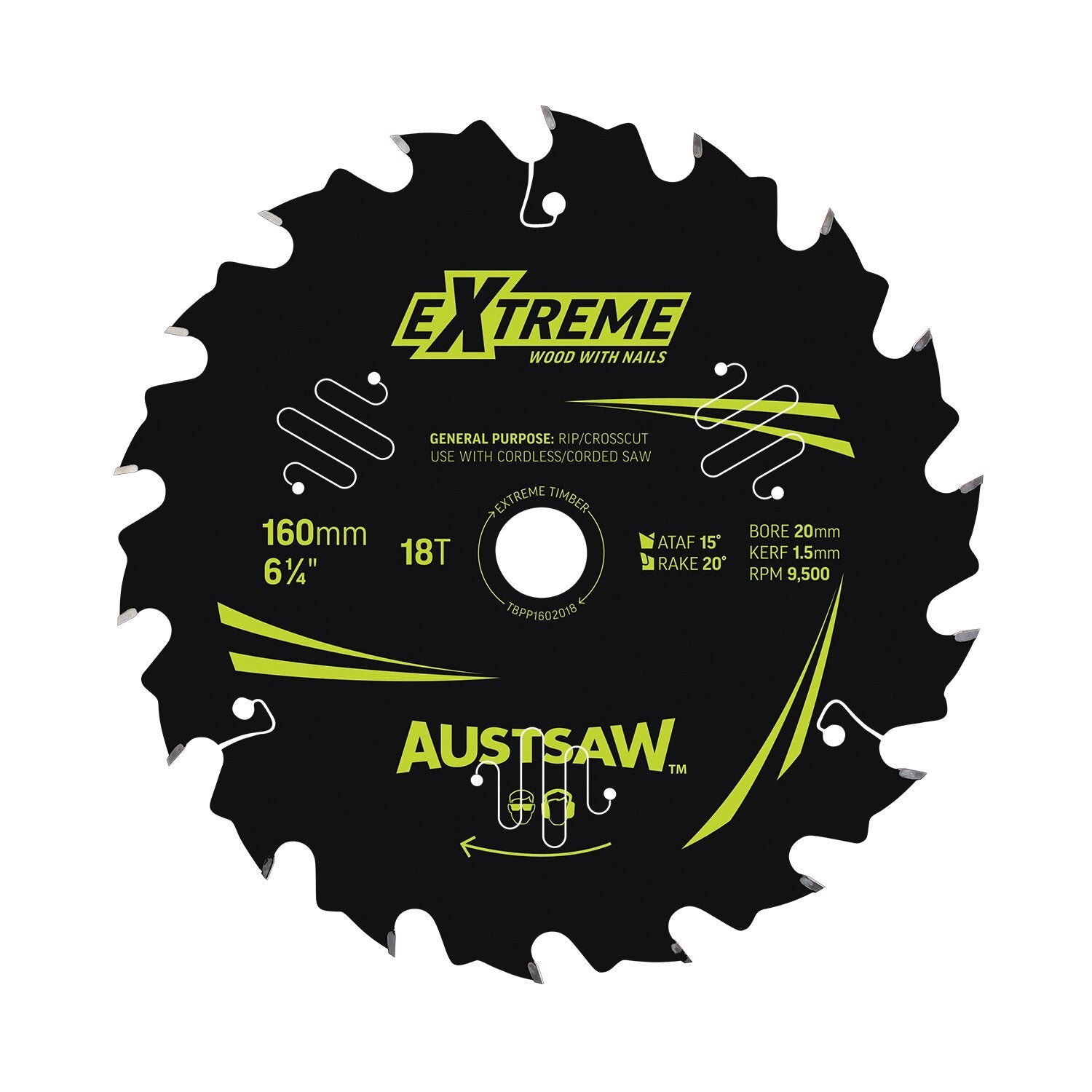

Austsaw A0146414 is a TCT blade for wood with nails, 18 / 160. Diameter: 160mm (6-1/4"). Teeth: 18.
