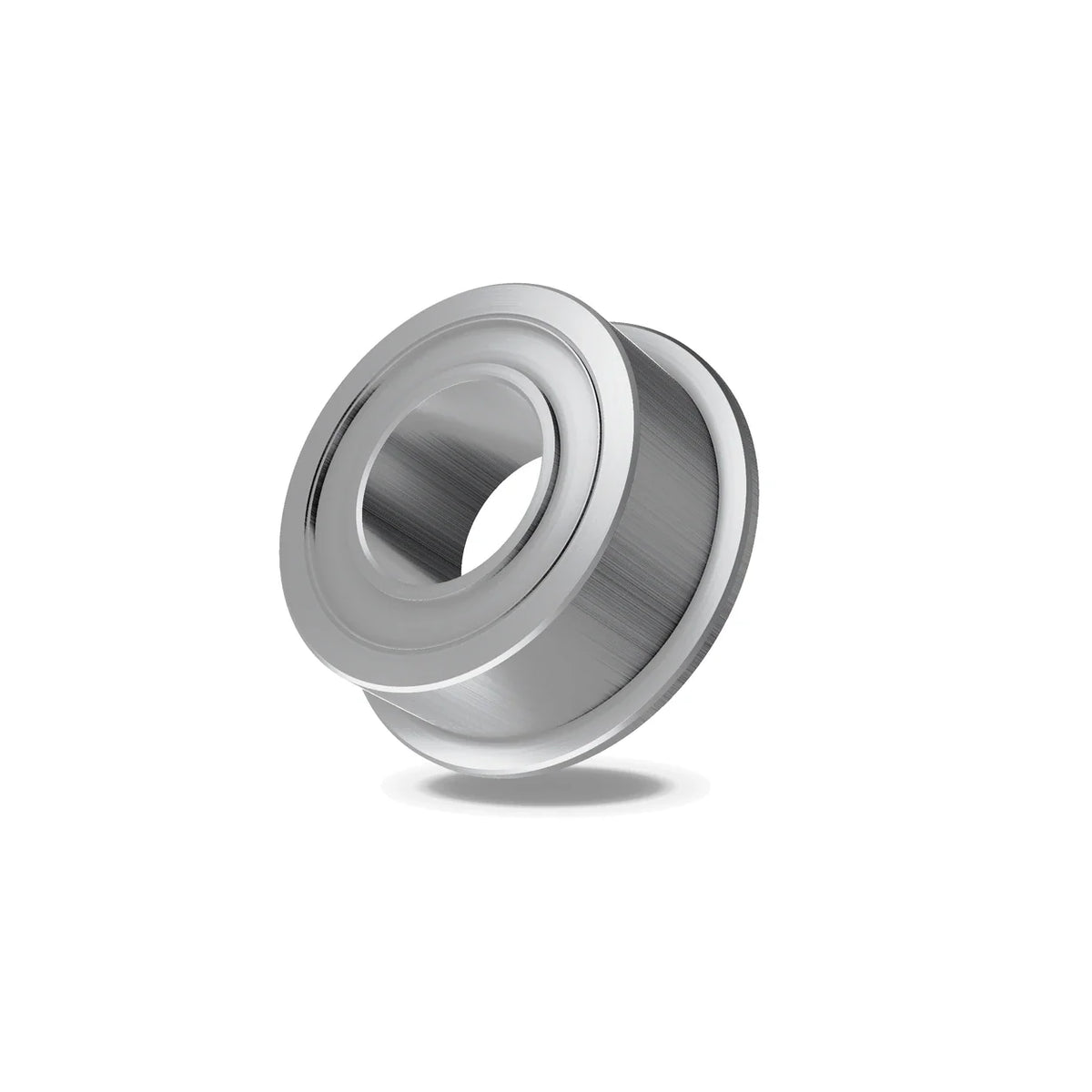

BECO SFMR106A Stainless Steel Flanged Miniature Ball Bearing Shielded
Available
The BECO stainless flanged miniature deep groove ball bearing carries an integral flange that locates the outer ring against the face of the housing, so no separate shoulder, circlip or spacer is needed.
Rings and balls are hardened stainless steel; the cage and shields are AISI 304. That is what lets them work in damp plant, wash-down areas and outdoor gear where a standard bearing corrodes. Shielded on both sides and greased for life, with a working range of -20°C to +100°C and standard radial internal clearance.
BECO do not recommend this range where acids, salts or sea water are present. If that is the job you have in front of you, give us a call and we will get the right one for you.
At a glance
| Bearing material | Hardened stainless steel rings and balls; AISI 304 cage and shields |
|---|---|
| Sealing | ZZ stainless steel shields, both sides |
| Lubrication | Greased for life — no re-lubrication required |
| Operating range | -20°C to +100°C |
| Radial internal clearance | Standard |
| Series | miniature series |
| Bore range | 6 mm (1 size) |
- Integral flange locates the bearing axially — no shoulder, circlip or spacer needed in the housing
- Corrosion-resistant throughout the rotating parts — holds up to moisture, wash-down and outdoor exposure
- Shielded and greased for life — less drag than a contact seal, and nothing to re-lubricate
Full specifications, applications and features are in the tabs below.
