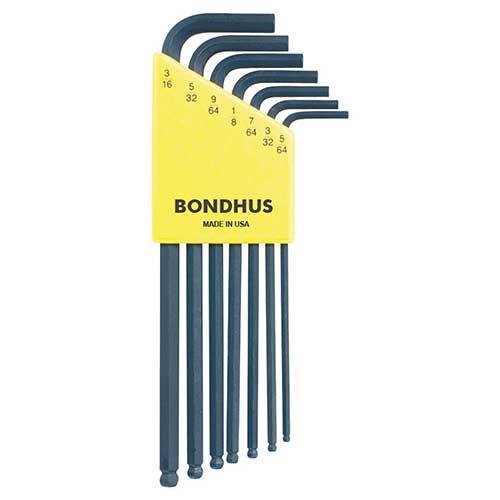

Bondhus BD10945 Ball End L-Wrench Imperial Set (5/64 - 3/16") 7 Pieces
Available
The Bondhus BD10945 is a 7-piece set of long ball end L-wrenches in inch sizes, from 5/64" to 3/16". It suits maintenance fitters, machine assemblers and mechanics who need to turn socket head screws that are awkward to reach.
An L-wrench has a long arm for leverage and a short arm that goes into the screw. The ball end has a rounded tip, so the key still engages when it is tilted. The ball end works at a 25 degree angle. This is the smallest of the inch long ball end sets. BD10938 adds 7/32" and 1/4", and BD10937 covers .050" to 3/8".
Where this product is used
- Turning socket head screws that are hard to reach straight on
- Machine maintenance and assembly where saving time matters, as the ball end funnels the tool into the screw
- Working in hard to reach places with the key held at a 25 degree angle
Features
- 7 ball end L-wrenches in the sizes 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16"
- Long length series
- Ball end works at a 25 degree angle and funnels the tool into the screw quickly
- Chamfered tips help the tool seat fully in the screw head
- ProGuard finish is corrosion resistant and resists solvents
- Made from Protanium high torque steel, heat treated for more torque and longer tool life
- Colour-coded case: yellow for inch sets and red for metric sets
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Part number | BD10945 |
| Model | BLX7 |
| Pieces | 7 |
| Sizes | 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16" |
| Length series | Long |
| Tip type | Ball end |
| Finish | ProGuard |
| Steel | Protanium high torque steel |
| Ball end working angle | 25 degrees |
Supplied with
- 7 L-wrenches: 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16"
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus BD10945 Ball End L-Wrench Imperial Set (5/64 - 3/16") 7 Pieces
SKU: A0131897 | Model: BD10945
The BD10945 is a 7-piece set of long ball end L-wrenches covering 5/64" to 3/16". The ball end works at a 25 degree angle, and the keys are made from Protanium high torque steel with a ProGuard finish.
