Bondhus BD12245 Hex End L-Wrench Short Imperial (5/64 - 3/16") 7 Pieces
Available
The Bondhus BD12245 is a 7-piece set of short hex end L-wrenches in inch sizes, from 5/64" to 3/16". It suits maintenance fitters, machine assemblers and mechanics who can get straight onto the screw and need a plain hex key.

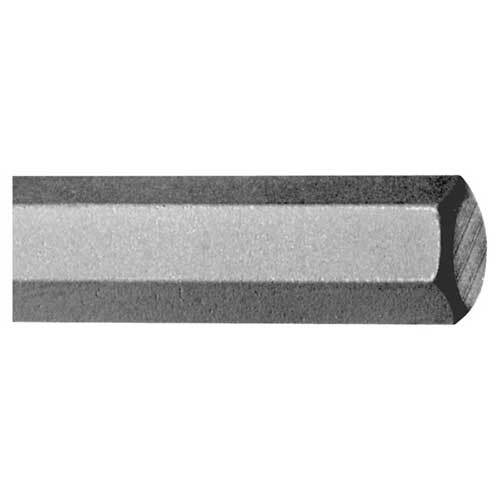

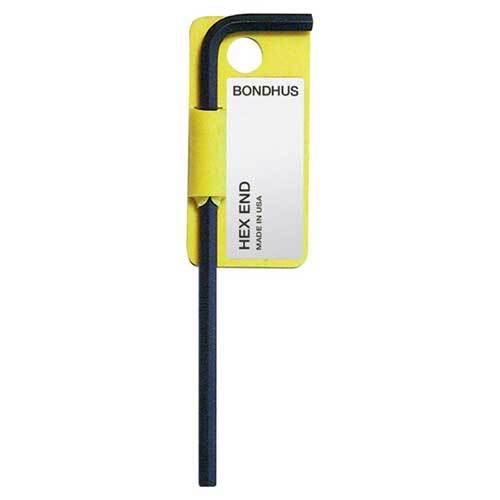

A hex end key has a flat, six-sided tip with no ball. The chamfered tip helps it seat in the screw head, and the sharp corners transfer more torque and reduce stripping. This is the short series. At 1/8" a short key is 58mm (2.3") overall, against 95mm (3.8") for the long series. If you need sizes above 3/16", BD12237 has 13 short keys up to 3/8", and BD12137 is the long version.
Where this product is used
- Turning hex socket screws where the key can go in straight
- Machine maintenance and assembly where a firm fit in the screw head matters
- Keeping a range of inch hex sizes in a workshop kit
Features

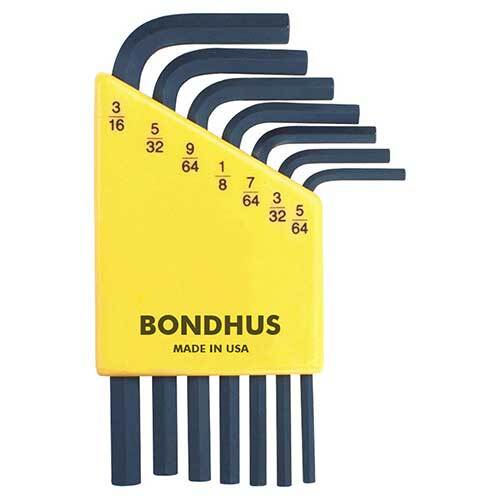

- 7 hex end L-wrenches in the sizes 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16"
- Short length series
- Chamfered tips help the tool seat in the screw head
- Sharp corners transfer more torque and reduce stripping
- Precision machined for ease of use and a close fit
- ProGuard finish is corrosion resistant and resists solvents
- Made from Protanium high torque steel, heat treated for more torque and longer tool life
- Colour-coded case: yellow for inch sets and red for metric sets
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Part number | BD12245 |
| Model | HLX7S |
| Pieces | 7 |
| Sizes | 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16" |
| Length series | Short |
| Tip type | Hex end |
| Finish | ProGuard |
| Steel | Protanium high torque steel |
Supplied with
- 7 L-wrenches: 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 3/16"
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus BD12245 Hex End L-Wrench Short Imperial (5/64 - 3/16") 7 Pieces
SKU: A0131903 | Model: BD12245
The BD12245 is a 7-piece set of short hex end L-wrenches covering 5/64" to 3/16". The tips are chamfered to seat in the screw head, and the sharp corners transfer more torque and reduce stripping.
