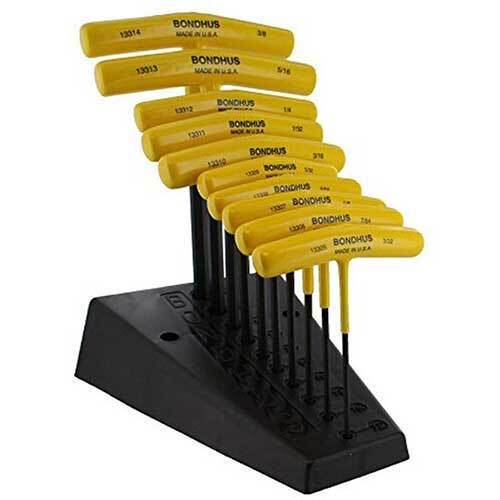

Bondhus BD13390 Hex End T-Handle with Stand (3/32 - 3/8") 10 Pieces
Available
The Bondhus BD13390 is a set of ten imperial hex end T-handles from 3/32" to 3/8", supplied with a stand. It gives maintenance fitters, machine assemblers and mechanics every common imperial hex size in one place on the bench or the wall.
A T-handle is a hex key with a handle across the top, so you grip it in your whole hand and turn it with your palm. Bondhus makes the handles from Protanium High Torque Steel in the U.S.A. And finishes them with ProGuard, which gives strong corrosion protection. The handle is solid steel with a welded handle and blade joint and a smooth, non-porous coating that runs along the blade. Graduated length means each size has its own overall length, so you can pick the right one by feel. In the graduated range the single T-handles run from 105mm overall at 3/32" to 211mm at 3/8". For the metric equivalent with a stand, see the BD13389 (2mm to 10mm, 8 pieces).
Where this product is used
- Machine maintenance and repair on imperial hex socket screws
- Assembly and setup work that needs several hex sizes close at hand
- Bench or wall storage with the stand, so each size is easy to find
Features
- 10 hex end T-handles: 3/32" to 3/8"
- Supplied with a molded stand that can be used free standing or wall mounted, with the sizes clearly marked
- Graduated length, so the handles get longer as the size goes up
- Yellow handles identify inch sizes
- Solid steel handle with a welded handle and blade connection
- Smooth, non-porous handle coating that extends along the blade
- Chamfered hex tips fit snugly and leave no burrs
- ProGuard finish for corrosion protection
- Protanium High Torque Steel, made in the USA
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Model | BD13390 |
| Part number | BD13390 |
| Model code | HTX10/S |
| Type | Hex end T-handle set |
| Pieces | 10 |
| Hex sizes | 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16 and 3/8" |
| Length | Graduated |
| Stand | Included (inch stand 17936) |
| Contents | 10 T-handles and the inch stand |
| Finish | ProGuard |
| Material | Protanium High Torque Steel |
| Origin | Made in the U.S.A. |
| Handle colour | Colour coded: yellow inch, red metric |
Supplied with
- 10 hex end T-handles, 3/32" to 3/8"
- Molded T-handle stand
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus BD13390 Hex End T-Handle with Stand (3/32 - 3/8") 10 Pieces
SKU: A0131968 | Model: BD13390
The BD13390 is the 10-piece imperial hex end T-handle set with stand. It covers 3/32, 7/64, 1/8, 9/64, 5/32, 3/16, 7/32, 1/4, 5/16 and 3/8" in graduated lengths. The stand holds the set on the bench or the wall, and the sizes are marked on it.
