Bondhus BD15749 1.27mm Ball End L-Wrench (72mm)
Available

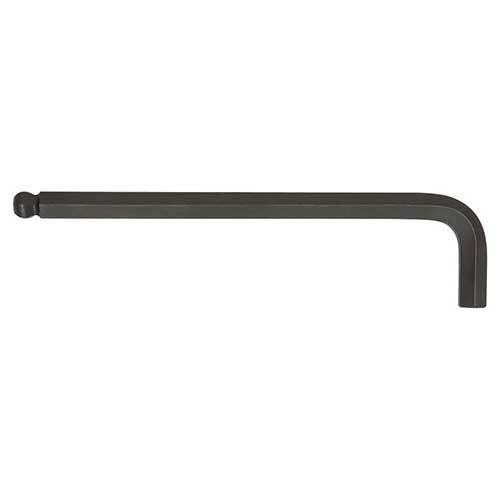

The Bondhus BD15749 is a 1.27mm long series ball end L-wrench. It is 72mm (2.8") long with a short arm of 13mm (0.53"). This is the smallest ball end size in the Bondhus tables, and it suits maintenance fitters, machine assemblers and mechanics working on very small socket head screws.

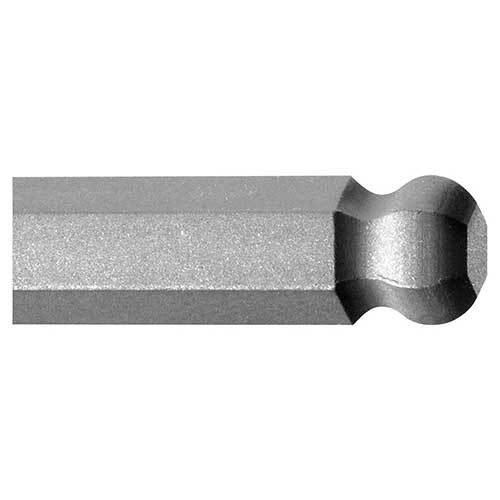

An L-wrench has a long arm for leverage and a short arm that goes into the screw. The ball end has a rounded tip, so the key still engages when it is tilted. The ball end works at a 25 degree angle. Its ball end machining keeps the surfaces smooth and the corners sharp and clean, even on a tool as small as .050" (1.27mm).
Where this product is used
- Turning very small socket head screws that are hard to reach straight on
- Fine assembly and maintenance work where a tilted key is needed
- Working at a 25 degree angle with the ball end
Features
- 1.27mm ball end L-wrench, 72mm (2.8") long
- Short arm of 13mm (0.53")
- Ball end works at a 25 degree angle and funnels the tool into the screw quickly
- Chamfered tips help the tool seat fully in the screw head
- ProGuard finish is corrosion resistant and resists solvents
- Made from Protanium high torque steel, heat treated for more torque and longer tool life
- Long length series
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Part number | BD15749 |
| Size | 1.27mm |
| Length | 72mm (2.8") |
| Short arm length | 13mm (0.53") |
| Tip type | Ball end |
| Length series | Long |
| Finish | ProGuard |
| Steel | Protanium high torque steel |
| Ball end working angle | 25 degrees |

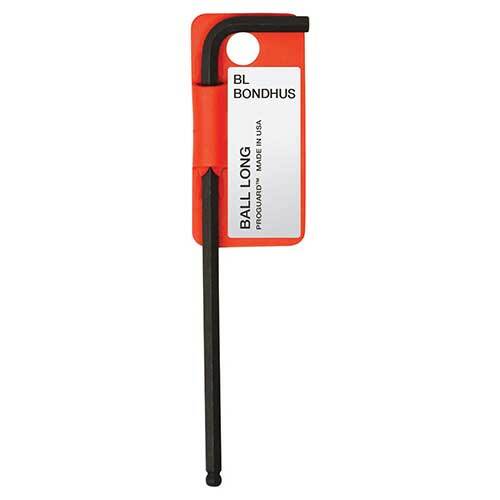

| Packaging | Tagged and barcoded single |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus BD15749 1.27mm Ball End L-Wrench (72mm)
SKU: A0131970 | Model: BD15749
The BD15749 is the 1.27mm long ball end L-wrench. It is 72mm (2.8") long, with a 13mm (0.53") short arm. The ball end works at a 25 degree angle.
