Bondhus BD16099 Ball End L-Wrench Metric XL (1.5 - 10mm) 9 Pieces
Available

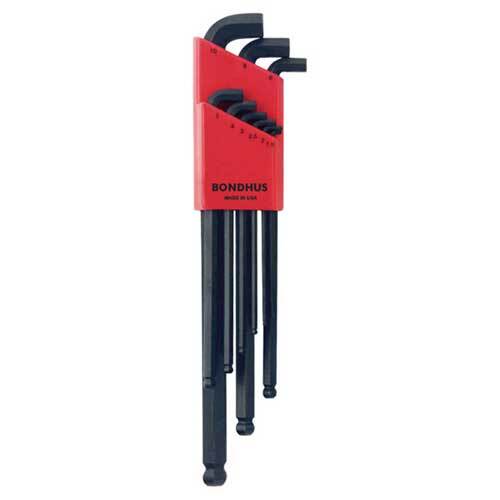

The Bondhus BD16099 is a 9-piece set of extra long ball end L-wrenches in metric sizes, from 1.5 to 10mm. It suits maintenance fitters, machine assemblers and mechanics who need to turn socket head screws that are awkward to reach.
An L-wrench has a long arm for leverage and a short arm that goes into the screw. The ball end has a rounded tip, so the key still engages when it is tilted. The ball end works at a 25 degree angle. It has the same sizes as the standard long metric set 10999 in a longer key: at 6mm it is 172mm (6.8") against 139mm (5.5"), and at 10mm it is 213mm (8.4") against 171mm (6.7"). The short arm stays the same length.
Where this product is used
- Turning socket head screws that are hard to reach straight on
- Machine maintenance and assembly where saving time matters, as the ball end funnels the tool into the screw
- Working in hard to reach places with the key held at a 25 degree angle
Features
- 9 ball end L-wrenches in the sizes 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm
- Extra long length series, longer than the standard long keys
- Ball end works at a 25 degree angle and funnels the tool into the screw quickly
- Chamfered tips help the tool seat fully in the screw head
- ProGuard finish is corrosion resistant and resists solvents
- Made from Protanium high torque steel, heat treated for more torque and longer tool life
- Colour-coded case: yellow for inch sets and red for metric sets
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Part number | BD16099 |
| Model | BLX9MXL |
| Pieces | 9 |
| Sizes | 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm |
| Length series | Extra Long |
| Tip type | Ball end |
| Finish | ProGuard |
| Steel | Protanium high torque steel |
| Ball end working angle | 25 degrees |
Supplied with
- 9 L-wrenches: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus BD16099 Ball End L-Wrench Metric XL (1.5 - 10mm) 9 Pieces
SKU: A0131975 | Model: BD16099
The BD16099 is a 9-piece set of extra long ball end L-wrenches covering 1.5 to 10mm. The ball end works at a 25 degree angle, and the keys are made from Protanium high torque steel with a ProGuard finish.
