Bondhus BD32434 Tamper Resistant TorxL-Wrench Set (TR9-TR40) 8 Pieces
Available

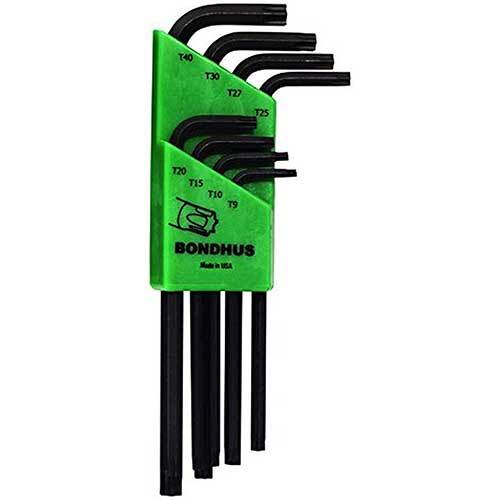

The Bondhus BD32434 is a set of 8 long arm tamper resistant Torx L-wrenches, from TR9 to TR40. It is for maintenance fitters, mechanics and machine assemblers who need a full run of sizes for tamper resistant Torx screws. Tamper resistant Torx screws have a small post in the centre of the head, so a standard Torx key will not go in. The tips on these keys are made for those screws. These wrenches fit all Torx and Star tamper resistant screws.
The long arm length runs from 74mm on the TR9 to 125mm on the TR40. The wrenches have a broad contact surface for deep lobe engagement, and straight vertical sidewalls that help stop the key camming out. The finish is Bondhus ProGuard and the case is colour-coded. If you want the same sizes in one fold-up handle, see the BD12638.
Where this product is used
- Undoing and tightening tamper resistant Torx screws in maintenance and assembly
- Keeping a full run of tamper resistant sizes from TR9 to TR40 in one case
- Mechanics and fitters working on equipment with tamper resistant Torx fasteners
Features
- 8 long arm L-wrenches: TR9, TR10, TR15, TR20, TR25, TR27, TR30 and TR40
- Fits all Torx and Star tamper resistant screws
- Long arm length from 74mm (TR9) to 125mm (TR40)
- Broad contact surface for deep lobe engagement
- Straight, vertical sidewalls to help stop cam-out
- ProGuard finish
- Colour-coded case
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Model | BD32434 |
| Part number | BD32434 |
| Type | Tamper resistant Torx L-wrench set, long arm |
| Model | TR-TL8 |
| Pieces | 8 |
| Sizes | TR9, TR10, TR15, TR20, TR25, TR27, TR30, TR40 |
| Finish | ProGuard |
| Fits | All Torx and Star tamper resistant screws |
| TR9 long arm / short arm | 74mm / 16mm |
| TR10 long arm / short arm | 80mm / 19mm |
| TR15 long arm / short arm | 84mm / 20mm |
| TR20 long arm / short arm | 91mm / 20mm |
| TR25 long arm / short arm | 98mm / 22mm |
| TR27 long arm / short arm | 106mm / 24mm |
| TR30 long arm / short arm | 116mm / 26mm |
| TR40 long arm / short arm | 125mm / 28mm |
Supplied with
- 8 long arm tamper resistant Torx L-wrenches, TR9 to TR40
- Colour-coded case
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus BD32434 Tamper Resistant TorxL-Wrench Set (TR9-TR40) 8 Pieces
SKU: A0131982 | Model: BD32434
The BD32434 is 8 long arm tamper resistant Torx L-wrenches in one set: TR9, TR10, TR15, TR20, TR25, TR27, TR30 and TR40. The long arm is 74mm on the TR9, 91mm on the TR20 and 125mm on the TR40, with a short arm of 16mm to 28mm.
