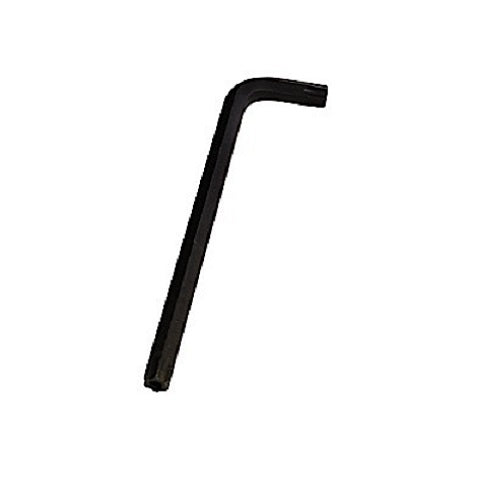

Bondhus TR7 Tamper Resistant Torx L-Wrench BD32407
Available
Bondhus long arm tamper resistant Torx L-wrenches in 9 sizes, TR7 to TR30, sold as single keys in a tagged and barcoded pack. They are for maintenance fitters, mechanics and machine assemblers who work on tamper resistant Torx screws. Tamper resistant Torx screws have a small post in the centre of the head, so a standard Torx key will not go in. The tips on these keys are made for those screws. These keys fit all Torx and Star tamper resistant screws.
Pick the size on the screw head. The long arm runs from 61mm (TR7) to 116mm (TR30) and the short arm from 16mm to 26mm. The tip has a broad contact surface for deep lobe engagement and straight vertical sidewalls that help stop the key camming out, and the finish is Bondhus ProGuard. For TR40 see the BD32440, and for 8 sizes in one set see the BD32434.
Where this product is used
- Undoing and tightening tamper resistant Torx screws in maintenance and assembly
- Replacing a worn or lost tamper resistant key from a set
- Equipment with tamper resistant Torx fasteners
Features
- 9 sizes: TR7, TR8, TR9, TR10, TR15, TR20, TR25, TR27 and TR30
- Fits all Torx and Star tamper resistant screws
- Long arm from 61mm (TR7) to 116mm (TR30)
- Broad contact surface for deep lobe engagement
- Straight, vertical sidewalls to help stop cam-out
- ProGuard finish
- Tagged and barcoded packaging
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bondhus |
| Type | Tamper resistant Torx L-wrench, long arm, single |
| Finish | ProGuard |
| Fits | All Torx and Star tamper resistant screws |
| Packaging | Tagged and barcoded |
| TR7 (BD32407) long arm / short arm | 61mm / 16mm |
| TR8 (BD32408) long arm / short arm | 67mm / 16mm |
| TR9 (BD32409) long arm / short arm | 74mm / 16mm |
| TR10 (BD32410) long arm / short arm | 80mm / 19mm |
| TR15 (BD32415) long arm / short arm | 84mm / 20mm |
| TR20 (BD32420) long arm / short arm | 91mm / 20mm |
| TR25 (BD32425) long arm / short arm | 98mm / 22mm |
| TR27 (BD32427) long arm / short arm | 106mm / 24mm |
| TR30 (BD32430) long arm / short arm | 116mm / 26mm |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| TR7 | BD32407 | A0106138 |
| TR8 | BD32408 | A0106139 |
| TR9 | BD32409 | A0106140 |
| TR10 | BD32410 | A0106141 |
| TR15 | BD32415 | A0106142 |
| TR20 | BD32420 | A0106143 |
| TR25 | BD32425 | A0106144 |
| TR27 | BD32427 | A0106145 |
| TR30 | BD32430 | A0106146 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bondhus Torx Hex Key Tamper Resistant L-Wrenches: TR7
SKU: A0106138 | Model: BD32407
The TR7 (BD32407) has a long arm of 61mm and a short arm of 16mm, and it fits size TR7 tamper resistant Torx and Star screws. The sizes either side are TR8 at 67mm.
