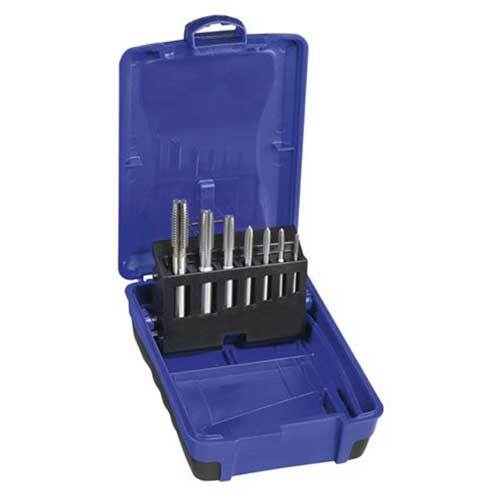

Metric Intermediate Tap Set

• M3 - M12 metric coarse intermediate tap set.

About Metric Coarse

• Angle of thread is 60 degrees.
• The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well. Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength. The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).

About Intermediate Taps

• Have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
• Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

Contents

Title
Qty
3 x 0.5mm MC Intermediate HSS Tap
1
4 x 0.7mm MC Intermediate HSS Tap
1
5 x 0.8mm MC Intermediate HSS Tap
1
6 x 1mm MC Intermediate HSS Tap
1
8 x 1.25mm MC Intermediate HSS Tap
1
10 x 1.5mm MC Intermediate HSS Tap
1
12 x 1.75mm MC Intermediate HSS Tap
1
