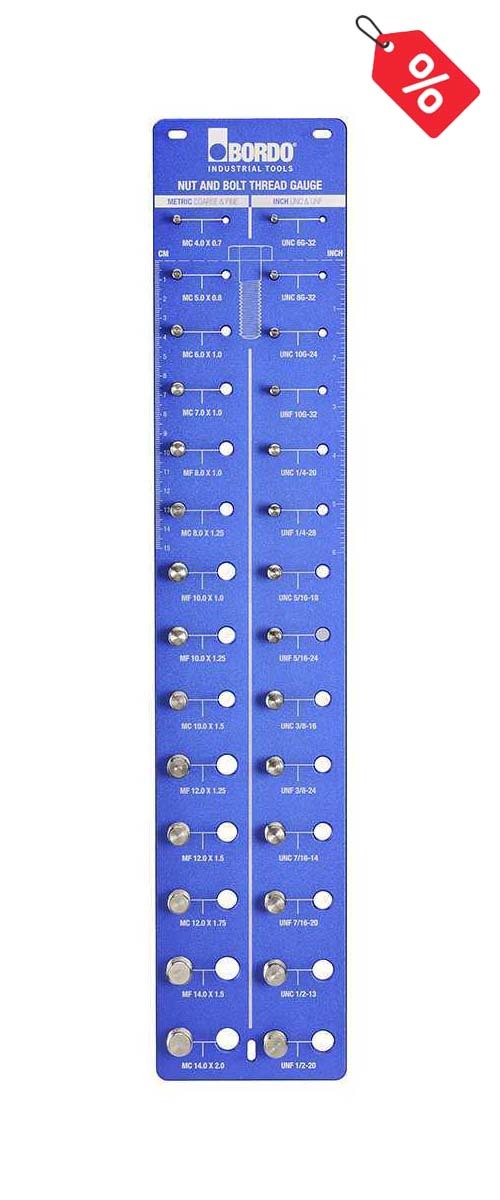

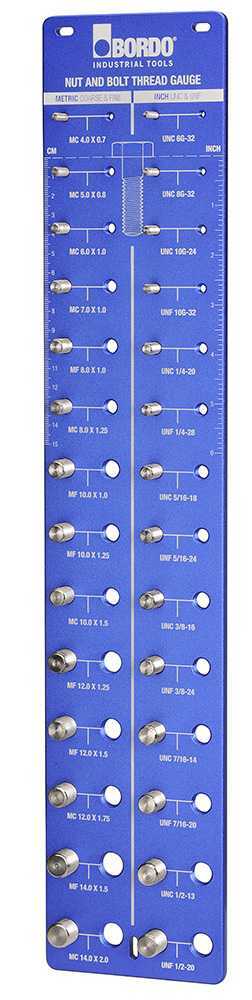

Bordo 3020-TT Nut and Bolt Thread 3020-TT | AIMS Industrial

Product Features

• On the left hand side are female threaded holes and male threaded studs to identify common metric threads from M4x0.7 to M14x2.0
• On the right hand side are female threaded holes and male threaded studs to identify common inch threads from 6G-32 to 1/2-20
• Side rulers in metric and inch for measuring bolt length.
• Constructed from heavy gauge anodised aluminium the Bordo Nut & Bolt Thread Gauge can be easily wall mounted at POS, repair facility, machine shop are workshop.
• Metric: M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.5, M14x2.0
• Inch: 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20

Specifications

• On the left hand side are female threaded holes and male threaded studs to identify common metric threads from M4x0.7 to M14x2.0
• On the right hand side are female threaded holes and male threaded studs to identify common inch threads from 6G-32 to 1/2-20
• Side rulers in metric and inch for measuring bolt length.
• Metric: M4x0.7, M5x0.8, M6x1.0, M7x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.5, M14x2.0
• Inch: 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
