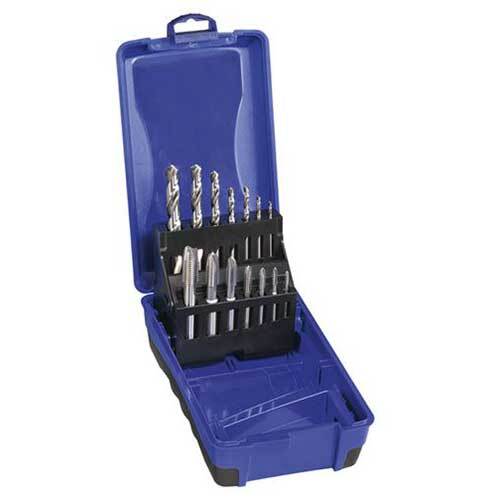

Metric Spiral Point Tap and Drill Set

• M3 - M12 Metric Coarse Spiral Point Tap and Drill Set.

About Metric Coarse

• Angle of thread is 60 degrees.
• The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
• Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
• The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).

About Intermediate Taps

• Are used for machine tapping blind and through holes where there is sufficient clearance to accomodate chips.
• Manufactured from HSS-Co5 this modern design tap uses straight flutes supplemented by angular cutting faces at the point to produce a fine finish on the threads.
• Shallower flutes achieve a stronger cross section allowing the tap to withstand greater cutting forces.
• M2-HSS premium quality jobber drills in tapping sizes to suit Spiral Point taps.

Contents

Title
Qty
3 x 0.5mm HSS Cobalt MC Spiral Point Tap
1
4 x 0.7mm HSS Cobalt MC Spiral Point Tap
1
5 x 0.8mm HSS Cobalt MC Spiral Point Tap
1
6 x 1mm HSS Cobalt MC Spiral Point Tap
1
8 x 1.25mm HSS Cobalt MC Spiral Point Tap
1
10 x 1.5mm HSS Cobalt MC Spiral Point Tap
1
12 x 1.75mm HSS Cobalt MC Spiral Point Tap
1
2.5mm Bright HSS Jobber
1
3.3mm Bright HSS Jobber
1
4.2mm Bright HSS Jobber
1
5mm Bright HSS Jobber
1
6.8mm Bright HSS Jobber
1
8.5mm Bright HSS Jobber
1
10.2mm Bright HSS Jobber
1
