UNC Spiral Point Tap Set | AIMS Industrial

Product Features

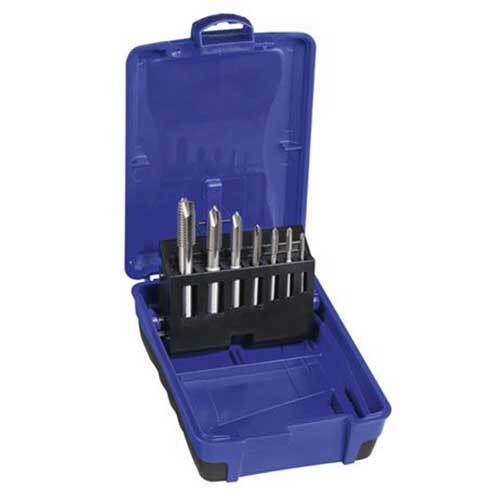

• 6G-1/2" HSS-Co5 (Cobalt) UNC Spiral Point (Gun Nose) machine tap set.
• Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
• Gun nose taps have straight flutes supplemented by angular cutting faces at the lead.
• The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
• Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
• The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes. This allows a stronger cross section throughout the tap.

Specifications

• 6G-1/2" HSS-Co5 (Cobalt) UNC Spiral Point (Gun Nose) machine tap set.
• Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
• Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
• Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
• The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
