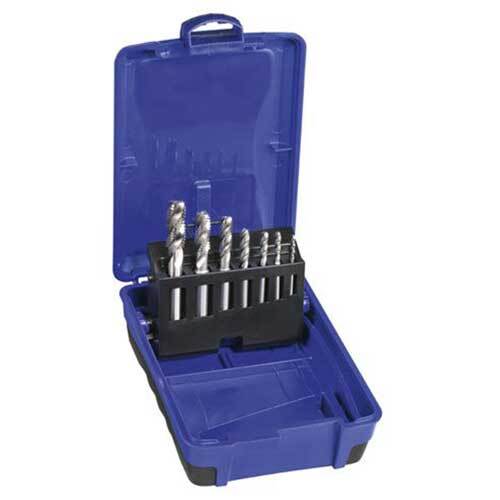

UNF Spiral Flute Tap Set

• 6G - 1/2" UNF Spiral Flute Tap Set.

About UNF Unified National Fine

• This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA Canada and the UK.
• The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
• The thread is described by its major diameter and the number of threads per inch of length (TPI).
• When used on external threads this series has greater tensile stress area than coarse threads of the same size.
• Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
• Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.

About Spiral Flute Tap

• Are used for machine tapping in all blind hole applications especially in soft metals that produce long stringy swarf such as aluminium copper and magnesium.
• Manufactured from HSS-Co5 this modern design tap uses the shear action provided by the spiral flutes to draw the swarf out of the hole which minimises swarf clogging when tapping deeper holes.

Contents

Title
Qty
6G x 40 HSS Cobalt UNF Spiral Flute Tap
1
8G x 36 HSS Cobalt UNF Spiral Flute Tap
1
10G x 32 HSS Cobalt UNF Spiral Flute Tap
1
1/4" x 28 HSS Cobalt UNF Spiral Flute Tap
1
5/16" x 24 HSS Cobalt UNF Spiral Flute Tap
1
3/8" x 24 HSS Cobalt UNF Spiral Flute Tap
1
1/2" x 20 HSS Cobalt UNF Spiral Flute Tap
1
