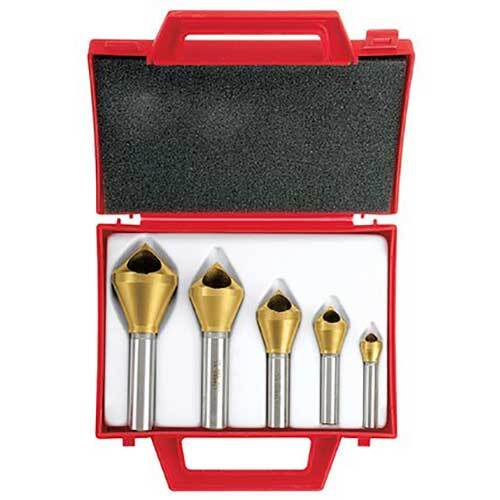

90° TiN Coated Cross Hole Countersink Set
- 5 Piece TiN Coated 90 degree Cross Hole Cobalt Countersink Set.
About Cross Hole Countersink
- For countersinking and deburring in a wide range of materials including ferrous and non-ferrous metals.
- The intersection of the hole and cone form the cutting edge on the tool.
- The cone is not truly symmetrical as it is essential that the cone retreats away from the cutting edge as the tool rotates.
- If this does not occur the cutting edge will lack clearance and rub rather than bite into the material.
- This clearance is referred to as cutting relief.
- The radially relieved single cutting edge provides fast stock removal with low vibration for chatter-free operation ensuring the smoothest finish.
- These tools are best used as deburring tools where a burr or sharp edge from a previous machining operation needs to be removed for cosmetic and safety reasons however they may be used in softer materials (such as wood or plastic) to create a countersunk hole for a screw.
- Titanium Nitride (TiN) Coated Countersinks have a very hard gold-colored surface finish.
- This coating is only a few microns thick and is achieved by Physical Vapour Deposition (PVD).
- This treatment results in reduced friction greater heat dissipation and reduced cold welding - which means higher speed and feed rates with greatly increased tool life.
- As with all surfaces, coated tool's performance will deteriorate after resharpening.
Contents
Title
Qty
10mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink
1
15mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink
1
20mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink
1
25mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink
1
30mm 90 Degree HSS Co5 TiN Coated Cross Hole Countersink
1
