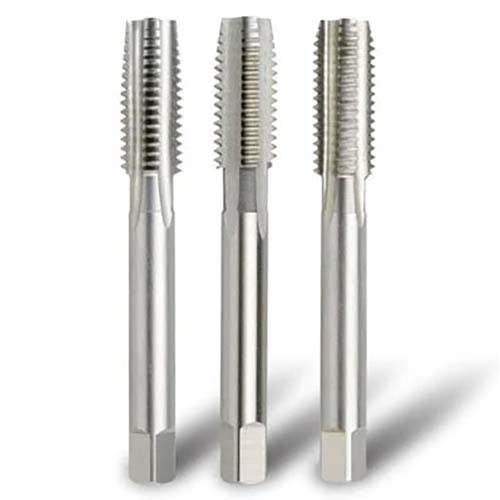

Bordo 1/4" x 26 TPI BSB Tap Set HSS Hand and Machine Tap
Available
The Bordo BSB Tap Set HSS Hand and Machine Tap - 3060 is part of Bordo's Australian range of tap sets, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Size (mm) | 5.3 |
|---|---|
| Diameter (inch) | 1/4 |
| Pitch/TPI | 26 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 66 |
| Thread Form Type | BSB |
Product Features
- British Standard Brass (BSB or simply "Brass")
- Brass tubing has a uniform wall thickness, irrespective of the tube diameter, therefore any thread cut on, or in, it needs to have the same depth, so 26 TPI is standard on all BSB diameters
- HSS BSB Hand and Machine Tap Set
- BSB is often confused with BS Cycle thread, the difference being that brass thread has an angle of 55° whereas Cycle is 60°
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo BSB Tap Set HSS Hand and Machine Tap - 3060: 1/4
SKU: A0201942 | Model: 3060-1/4TS
Diameter (inch) 1/4. Bordo BSB Tap Set HSS Hand and Machine Tap - 3060
HSS BSB Hand and Machine Tap Set.
British Standard Brass (BSB or simply "Brass").
Brass tubing has a uniform wall thickness, irrespective of the tube diameter, therefore any thread cut on, or in, it needs to have the same depth, so 26 TPI is standard on all BSB diameters.
BSB is often confused with BS Cycle thread, the difference being that brass thread has an angle of 55° whereas Cycle is 60°.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About BSB (British Standard Brass)
Brass tubing has a uniform wall thickness, irrespective of the tube diameter, therefore any thread cut on, or in, it needs to have the same depth, so 26 TPI is standard on all BSB diameters.
BSB is often confused with BS Cycle thread, the difference being that brass thread has an angle of 55° whereas Cycle is 60°.
