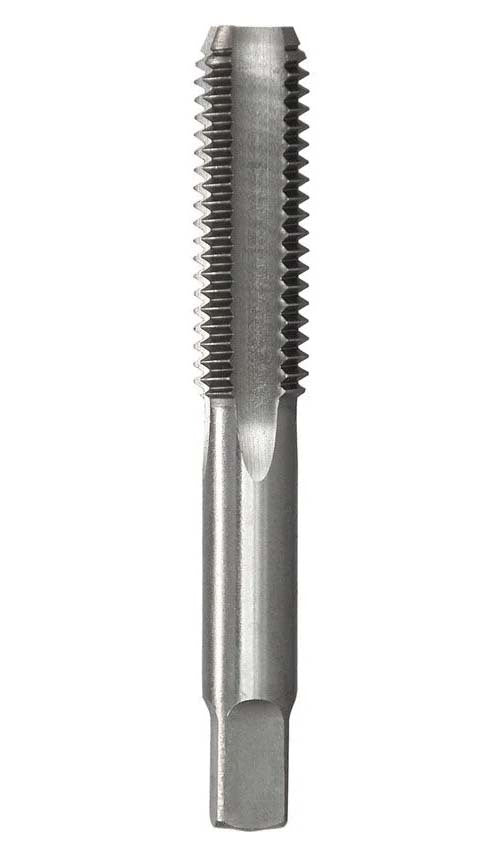

Bordo BSF Bottoming Chrome Alloy Hand Tap

• Chrome Alloy BSF Bottoming Hand Tap.
• Used as thread chasers to clean an existing thread.
• They can also be used to create a new female thread in non-ferrous metals and plastics.
• Chrome alloy taps are not suitable for creating precision, safety or critical threads.
• British Standard Fine thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter).
• The thread form was first introduced in 1908 and is specified in BS84:1956.
• When used on external threads this series has greater tensile stress area than coarse threads of the same size.
• Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
• Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.

About Bottoming Taps

• Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
• Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.

About BSF (British Standard Fine)

• This thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter).
• The thread form was first introduced in 1908 and is specified in BS84:1956.
• When used on external threads this series has greater tensile stress area than coarse threads of the same size.
• Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
• Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
