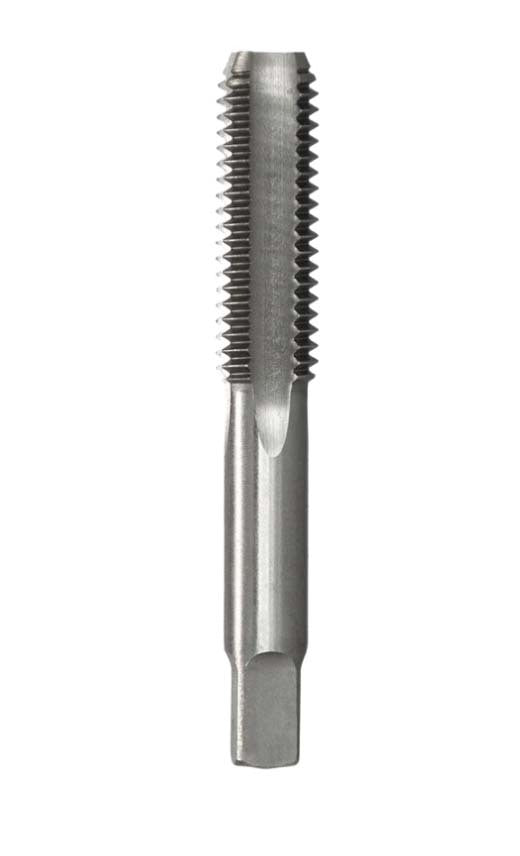

Bordo BSPF Bottoming Chrome 4246, 1/8
Available
The Bordo BSPF Bottoming Chrome Alloy Hand Tap - 4246 is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Where this product is used
- Applications
- Chrome alloy taps are not suitable for creating precision, safety or critical threads
Features
- Chrome Alloy BSPF (G Series) Bottoming Hand Tap
- British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling
- The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228
- Drill Size (mm): 8.8
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bordo |
| Drill Size (mm) | 8.8 |
| Diameter (inch) | 1/8 |
| Thread Per Inch (TPI) | 28 |
| Overall Length (OAL) mm | 54 |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 1/8 | A0200979 | |
| 1/4 | A0200980 | |
| 1/2 | A0200982 | |
| 1 | A0200985 | |
| 1-1/4 | A0200986 | |
| 1-1/2 | A0200987 | |
| 2 | A0200988 | |
| 3/8 | A0200981 | |
| 3/4 | A0200984 | |
| 5/8 | A0200983 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo BSPF Bottoming Chrome Alloy Hand Tap - 4246: 1/8
SKU: A0200979 | Model: 4246-1/8B
Diameter (inch) 1/8. Bordo BSPF Bottoming Chrome Alloy Hand Tap - 4246 Chrome Alloy BSPF (G Series) Bottoming Hand Tap. Used as thread chasers to clean an existing thread. They can also be used to create a new female thread in non-ferrous metals and plastics. Chrome alloy taps are not suitable for creating precision, safety or critical threads. British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling. The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228. Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole. Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
