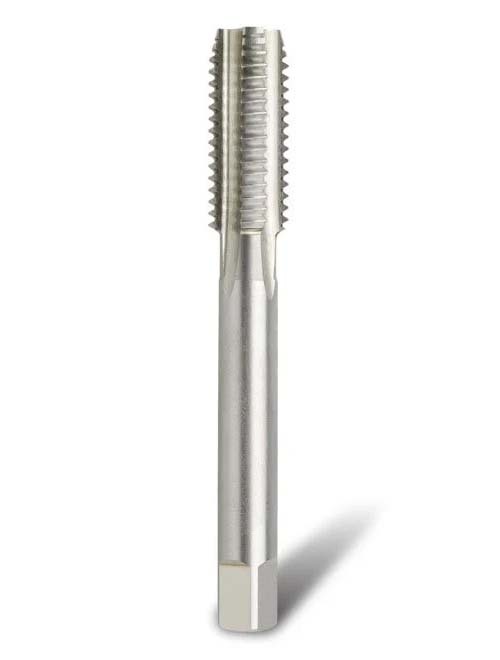

Bordo BSPF Bottoming HSS 3046, 1/8
Available
The Bordo BSPF Bottoming HSS Hand and Machine Tap - 3046 is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Where this product is used
- Applications
- Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use
Features
- British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling
- HSS BSPF Bottoming Hand and Machine Tap
- The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228
- Drill Size (mm): 8.8
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bordo |
| Drill Size (mm) | 8.8 |
| Diameter (inch) | 1/8 |
| Pitch/TPI | 28 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 59 |
| Thread Form Type | BSPF (G Series) |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 1/8 | A0202021 | |
| 1/4 | A0202022 | |
| 1/2 | A0202024 | |
| 1 | A0202028 | |
| 1-1/4 | A0202029 | |
| 1-1/2 | A0202030 | |
| 1-3/4 | A0202031 | |
| 2-1/4 | A0202032 | |
| 2-1/2 | A0202033 | |
| 2 | A0202034 | |
| 3/8 | A0202023 | |
| 3/4 | A0202026 | |
| 3 | A0202035 | |
| 5/8 | A0202025 | |
| 7/8 | A0202027 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo BSPF Bottoming HSS Hand and Machine Tap - 3046: 1/8
SKU: A0202021 | Model: 3046-1/8B
Diameter (inch) 1/8. Bordo BSPF Bottoming HSS Hand and Machine Tap - 3046 HSS BSPF Bottoming Hand and Machine Tap. British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling. The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228. Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole. Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap. Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
