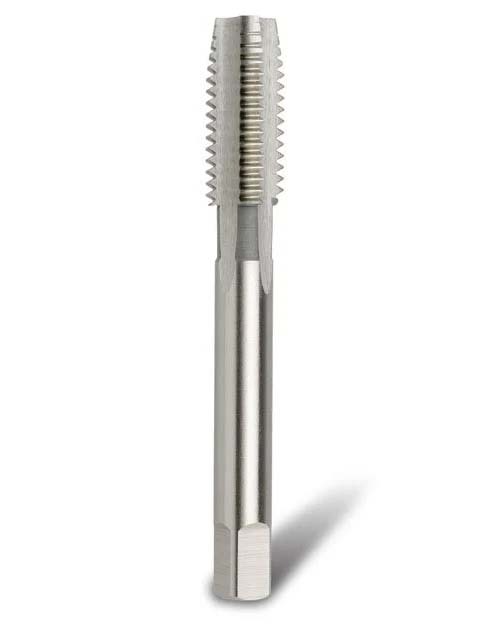

Bordo BSPF Intermediate HSS 3046, 1/8
Available
The Bordo BSPF Intermediate HSS Hand and Machine Tap - 3046 is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Where this product is used
- Applications
- Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use
Features
- British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling
- HSS BSPF Intermediate Hand and Machine Tap
- The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228
- Drill Size (mm): 8.8
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bordo |
| Drill Size (mm) | 8.8 |
| Diameter (inch) | 1/8 |
| Pitch/TPI | 28 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 59 |
| Thread Form Type | BSPF (G Series) |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 1/8 | A0202006 | |
| 1/4 | A0202007 | |
| 1/2 | A0202009 | |
| 1 | A0202013 | |
| 1-1/4 | A0202014 | |
| 1-1/2 | A0202015 | |
| 1-3/4 | A0202016 | |
| 2 | A0202017 | |
| 2-1/4 | A0202018 | |
| 2-1/2 | A0202019 | |
| 3/8 | A0202008 | |
| 3/4 | A0202011 | |
| 3 | A0202020 | |
| 5/8 | A0202010 | |
| 7/8 | A0202012 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo BSPF Intermediate HSS Hand and Machine Tap - 3046: 1/8
SKU: A0202006 | Model: 3046-1/8I
Diameter (inch) 1/8. Bordo BSPF Intermediate HSS Hand and Machine Tap - 3046 HSS BSPF Intermediate Hand and Machine Tap. British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling. The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228. Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole. Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
