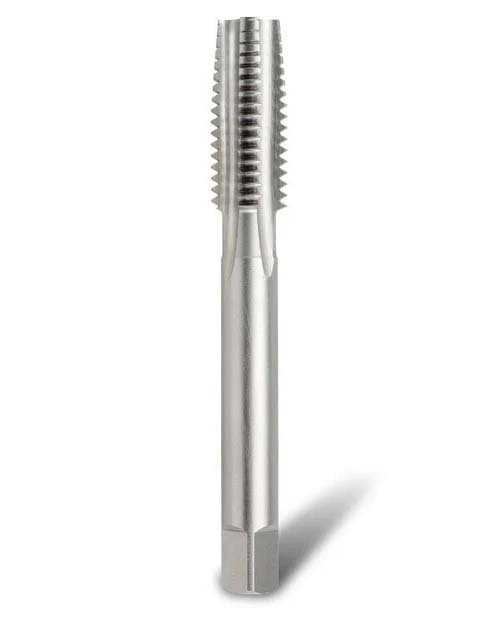

Bordo BSPF Taper HSS 3046, 1/4
Available
The Bordo BSPF Taper HSS Hand and Machine Tap - 3046 is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Where this product is used
- Applications
- Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use
Features
- British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling
- HSS BSPF Taper Hand and Machine Tap
- The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228
- Drill Size (mm): 8.8
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bordo |
| Drill Size (mm) | 8.8 |
| Diameter (inch) | 1/8 |
| Pitch/TPI | 28 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 59 |
| Thread Form Type | BSPF (G Series) |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 1/8 | A0201991 | |
| 1/4 | A0201992 | |
| 1/2 | A0201994 | |
| 1 | A0201998 | |
| 1-1/4 | A0201999 | |
| 1-1/2 | A0202000 | |
| 1-3/4 | A0202001 | |
| 2 | A0202002 | |
| 2-1/4 | A0202003 | |
| 2-1/2 | A0202004 | |
| 3/8 | A0201993 | |
| 3/4 | A0201996 | |
| 3 | A0202005 | |
| 5/8 | A0201995 | |
| 7/8 | A0201997 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo BSPF Taper HSS Hand and Machine Tap - 3046: 1/4
SKU: A0201992 | Model: 3046-1/4T
Diameter (inch) 1/4. Bordo BSPF Taper HSS Hand and Machine Tap - 3046 HSS BSPF Taper Hand and Machine Tap. British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling. The angle of thread is mainly 55° however for the US method some threads have a 60° angle. It is specified to JIS and ISO R228. Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes. Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
