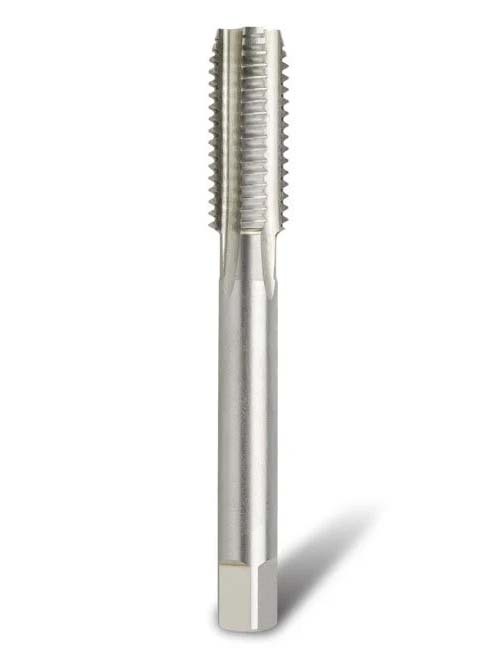

Bordo 1/8" x 28 TPI BSPT Bottoming HSS | AIMS Industrial

Product Features

• The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued as the flanks of the threads compress against each other
• The taper is "1 to 16", meaning that for each 16 mm increase in the distance from the end, the diameter increases by 1 mm

Applications

• Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use

Specifications

• BSPT has been widely adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread
• HSS BSPT Bottoming Hand and Machine Tap
• British Standard Pipe Taper (RC Series Pipe Taper) is based on the Whitworth thread form - a symmetrical V-thread with an angle of 55°
