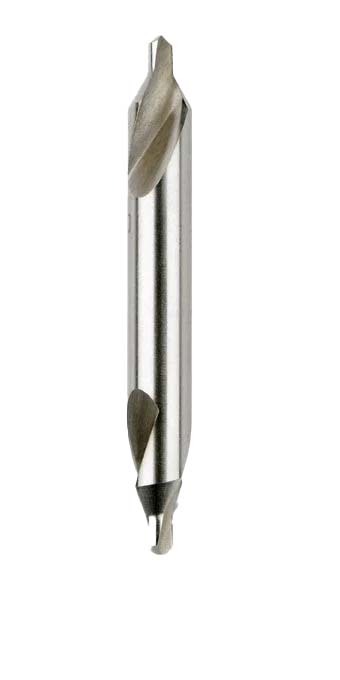

Bordo No.1 HSS Centre Drill Bit
Available
The Bordo HSS Centre Drill Bit is part of Bordo's Australian drill bit range, engineered for reliable performance in trade and industrial drilling applications.
Key Specifications
| Point Type / Angle | 118° / 60° |
|---|---|
| Group Code | CENT |
| Equivalent No. | 1 |
| Overall Length (OL) | 1-1/4" |
| Pilot Length (inch) | 3/64 |
| Body Diameter (inch) | 1/8 |
| Pilot Diameter (inch) | 3/64 |
| Material | tin |
Product Features
- Bright Finish HSS No.1 Centre Drill 118° / 60°
- They are designed to drill a small diameter pilot hole followed by a 60° countersink which provides a bearing surface for the 60° point of the lathe centre.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo HSS Centre Drill Bit: 1
SKU: A0205071 | Model: 2560-1
Equivalent No. 1. Bordo HSS Centre Drill Bit
HSS Centre Drill.
Bright Finish HSS Centre Drill 118° / 60°.
Centre Drills are used with a lathe to centre drill stock for mounting in the lathe.
They are designed to drill a small diameter pilot hole followed by a 60° countersink which provides a bearing surface for the 60° point of the lathe centre.
Centre drills are also used extensively with milling machines to accurately start holes.
The hole locations can be dialled in using the milling machine's calibrated hand wheels.
The hole is then started using the centre drill.
The large diameter shank on the centre drill holds the drill point right on centre.
Once the hole is started, the centre drill is replaced with a drill of the desired diameter and the finished hole is then drilled.
