Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)

Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)

SKU: A0202977

Type: Spiral Flute Tap

$43.20
$43.20
Inc. GST
⚙Cobalt Construction
⚙HSS Metric Coarse Spiral
📐Multiple Sizes Available
🔩Precise Thread Cutting
🏗Metalworking & Holemaking
☑High Speed Operation Rated

Available

Product Highlights −

Bordo HSS Cobalt Metric Coarse Spiral Point Tap (3120)

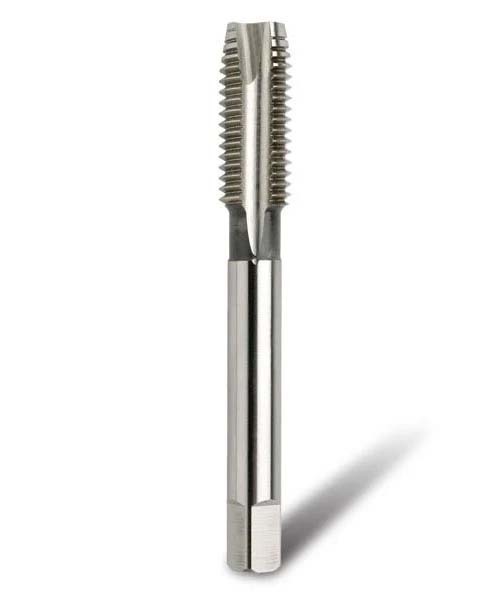

  • HSS-Co5 (Cobalt) Metric Coarse Spiral Point (Gun Nose) machine tap.
  • Cobalt HSS taps are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
  • Gun nose taps have straight flutes supplemented by angular cutting faces at the lead.
  • The design of the cutting portion propels the swarf ahead of the tap leaving the flutes clear for the flow of coolant to the cutting teeth.
  • Primarily designed for use in through holes, these taps can be used in blind holes provided that there is ample clearance beyond the threaded section to accommodate the swarf.
  • The advantages of a gun nose tap are the shearing action of the angular cutting faces, which produces a fine finish on the threads and shallower flutes.
  • This allows a stronger cross section throughout the tap.
  • Metric Coarse taps have a 60° angle of thread.
  • The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).
