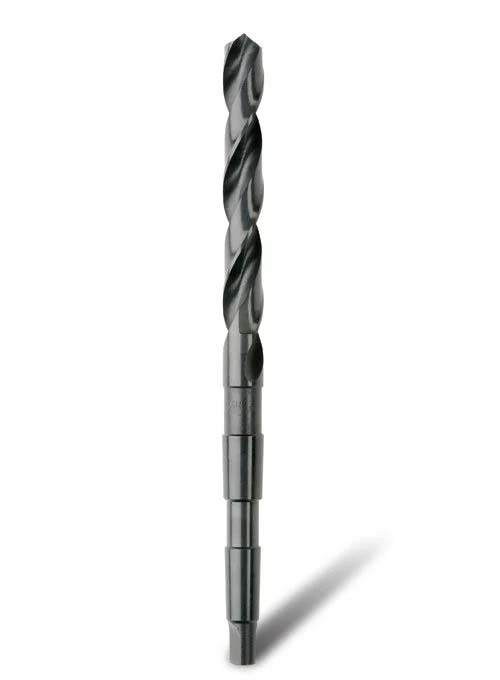

Bordo 5mm HSS Morse Taper Shank Drill Bit
Available
The Bordo HSS Morse Taper Shank Drill Bit is part of Bordo's Australian drill bit range, engineered for reliable performance in trade and industrial drilling applications.
Key Specifications
| Diameter (mm) | 5 |
|---|---|
| Flute Type | 30° Helix |
| Flute (mm) | 52 |
| Morse Taper | 1 |
| Overall Length (mm) | 133 |
| Type of Point | 118° Notched |
Product Features
- DIN345
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo HSS Morse Taper Shank Drill Bit: 5
SKU: A0200093 | Model: 2608-5.00
This is the 5mm diameter option of the Bordo HSS Morse Taper Shank Drill Bit. Key details for this option: flute type 30° Helix, type of point 118° Notched, overall length 133mm.
Bordo HSS Morse Taper Shank Drill Bit
DIN345.
Taper Shank Twist Drills have conical shanks suitable for direct fitting into the tapered spindle holes of drill presses and other machines, lathe tailstocks and driving sleeves or sockets.
This coupling is best described as a male cone within a female cone, and has self-locking and self-centering benefits.
HSS with 118° notched point suitable for a variety of drilling applications and conditions.
To achieve optimal performance and extended tool life, suitable lubricating/cutting oils or coolant fluids are recommended for most drilling operations.
Notched Point
A variation on standard chisel point providing faster starting and reduced drill wander. Suitable for general purpose drilling.
Drill Bit Surface Treatment
Black Finish (also called blue finish).
A black finish is achieved by steam tempering, a thermal process resulting in a porous tool coating.
This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life.
Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.
