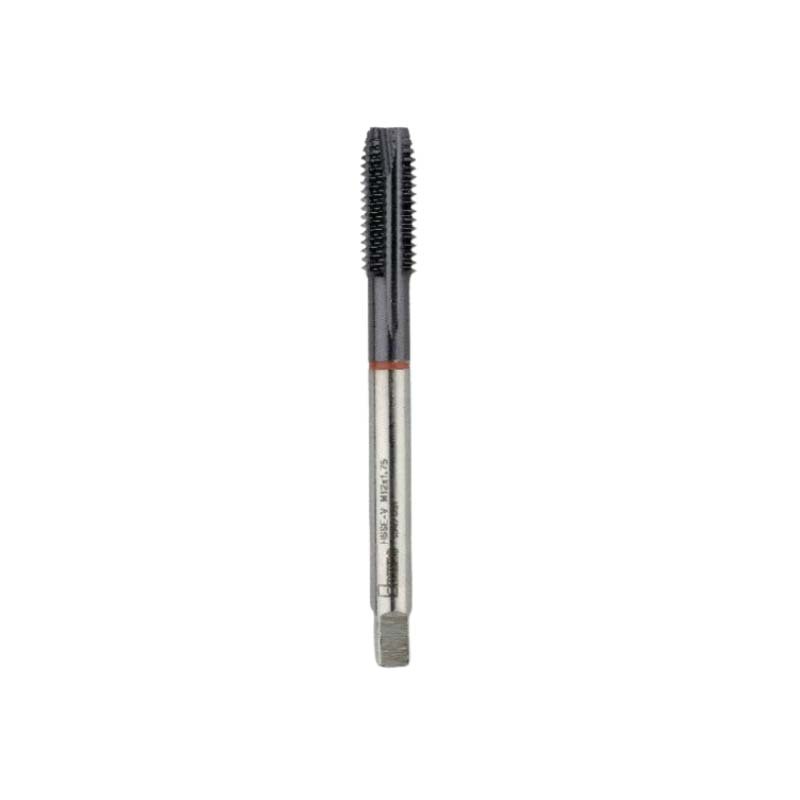

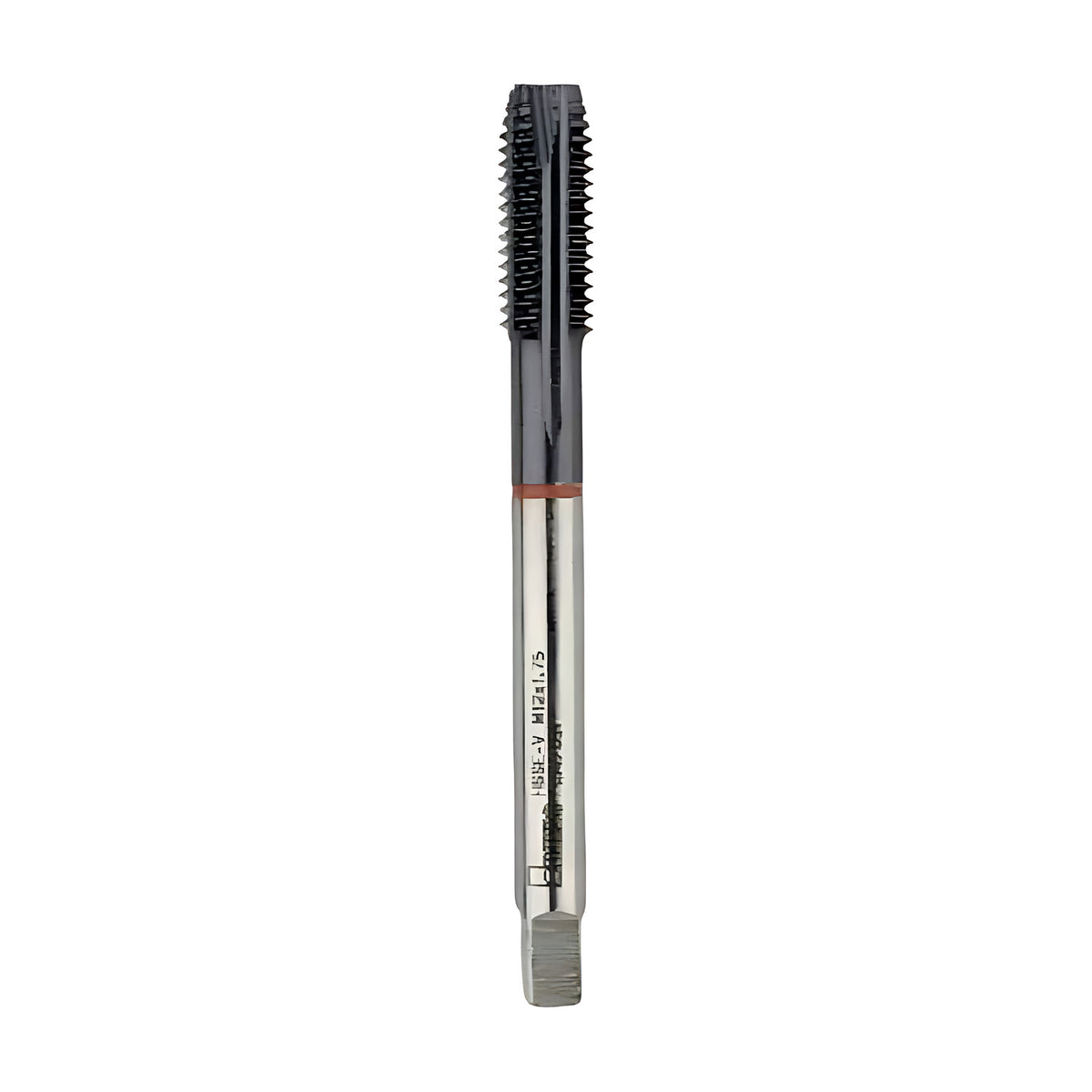

ordo HSSE-V3 TiAlN Coated Red Band Spiral Point Tap
- HSSE-V3 HSSE with 3% Vanadium high-performance tap.
- TiAlN (Titanium Aluminium Nitride) coating provides higher temperature resistance and improved surface hardness.
- Optimised for machining tough treatable steel.
- Spiral point, straight flute with angular cutting faces at the lead.
- Primarily designed for tapping through holes but can be used for blind holes provided there is ample clearance beyond the threaded section to accommodate the swarf.
- Designed to withstand the high stress and high heat associated with CNC production tapping.
- The mechanical properties of steel are influenced diversely by the addition of alloying elements and heat treatment processes, resulting in some high-strength, quenched, and tempered steels or hardened steels.
- TiAlN coating increases tool surface hardness to 87Rc.
- For machining materials with Hardness < 470 HB: Tensile Strength <1500 N/mm².
About Drill Bit Surface Treatment
- Violet / Grey TiAlN (Titanium Aluminium Nitride - TiAlN) A violet/grey finish with a higher hardness than both TiN and TiCN coating utilises aluminium in the coating which imparts greater oxidation stability.
- This stability is a result of a very thin film (of Aluminium Oxide) which is formed on the surface of the TiAlN.
- This film is self-repairing which leads to increased tool service life.This high-performance coating is able to withstand much higher temperatures which allows increased speeds and feeds and semi-dry machining operations.
- TiAlN coating is especially useful when machining cast iron and tough steels.
About Tough Treatable Steel Red Band
- The mechanical properties of materials are influenced diversely by the addition of alloying elements and heat treatment processes, resulting in some high-strength, quenched and tempered steels or hardened steels.
- This range has its own unique set of machining requirements which are satisfied by the Red Band Series.
- TiAlN coating increases tool surface hardness to 87Rc.
- For machining materials with Hardness.
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Bordo HSSE-V3 TiAlN Coated Red Band Spiral Point Tap
Bordo HSSE-V3 TiAlN Coated Red Band Spiral Point Tap
SKU: A0193990
Type: Spiral Point Tap
- Wide Range
- Reliable Services
- Proven Trust
Available
The Bordo HSSE-V3 TiAlN Coated Red Band Spiral Point Tap by Bordo is a Spiral Point Tap with a violet/grey TiAlN finish. It provides a surface hardness of 87Rc and is for machining materials with Hardness < 470 HB.
