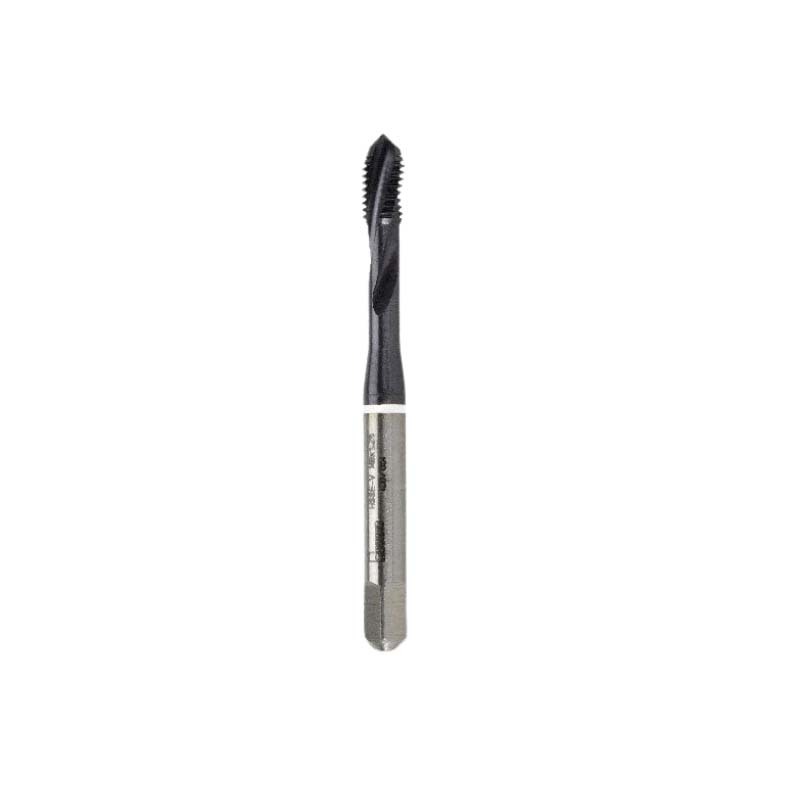

Bordo HSSE-V3 TiAlN Coated White Band Spiral Flute Tap
- HSSE-V3 HSSE with 3% Vanadium high performance tap.
- TiAlN (Titanium Aluminium Nitride) coating provides higher temperature resistance and improved surface hardness.
- Optimised for machining Cast Iron.
- Spiral flute with 15° helix angle.
- Designed for tapping blind holes where the right hand spiral forces swarf out of the hole and prevents clogging which may cause breakage or spoiled threads.
- Designed to withstand the high stress and high heat associated with CNC production tapping.
- Optimised material and geometry to manage the difficult and highly abrasive machining of cast iron.
- TiAlN coating increases tool surface hardness to 87Rc.
- For machining materials with Hardness < 300 HB : Tensile Strength <1000 N/mm².
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Bordo HSSE-V3 TiAlN Coated White Band Spiral Flute Tap
Bordo HSSE-V3 TiAlN Coated White Band Spiral Flute Tap
SKU: A0193242
Type: Spiral Flute Tap
- Wide Range
- Reliable Services
- Proven Trust
Available
The Bordo HSSE-V3 TiAlN Coated White Band Spiral Flute Tap by Bordo is a Spiral Flute Tap with TiAlN coating designed for tapping blind holes. It provides tool surface hardness of 87Rc and is suitable for machining cast iron.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
Bordo HSSE-V3 TiAlN Coated White Band Spiral Flute Tap
- HSSE-V3 HSSE with 3% Vanadium high performance tap.
- TiAlN (Titanium Aluminium Nitride) coating provides higher temperature resistance and improved surface hardness.
- Optimised for machining Cast Iron.
- Spiral flute with 15° helix angle.
- Designed for tapping blind holes where the right hand spiral forces swarf out of the hole and prevents clogging which may cause breakage or spoiled threads.
- Designed to withstand the high stress and high heat associated with CNC production tapping.
- Optimised material and geometry to manage the difficult and highly abrasive machining of cast iron.
- TiAlN coating increases tool surface hardness to 87Rc.
- For machining materials with Hardness < 300 HB : Tensile Strength <1000 N/mm².
