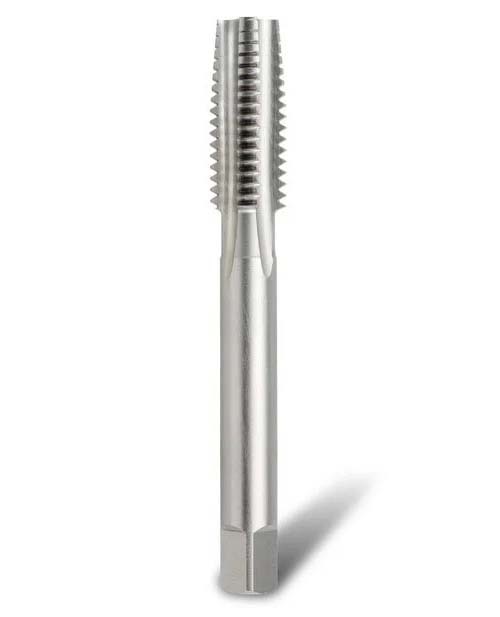

Bordo 1/4" x 26 TPI Left Hand BSF Taper
Available
The Bordo Left Hand BSF Taper Hand and Machine Tap - 3088 is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Size (mm) | 5.3 |
|---|---|
| Diameter (inch) | 1/4 |
| Pitch/TPI | 26 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 66 |
| Thread Form Type | BSF |
Product Features
- British Standard Fine thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter)
- The thread form was first introduced in 1908 and is specified in BS84:1956
- When used on external threads this series has greater tensile stress area than coarse threads of the same size
- HSS BSF LEFT HAND Taper Hand and Machine Tap
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Left Hand BSF Taper Hand and Machine Tap - 3088: 1/4
SKU: A0201891 | Model: 3088-1/4T
Diameter (inch) 1/4. Bordo Left Hand BSF Taper Hand and Machine Tap - 3088
HSS BSF LEFT HAND Taper Hand and Machine Tap.
British Standard Fine thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter).
The thread form was first introduced in 1908 and is specified in BS84:1956.
When used on external threads this series has greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About BSF (British Standard Fine)
This thread form was based upon the British Standard Whitworth (BSW) but has a finer thread (more threads per inch for a given diameter).
The thread form was first introduced in 1908 and is specified in BS84:1956.
When used on external threads this series has greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
