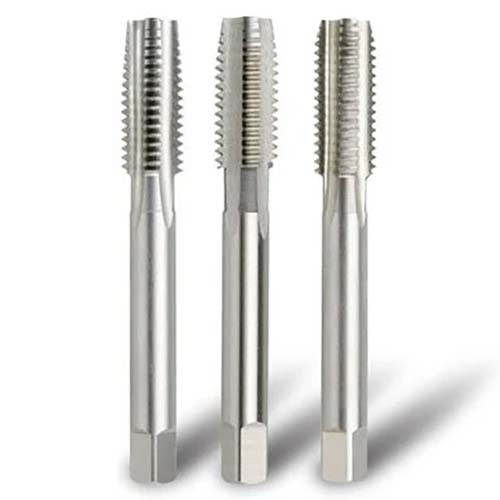

Bordo 3/4" x 10 TPI Left Hand BSW Tap Set
Available
The Bordo Left Hand BSW Tap Set Hand and Machine Tap - 3086 is part of Bordo's Australian range of tap sets, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Size (mm) | 5.1 |
|---|---|
| Diameter (inch) | 1/4 |
| Thread (TPI) | 20 |
| Surface Finish | Bright |
| Flute Type | Straight |
| Overall Length (OAL) mm | 66 |
| Thread Form Type | BSW |
Product Features
- This thread form was developed by Sir Joseph Whitworth in 1841
- The thread form has rounded roots and crests and is specified in BS84:1956
- HSS BSW LEFT HAND and Machine Tap Set
- British Standard Whitworth has a thread angle of 55 degrees as opposed to 60 degrees in Metric and Unified threads
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Left Hand BSW Tap Set Hand and Machine Tap - 3086: 3/4
SKU: A0201659 | Model: 3086-3/4TS
Diameter (inch) 3/4. Bordo Left Hand BSW Tap Set Hand and Machine Tap - 3086
HSS BSW Left Hand, Hand and Machine Tap Set.
British Standard Whitworth has a thread angle of 55 degrees as opposed to 60 degrees in Metric and Unified threads.
This thread form was developed by Sir Joseph Whitworth in 1841.
The thread form has rounded roots and crests and is specified in BS84:1956.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
BSW (British Standard Whitworth)
This thread form was developed by Sir Joseph Whitworth in 1841.
The thread form has rounded roots and crests and is specified in BS84:1956.
The thread angle for BSW is 55° as opposed to 60° in Metric and Unified threads.
