Bordo Left Hand MC HSS Hand and Machine Tap Set: 5

SKU: A0196128 | Model: 3080-5.00TS

This is the 5mm diameter option of the Bordo Left Hand MC HSS Hand and Machine Tap Set. Key details for this option: drill diameter 4.2mm, pitch 0.8mm.

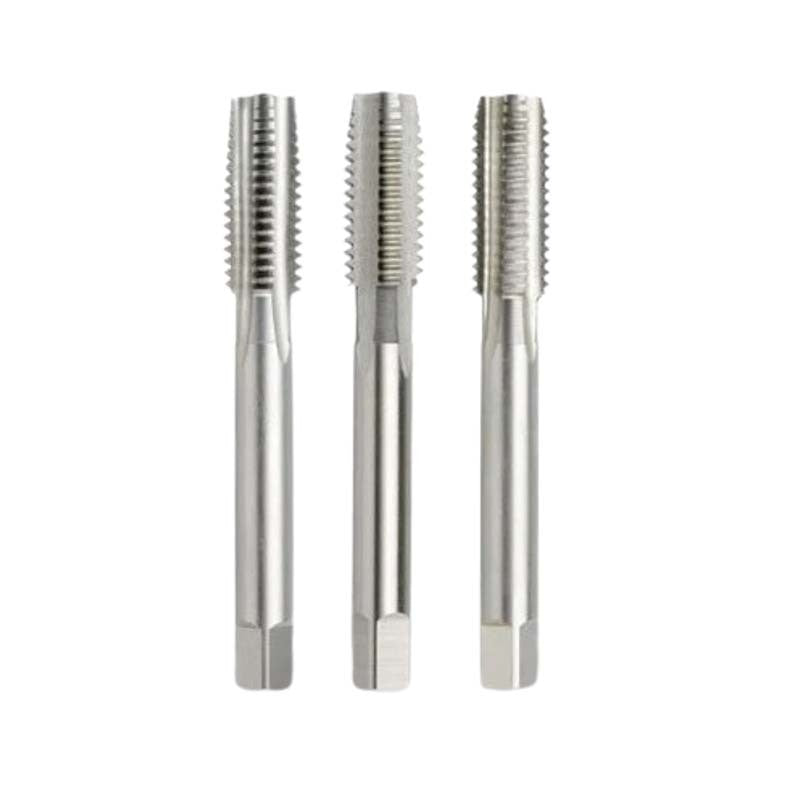

Bordo Left Hand MC HSS Hand and Machine Tap Set

HSS Metric Coarse LEFT HAND Hand and Machine Tap Set.

Metric Coarse angle of thread is 60 degrees.

The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.

Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.

The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).

Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.

Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.

Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.

About Metric Coarse & Fine

The angle of the thread is 60°.

The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.

A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.

The major diameter of the external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).

Available options
